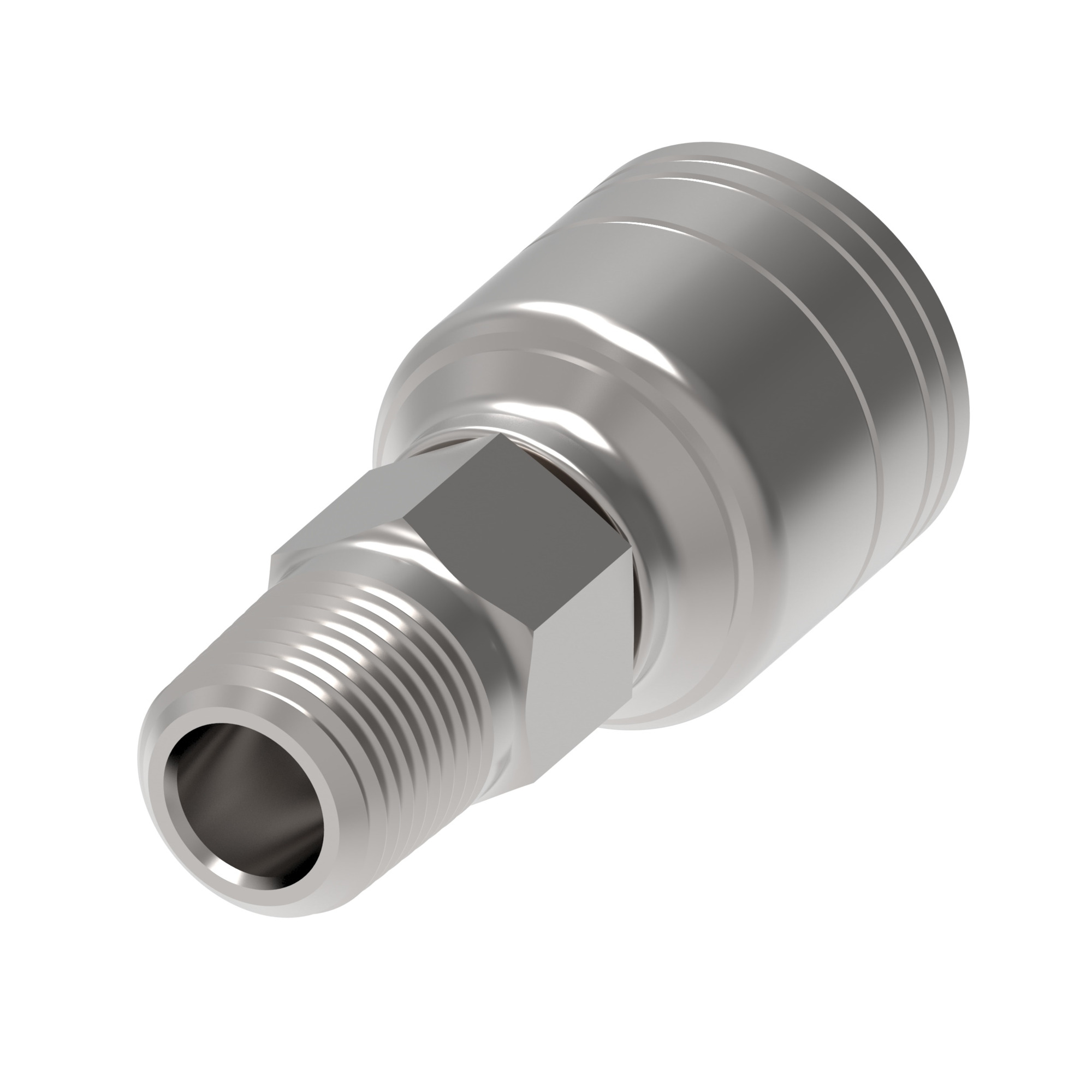

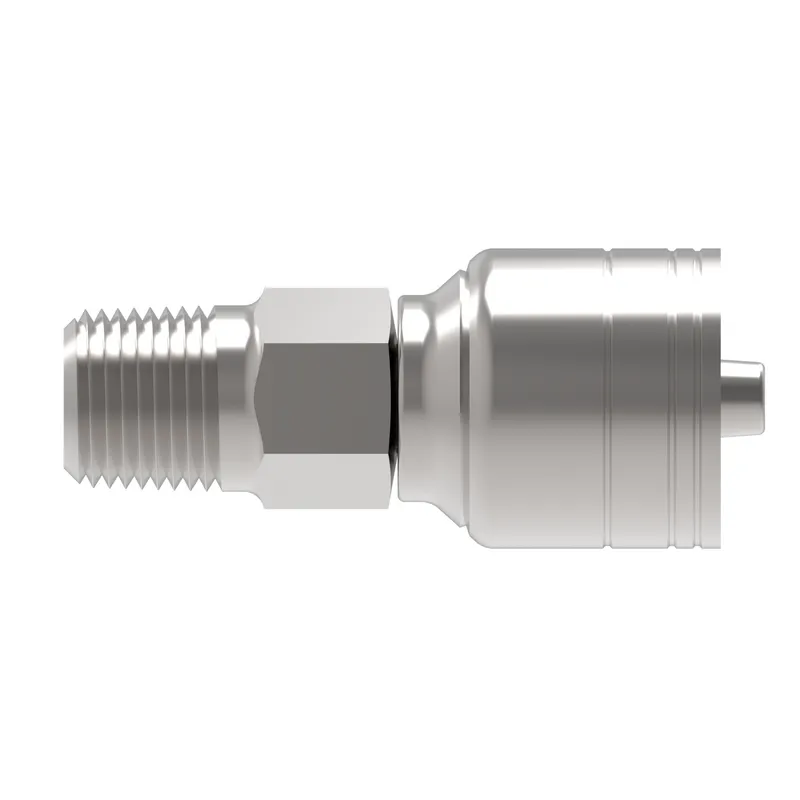

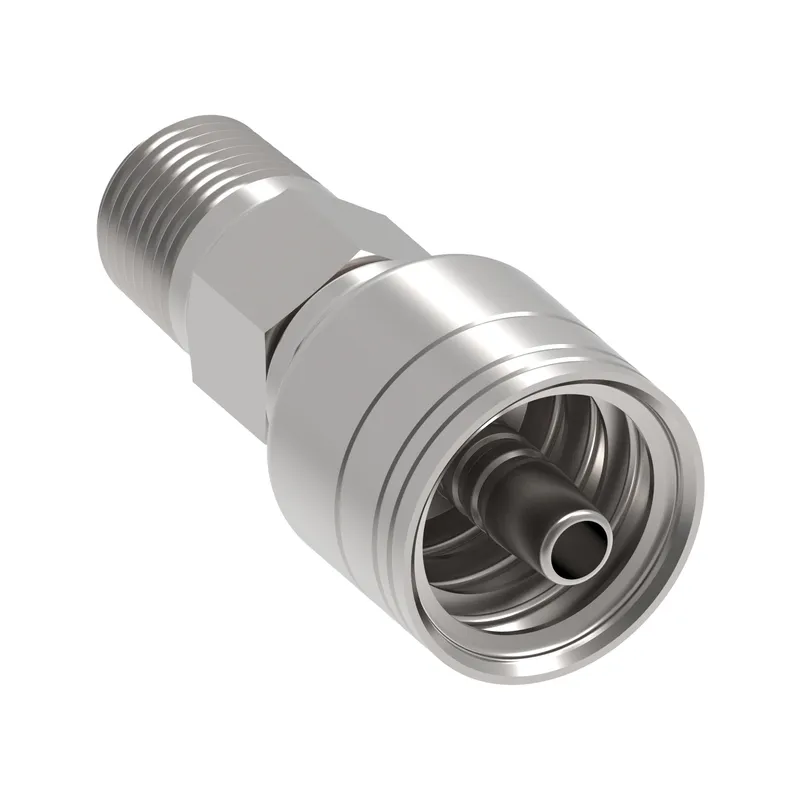

Danfoss 1AA24MP24

HOSE FTG, 1A/24, NPTF-M/24, CS, STR

MPN: 1AA24MP24
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA24MP24?

Danfoss HOSE FTG, 1A/24, NPTF-M/24, CS, STR, manufacturer part number 1AA24MP24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126344
A dimension IN	4.080
A dimension MM	103.700
Angle shape	Straight
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
End size 1	-24
End Type 1	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 2 MM	50.000
Hose cut off factor IN	2.360
Hose cut off factor MM	60.000
Hose size	-24
Inside diameter IN	1.260
Inside diameter MM	32.000
Product height in	2.700
Product height mm	68.580
Product length in	4.180
Product length mm	106.172
Product material	Carbon steel
Product width in	2.700
Product width mm	68.58
Series	1A/Z Series
Thread size 1	1 1/2-11 1/2 NPTF
Working pressure max BAR	207.00
Working pressure max PSI	3000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AA24MP24: frequently asked questions

When can 1AA24MP24 be shipped?

1AA24MP24 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA24MP24 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA24MP24 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA24MP24, subject to availability and destination.
