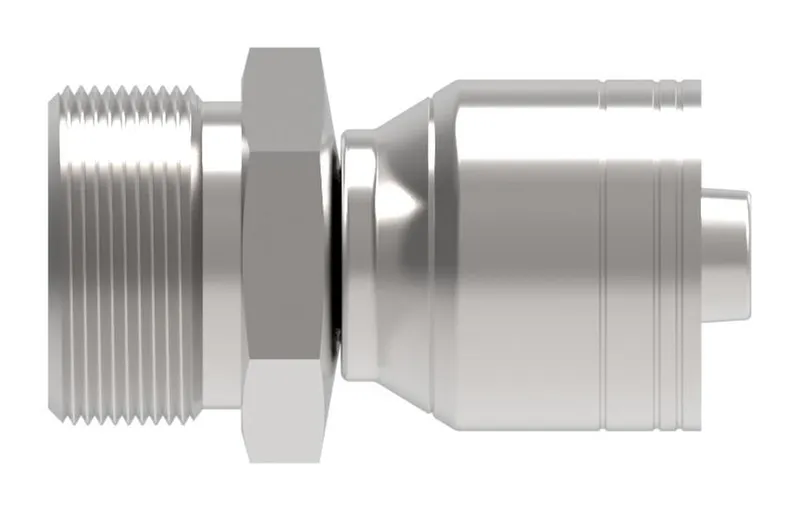

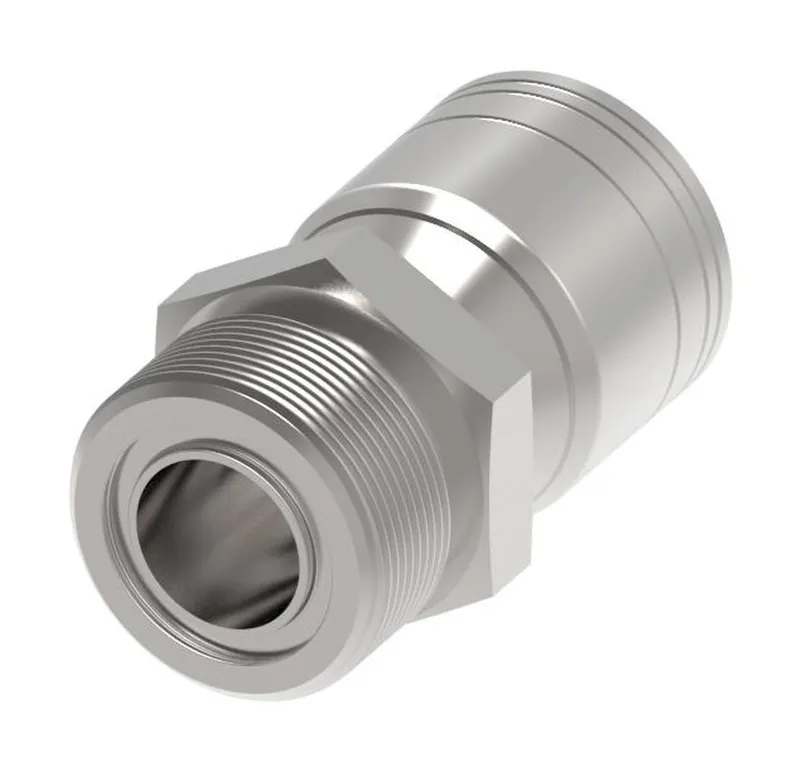

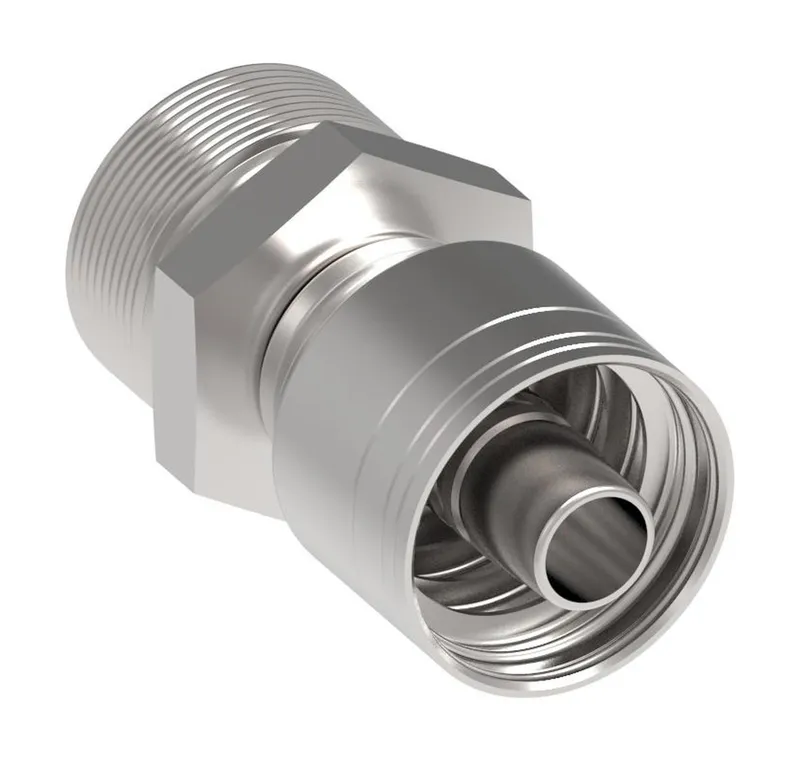

Danfoss 1AA20MR20

HOSE FTG, 1A/20, ORS-M/20, CS, STR

MPN: 1AA20MR20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA20MR20?

Danfoss HOSE FTG, 1A/20, ORS-M/20, CS, STR, manufacturer part number 1AA20MR20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146180742
A dimension IN	3.360
A dimension MM	85.300
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End connection torque	125-140 lb-ft(170-190 Nm)
End size 1	-20
End Type 1	Male ORFS
Finish plating	Dura-Kote
Hex size 2 MM	44.000
Hose cut off factor IN	1.800
Hose cut off factor MM	45.800
Hose size	-20
Inside diameter IN	1.030
Inside diameter MM	26.100
Product height in	2.410
Product height mm	61.214
Product length in	3.530
Product length mm	89.662
Product material	Carbon steel
Product width in	2.410
Product width mm	61.214
Series	1A/Z Series
Thread size 1	1 11/16-12 UN
Working pressure max BAR	310.00
Working pressure max PSI	4500.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
