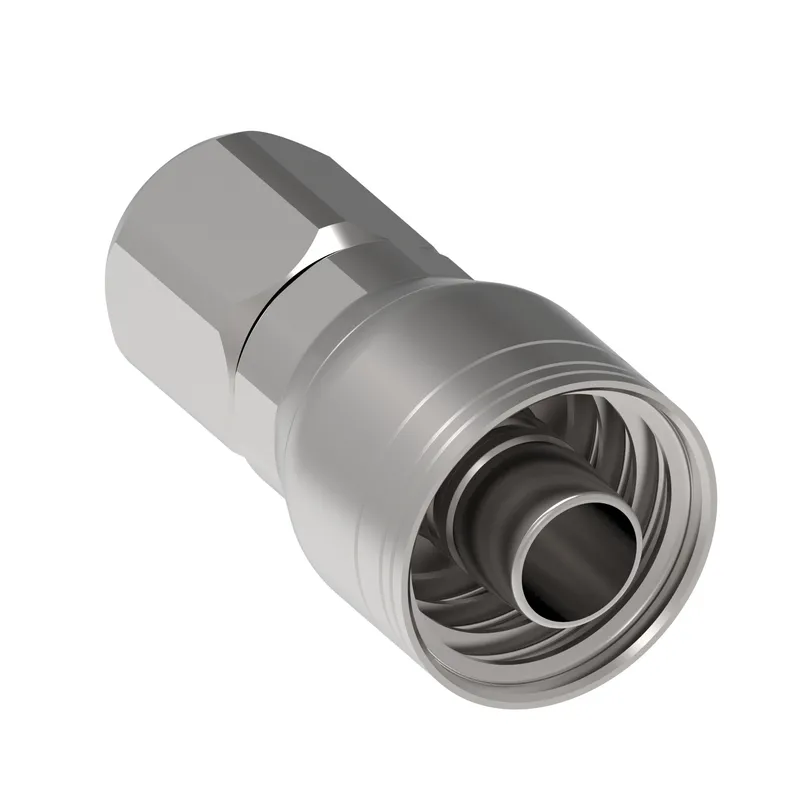

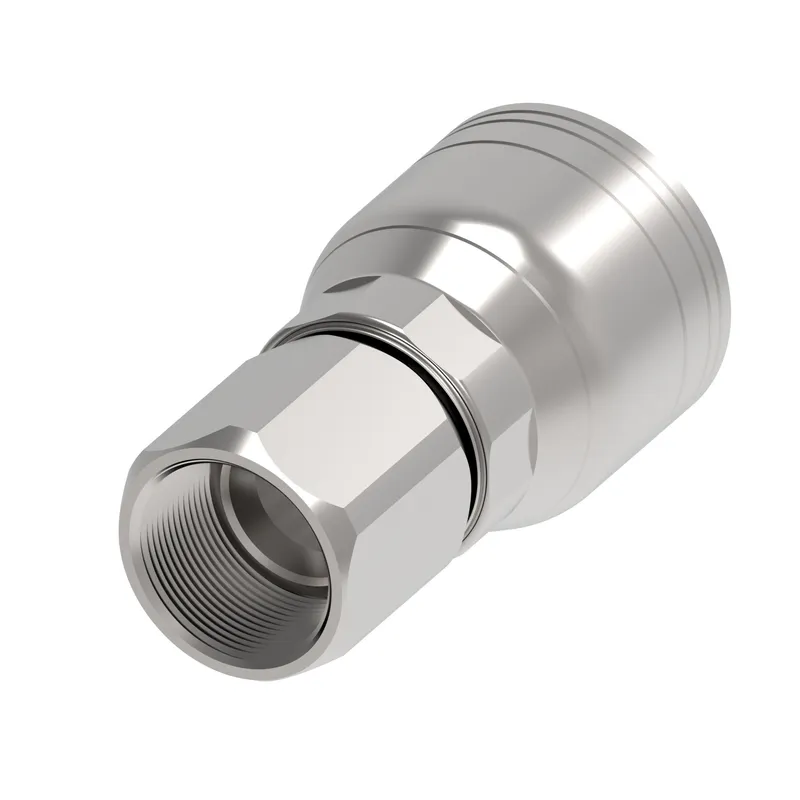

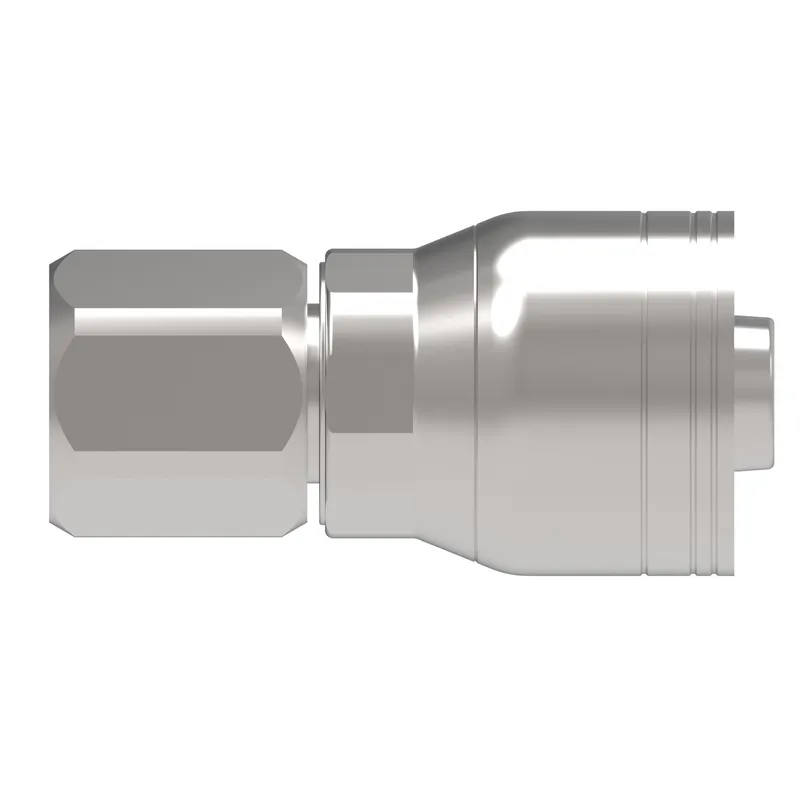

Danfoss 1AA4FJ4

HOSE FTG, 1A/04, JIC-F/04, CS, STR

MPN: 1AA4FJ4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA4FJ4?

Danfoss HOSE FTG, 1A/04, JIC-F/04, CS, STR, manufacturer part number 1AA4FJ4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126436
A dimension IN	1.920
A dimension MM	48.800
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End connection torque	11-12 lb-ft(15-16 Nm)
End size 1	-4
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.551
Hex size 1 MM	14.000
Hex size 2 IN	0.551
Hex size 2 MM	14.000
Hose cut off factor IN	1.080
Hose cut off factor MM	27.300
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.880
Product height mm	22.352
Product length in	2.040
Product length mm	51.816
Product material	Carbon steel
Product width in	0.880
Product width mm	22.352
Series	1A/Z Series
Thread size 1	7/16-20 UNF
Working pressure max BAR	450.00
Working pressure max PSI	6550.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
