Danfoss 1AV20MP20

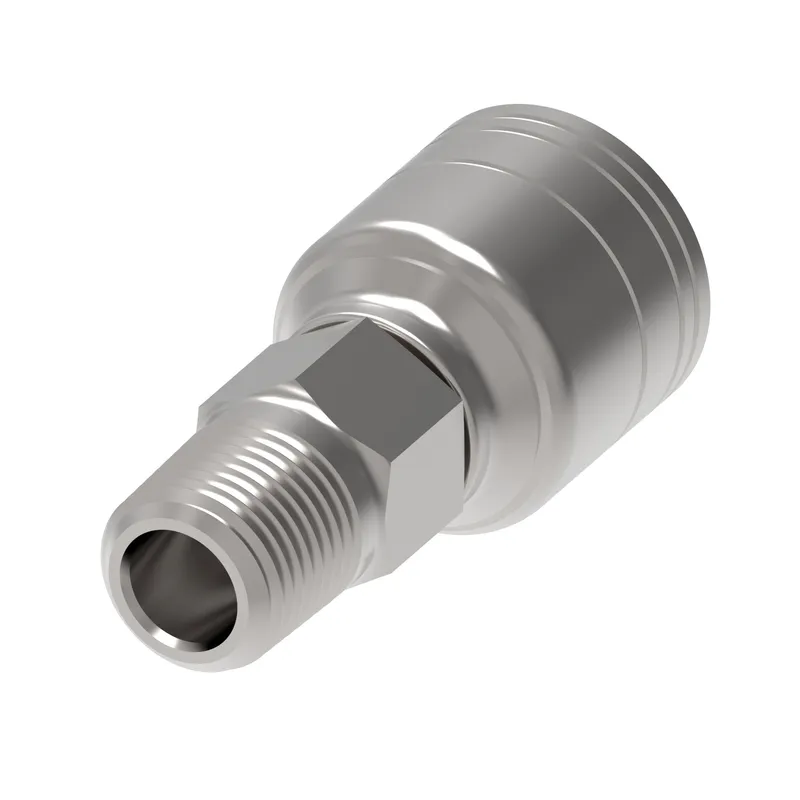

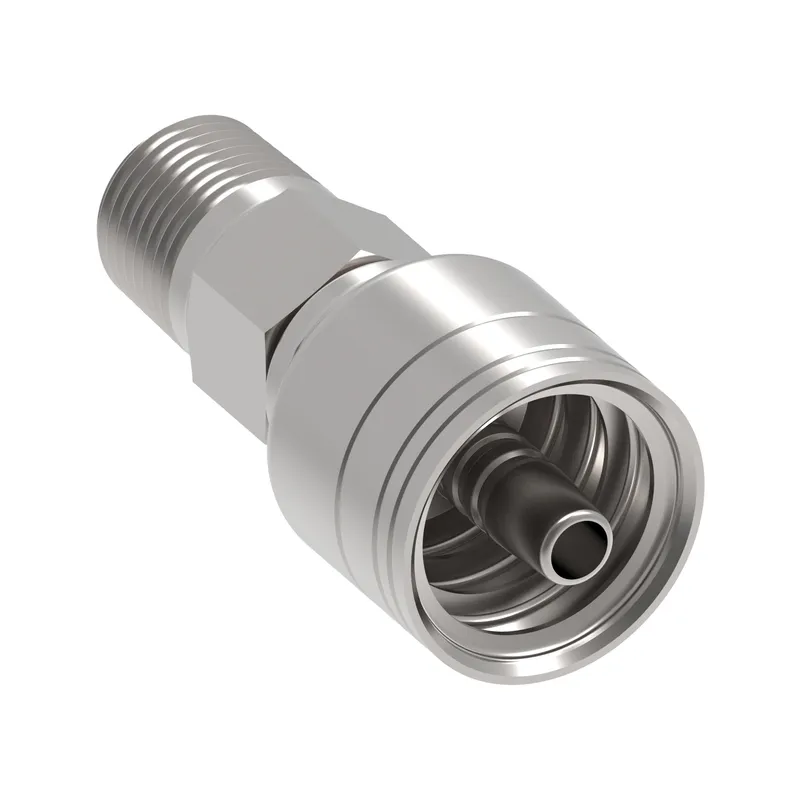

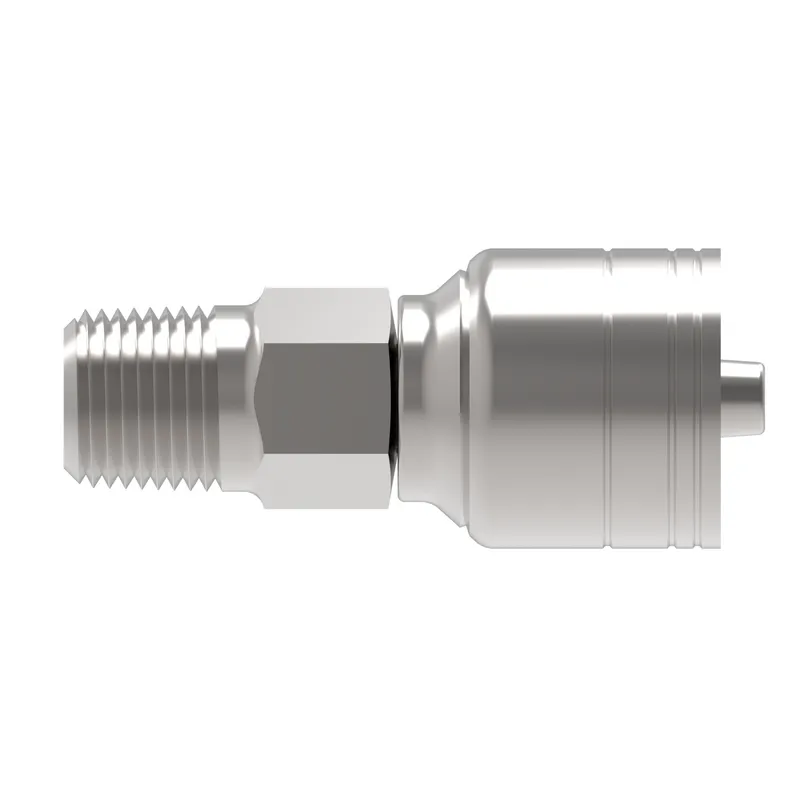

HOSE FTG, 1A/20, NPTF-M/20, CS, STR

MPN: 1AV20MP20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AV20MP20?

Danfoss HOSE FTG, 1A/20, NPTF-M/20, CS, STR, manufacturer part number 1AV20MP20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146128478
A dimension IN	3.340
A dimension MM	84.900
Angle shape	Straight
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Compatible tube OD IN	1.50
Compatible tube OD MM	38.100
Construction Style	Crimp
Drop dimension IN	1.790
Drop dimension MM	45.40
End size 1	-20
End Type 1	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 1 IN	0.810
Hex size 1 MM	20.574
Hose cut off factor IN	1.790
Hose cut off factor MM	45.466
Hose size	-20
Inside diameter IN	1.050
Inside diameter MM	26.670
Product height in	2.410
Product height mm	61.214
Product length in	3.340
Product length mm	84.836
Product material	Carbon steel
Product width in	2.410
Product width mm	61.214
Series	1A/Z Series
Thread sealant	No
Thread size 1	1 1/4-11 1/2 NPTF
Tube OD 1 IN	1.500
Tube OD 1 MM	38.100
Working pressure max BAR	207.00
Working pressure max PSI	3000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
