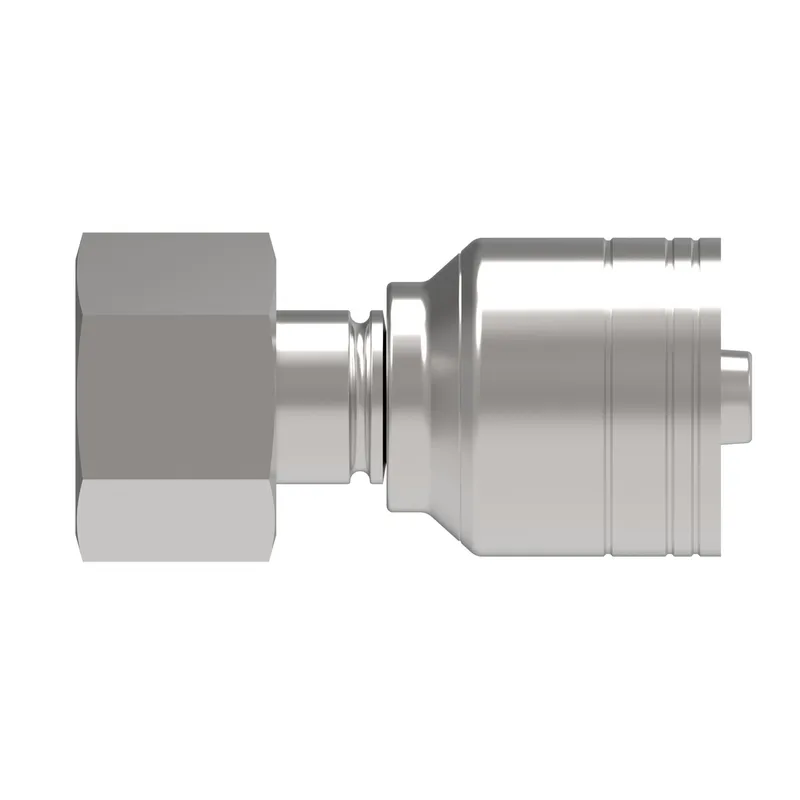

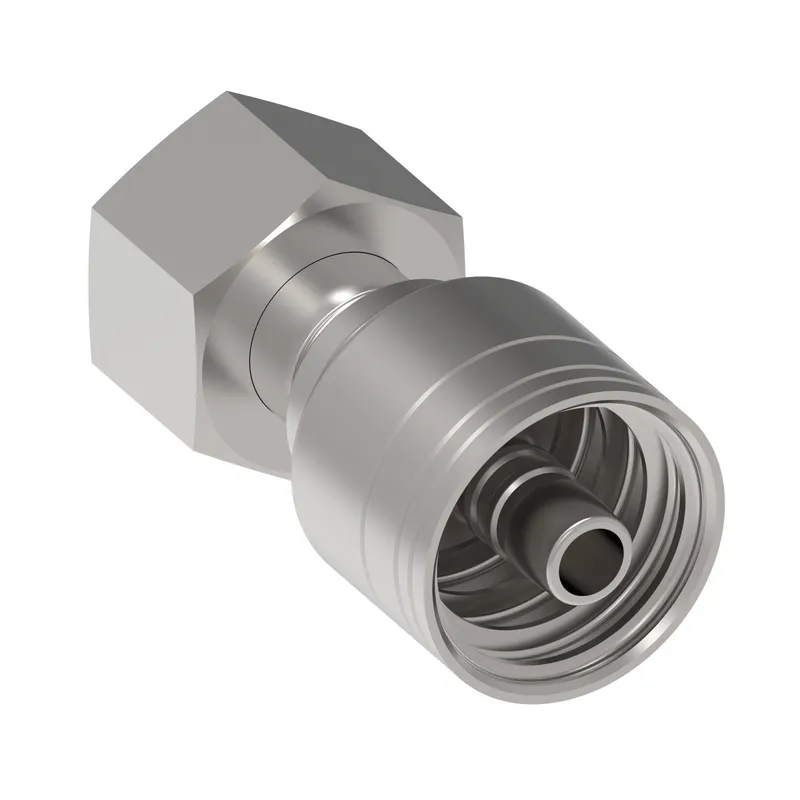

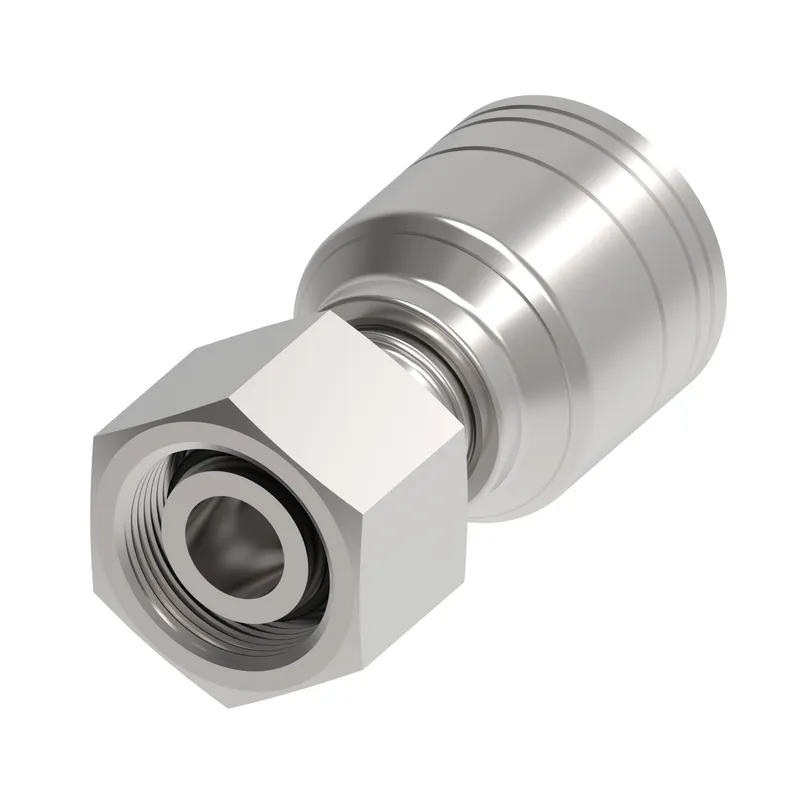

Danfoss 1AT32DL20

HOSE FTG, 1A/20, DKOL/32, CS, STR

MPN: 1AT32DL20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AT32DL20?

Danfoss HOSE FTG, 1A/20, DKOL/32, CS, STR, manufacturer part number 1AT32DL20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146128317
A dimension IN	3.300
A dimension MM	83.700
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End size 1	-32
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hose cut off factor IN	1.560
Hose cut off factor MM	39.700
Hose size	-20
Inside diameter IN	1.050
Inside diameter MM	26.600
Product height in	2.120
Product height mm	53.848
Product length in	3.290
Product length mm	83.566
Product material	Carbon steel
Product width in	2.120
Product width mm	53.848
Series	1A/Z Series
Thread size 1	M45x2
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
