Danfoss 1AV20FJ20C

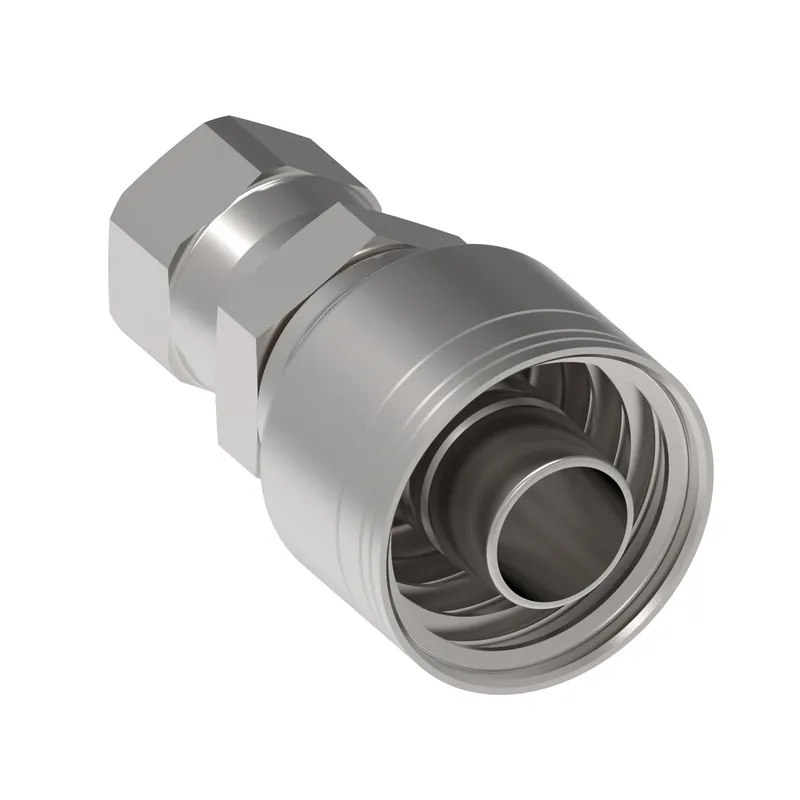

HOSE FTG, 1A/20, JIC-F/20, AP, STR

MPN: 1AV20FJ20C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AV20FJ20C?

Danfoss HOSE FTG, 1A/20, JIC-F/20, AP, STR, manufacturer part number 1AV20FJ20C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146128379
A dimension IN	3.440
A dimension MM	87.300
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End connection torque	127-133 lb-ft(173-182 Nm)
End size 1	-20
End Type 1	Female 37 degree swivel
Hex size 1 IN	2.000
Hex size 1 MM	50.800
Hose cut off factor IN	1.880
Hose cut off factor MM	47.800
Hose size	-20
Inside diameter IN	1.050
Inside diameter MM	26.600
Product height in	2.410
Product height mm	61.214
Product length in	3.610
Product length mm	91.694
Product material	316 Stainless steel
Product width in	2.410
Product width mm	61.214
Series	1A/Z Series
Thread sealant	No
Thread size 1	1 5/8-12 UN
Working pressure max BAR	172.00
Working pressure max PSI	2500.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AV20FJ20C: frequently asked questions

When can 1AV20FJ20C be shipped?

1AV20FJ20C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AV20FJ20C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AV20FJ20C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AV20FJ20C, subject to availability and destination.
