Braided hose and fittings Parts

Danfoss

1AA8MJ6

HOSE FTG, 1A/06, JIC-M/08, CS, STR

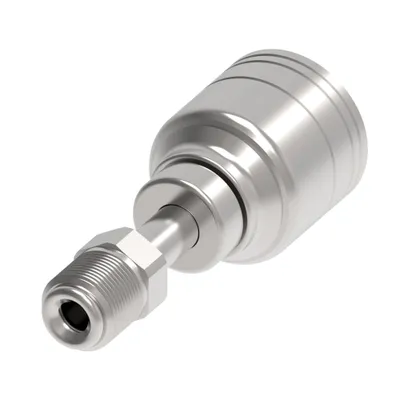

Danfoss

1AA8MF8

HOSE FTG, 1A/08, INVF-M/08, CS, STR

Danfoss

1AA8MB8

HOSE FTG, 1A/08, ORB-M/08, CS, STR

Danfoss

1AA8FS8

HOSE FTG, 1A/08, FS/08, CS, STR

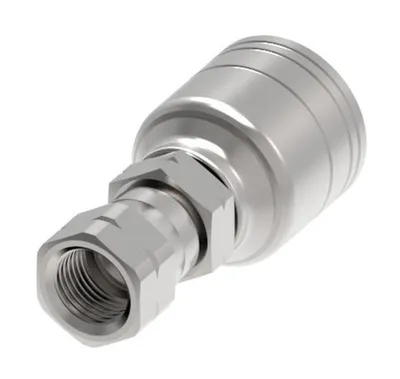

Danfoss

1AA8FS6

HOSE FTG, 1A/06, FS/08, CS, STR

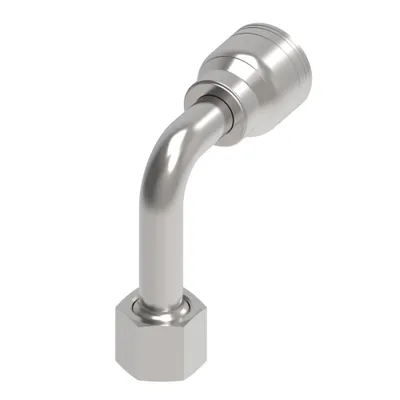

Danfoss

1AA8FRC8

HOSE FTG, 1A/08, ORS-F/08, CS, 90D

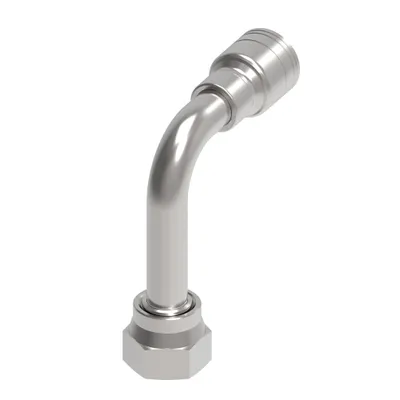

Danfoss

1AA8FRC6

HOSE FTG, 1A/06, ORS-F/08, CS, 90D

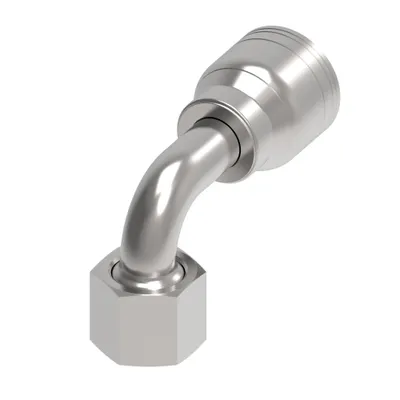

Danfoss

1AA8FRB8

HOSE FTG, 1A/08, ORS-F/08, CS, 90D

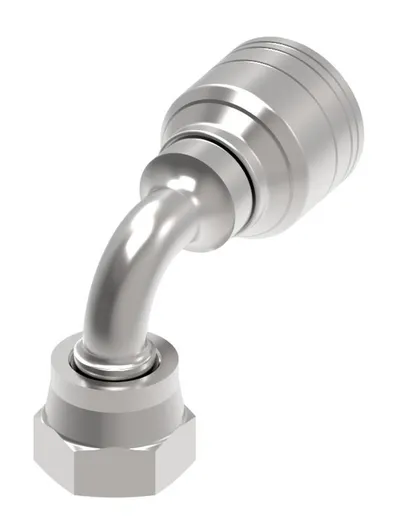

Danfoss

1AA8FRB6

HOSE FTG, 1A/06, ORS-F/08, CS, 90D

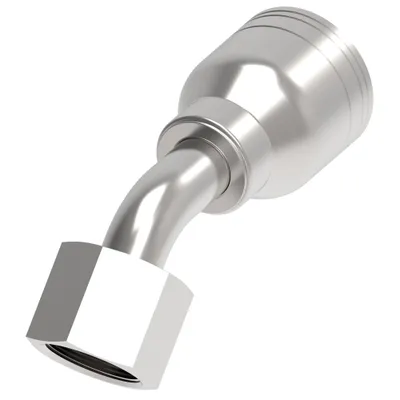

Danfoss

1AA8FRA8

HOSE FTG, 1A/08, ORS-F/08, CS, 45D

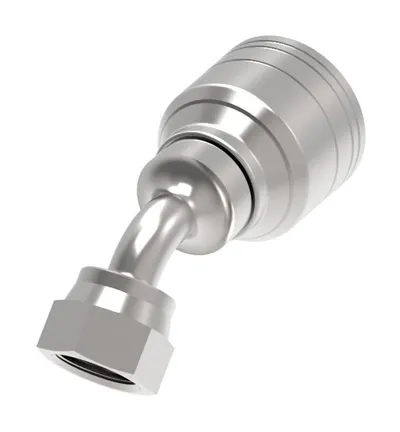

Danfoss

1AA8FRA6

HOSE FTG, 1A/06, ORS-F/08, CS, 45D

Danfoss

1AA8FR8

HOSE FTG, 1A/08, ORS-F/08, CS, STR

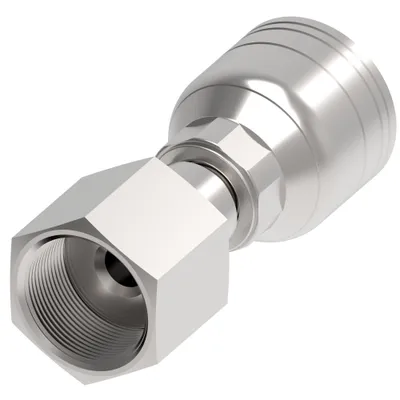

Danfoss

1AA8FR6

HOSE FTG, 1A/06, ORS-F/08, CS, STR

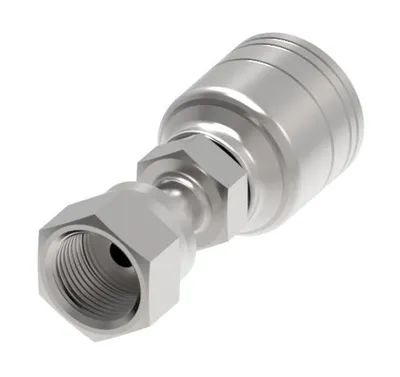

Danfoss

1AA8FR10

HOSE FTG, 1A/10, ORS-F/08, CS, STR

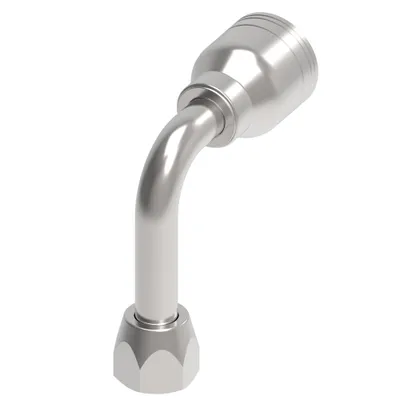

Danfoss

1AA8FJC8

HOSE FTG, 1A/08, JIC-F/08, CS, 90D

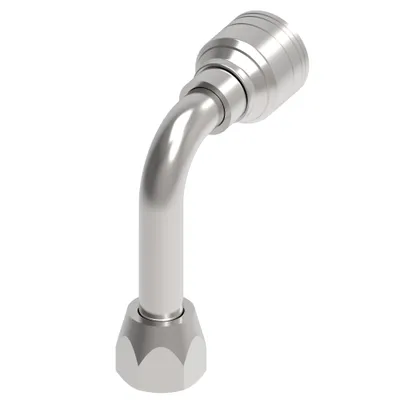

Danfoss

1AA8FJC6

HOSE FTG, 1A/06, JIC-F/08, CS, 90D

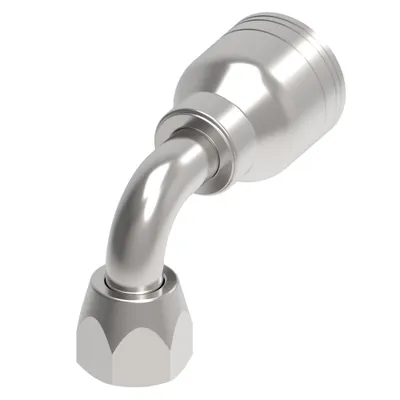

Danfoss

1AA8FJB8C

HOSE FTG, 1A/08, JIC-F/08, AP, 90D

Danfoss

1AA8FJB8

HOSE FTG, 1A/08, JIC-F/08, CS, 90D

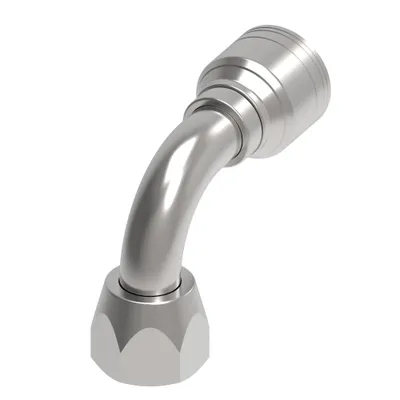

Danfoss

1AA8FJB6

HOSE FTG, 1A/06, JIC-F/08, CS, 90D

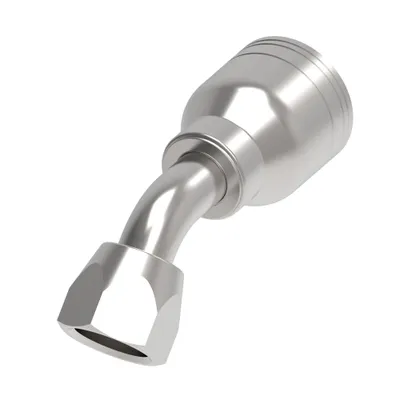

Danfoss

1AA8FJA8

HOSE FTG, 1A/08, JIC-F/08, CS, 45D

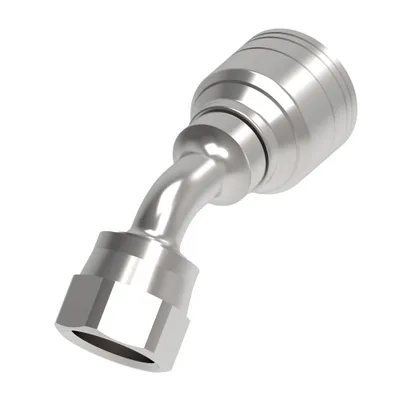

Danfoss

1AA8FJA6

HOSE FTG, 1A/06, JIC-F/08, CS, 45D

Danfoss

1AA8FJ8C

HOSE FTG, 1A/08, JIC-F/08, AP, STR

Danfoss

1AA8FJ8

HOSE FTG, 1A/08, JIC-F/08, CS, STR

Danfoss

1AA8FJ6C

HOSE FTG, 1A/06, JIC-F/08, AP, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	A dimension IN	A dimension MM	Product length in	Product length mm
1AA8MJ6	678146127914	1.940	49.400	2.100	53.340
1AA8MF8	678146127877	2.630	66.700	2.790	70.866
1AA8MB8	678146127860	2.190	55.600	2.360	59.944
1AA8FS8	678146127846	2.460	62.500	2.630	66.802
1AA8FS6	678146170064	2.150	54.600	2.300	58.420
1AA8FRC8	678146127839	2.810	71.400	3.730	94.742
1AA8FRC6	678146127822	2.460	62.500	3.130	79.502
1AA8FRB8	678146127815	2.810	71.400	3.730	94.742
1AA8FRB6	678146127808	2.460	62.500	3.080	78.232
1AA8FRA8	678146127792	2.930	74.500	4.280	108.712
1AA8FRA6	678146127785	2.580	65.600	2.740	69.596
1AA8FR8	678146127778	2.550	64.700	3.160	80.264
1AA8FR6	678146127761	2.140	54.400	2.750	69.850
1AA8FR10	678146127747	2.540	64.400	3.090	78.486
1AA8FJC8	678146045140	2.710	68.900	3.570	90.678
1AA8FJC6	678146127723	2.380	60.500	2.960	75.184
1AA8FJB8C	—	2.670	67.900	3.300	83.820
1AA8FJB8	678146127716	2.580	65.500	2.590	65.786
1AA8FJB6	678146127709	2.260	57.400	2.850	72.390
1AA8FJA8	678146127693	2.810	71.300	4.130	104.902
1AA8FJA6	678146127686	2.500	63.400	3.520	89.408
1AA8FJ8C	678146127679	2.460	62.500	2.630	66.802
1AA8FJ8	678146127662	2.490	63.200	2.670	67.818
1AA8FJ6C	678146127655	2.150	54.600	2.290	58.166

Common to all listed parts

Construction Style	Crimp
End size 1	-8
Series	1A/Z Series
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
