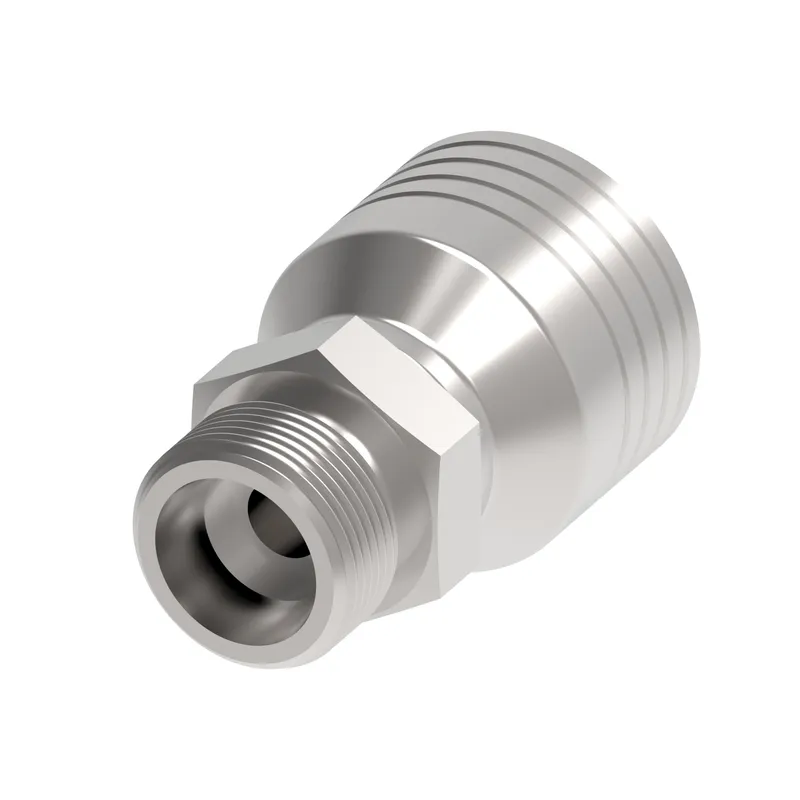

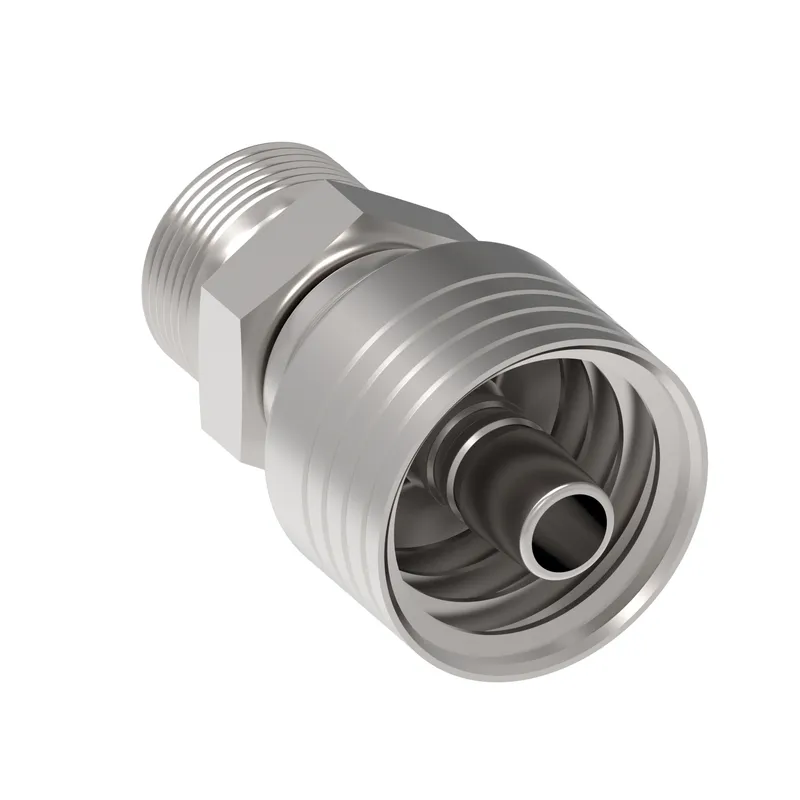

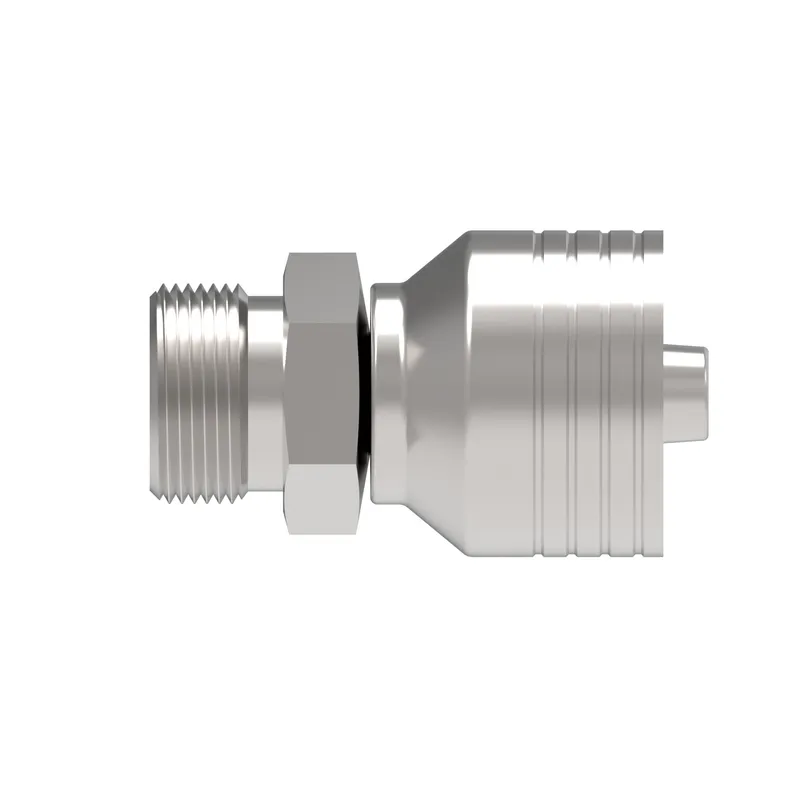

Danfoss 1B16EK10

HOSE NIPPLE ASSY,4S/10,DKH-M/10,CS,STR

MPN: 1B16EK10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1B16EK10?

Danfoss HOSE NIPPLE ASSY,4S/10,DKH-M/10,CS,STR, manufacturer part number 1B16EK10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146128928
A dimension IN	2.440
A dimension MM	62.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Compatible hoses	2661 (Size dependent), FC136, FC318 (Size dependent), FC616, FC636, FC659, FC736, GH493
Compatible tube OD IN	1.00
Compatible tube OD MM	25.400
Construction Style	Crimp
End size 1	-10
End Type 1	24 deg. tube port heavy duty
Finish plating	Zinc plating
Hex size 1 IN	1.260
Hex size 1 MM	32.004
Hose cut off factor IN	1.290
Hose cut off factor MM	32.700
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.800
Product height in	1.481
Product height mm	37.617
Product length in	2.441
Product length mm	62.001
Product material	Carbon steel
Product width in	1.481
Product width mm	37.617
Series	B Series
Thread sealant	No
Thread size 1	M30x2
Tube OD 1 IN	1.000
Tube OD 1 MM	25.400
Working pressure max BAR	250.00
Working pressure max PSI	3650.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
