Danfoss 1AT32DLB20

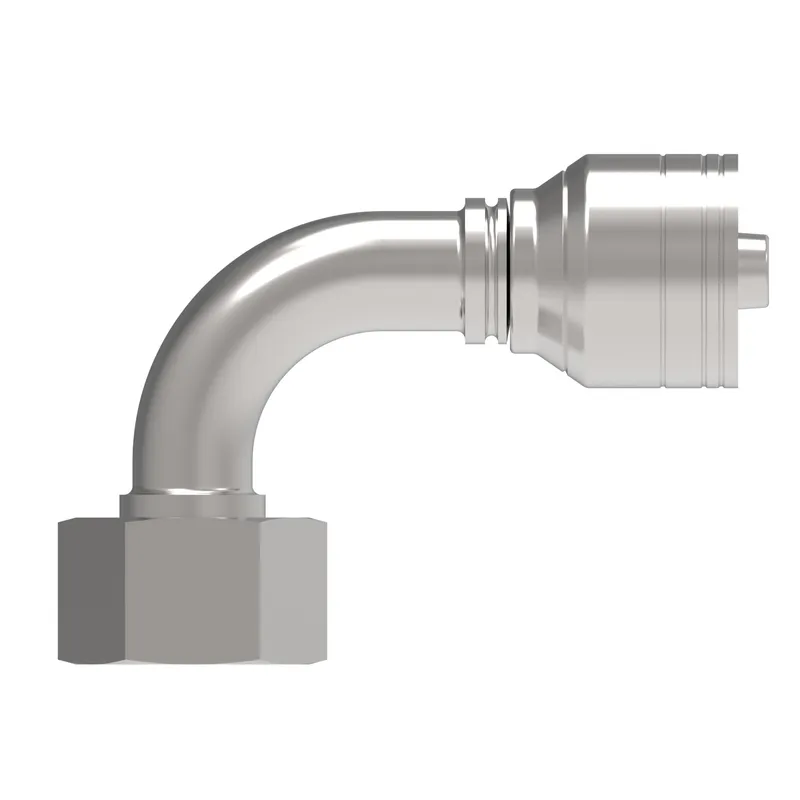

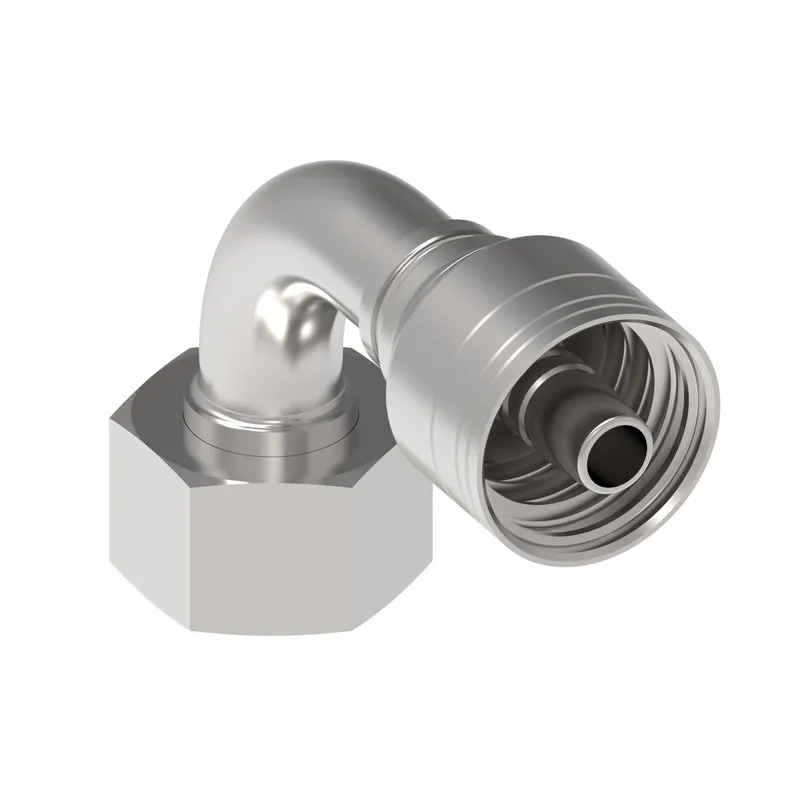

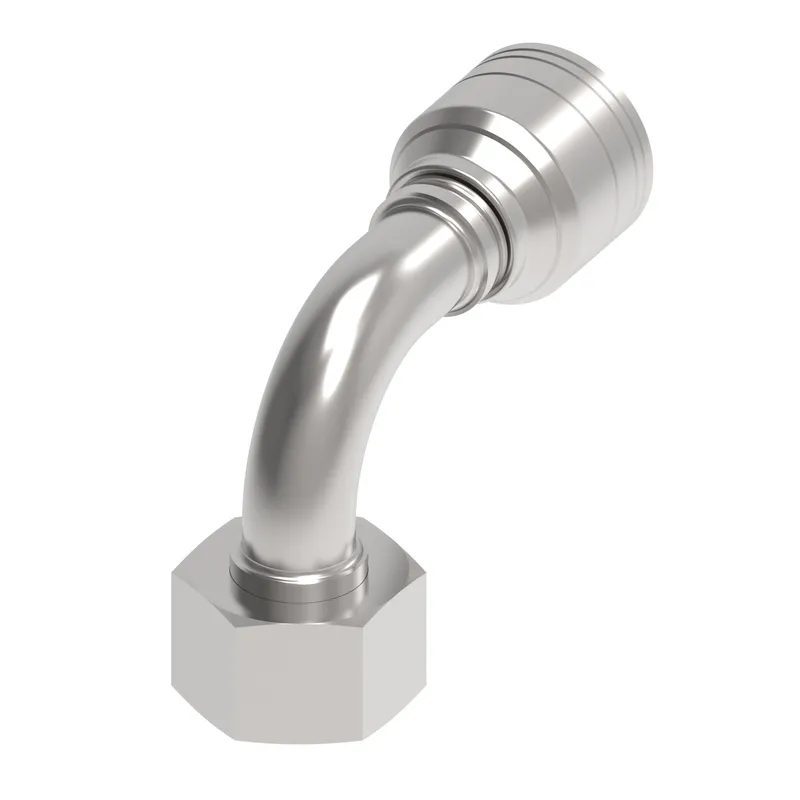

HOSE FTG, 1A/20, DKOL/32, CS, 90D

MPN: 1AT32DLB20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AT32DLB20?

Danfoss HOSE FTG, 1A/20, DKOL/32, CS, 90D, manufacturer part number 1AT32DLB20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146128324
A dimension IN	5.120
A dimension MM	130.000
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
Drop dimension IN	2.990
Drop dimension MM	75.95
End size 1	-32
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	1.970
Hex size 1 MM	50.038
Hex size 2 IN	0.000
Hose cut off factor IN	2.950
Hose cut off factor MM	74.930
Hose size	-20
Inside diameter IN	1.050
Inside diameter MM	26.670
Product height in	3.110
Product height mm	78.994
Product length in	5.120
Product length mm	130.048
Product material	Carbon steel
Product width in	2.120
Product width mm	53.848
Series	1A/Z Series
Thread sealant	No
Thread size 1	M45x2
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
