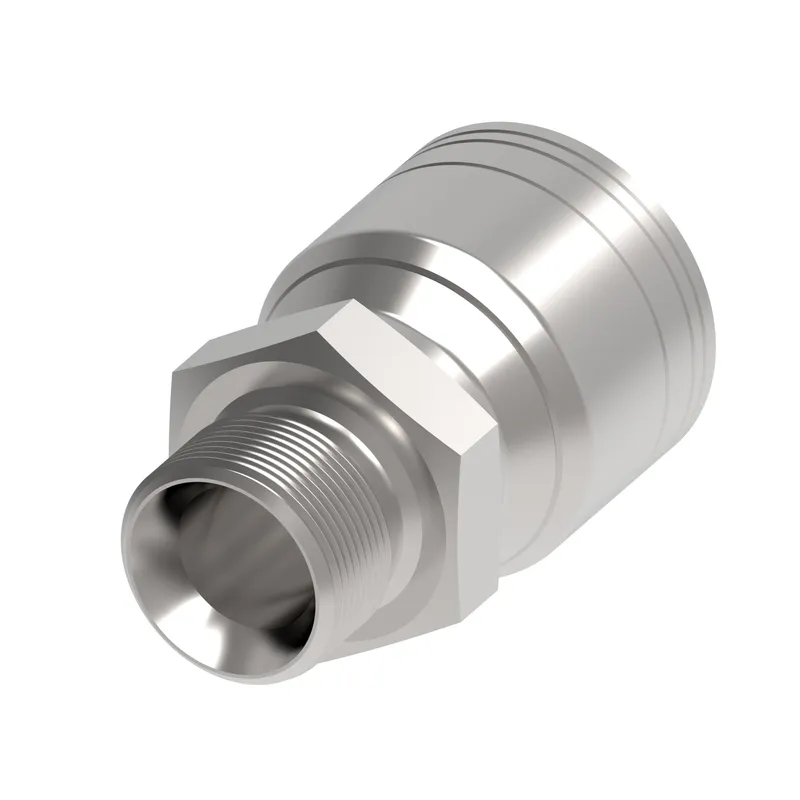

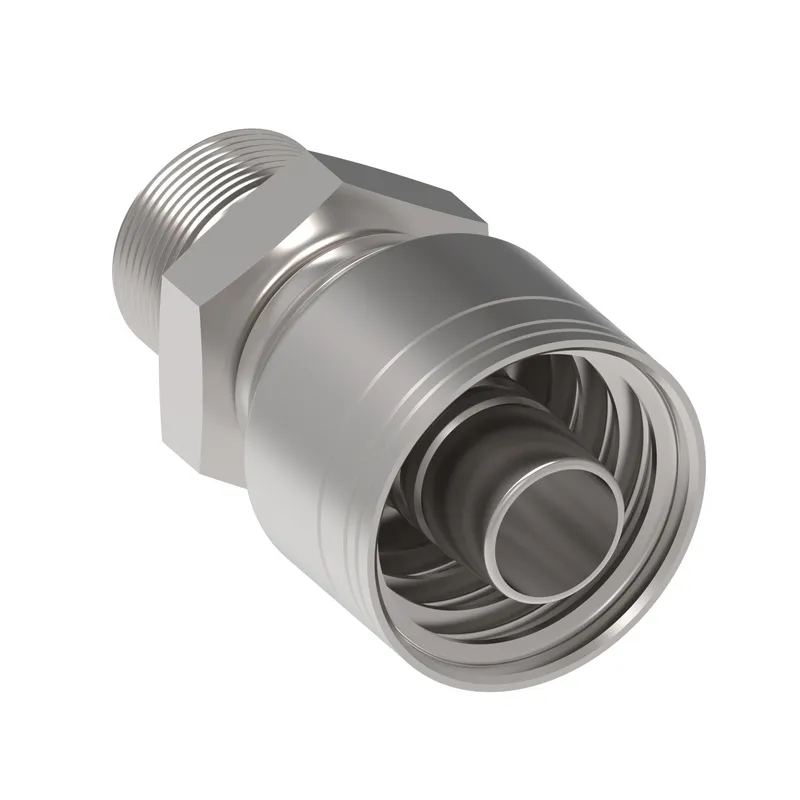

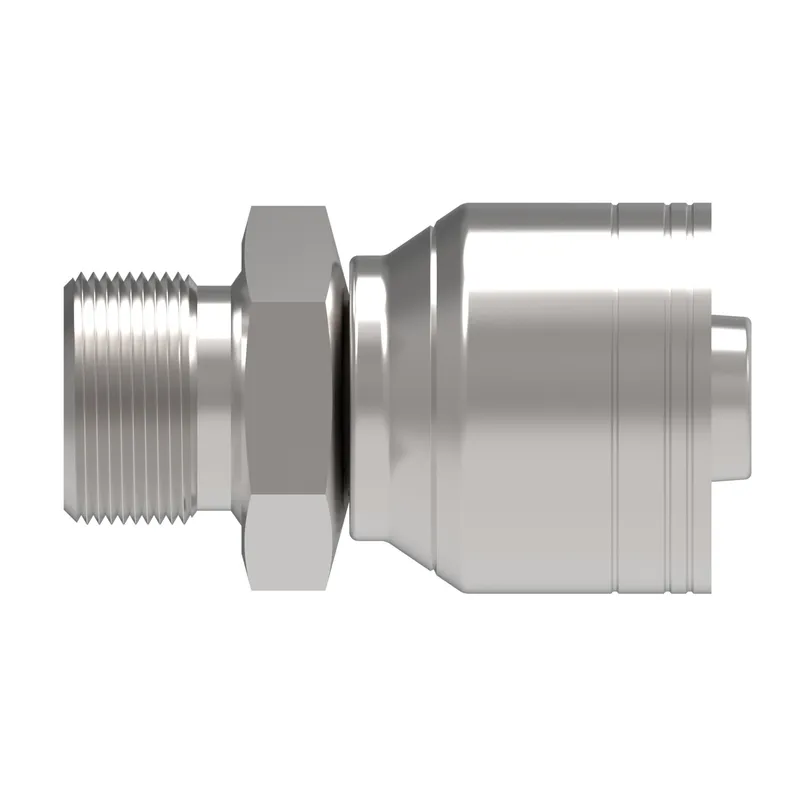

Danfoss 1AT20BP20

HOSE FTG, 1A/20, BSPJ/20, CS, STR

MPN: 1AT20BP20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AT20BP20?

Danfoss HOSE FTG, 1A/20, BSPJ/20, CS, STR, manufacturer part number 1AT20BP20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146170323
A dimension IN	3.390
A dimension MM	86.200
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End size 1	-20
End Type 1	Male BSPP 60 degree cone
Finish plating	Dura-Kote
Hex size 1 IN	1.970
Hex size 1 MM	50.038
Hose cut off factor IN	1.660
Hose cut off factor MM	42.164
Hose size	-20
Inside diameter IN	1.050
Inside diameter MM	26.600
Product height in	2.410
Product height mm	61.214
Product length in	3.390
Product length mm	86.106
Product material	Carbon steel
Product width in	2.410
Product width mm	61.214
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 1/4
Working pressure max BAR	172
Working pressure max PSI	2500
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
