Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension MM | Hose cut off factor MM | Product height mm | Product length in | Product length mm |
|---|---|---|---|---|---|

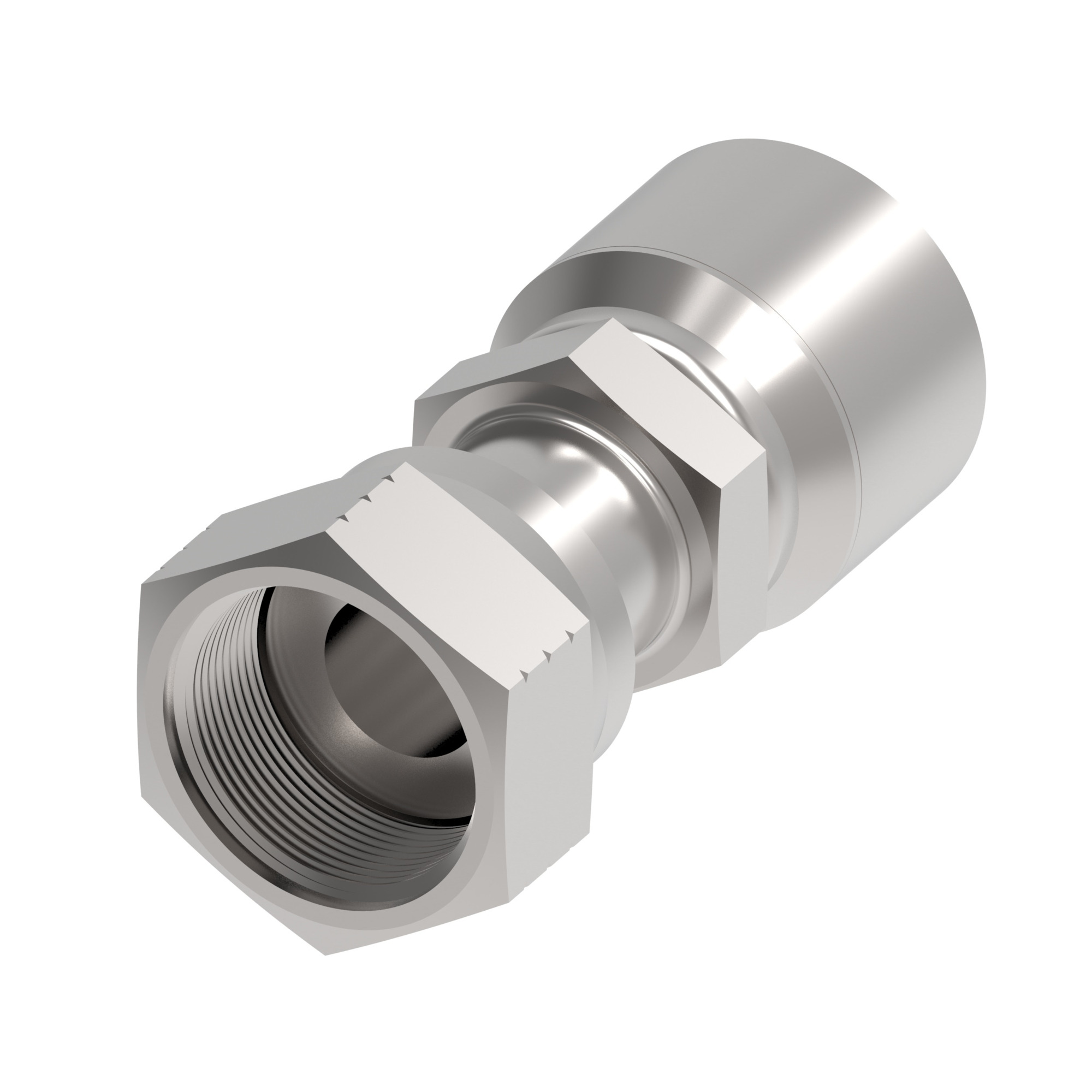

| 1G8FR8TY | 61.800 | 38.100 | 24.892 | 2.670 | 67.818 |
| 1G8FR6 | 53.900 | 44.450 | 23.978 | 2.120 | 53.848 |

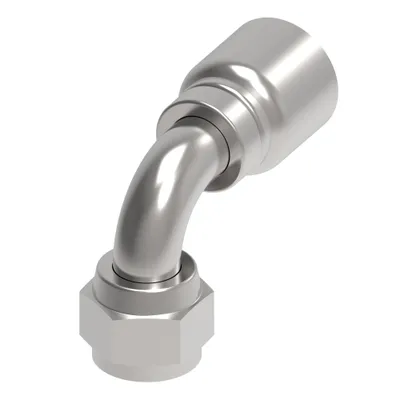

| 1G8FJB8 | 65.800 | 36.000 | 41.379 | 3.024 | 76.799 |

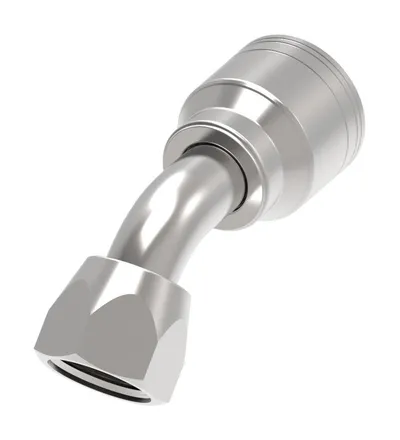

| 1G8FJA6 | 67.400 | 42.100 | 25.001 | 3.087 | 78.400 |
| 1G8FJ8 | 60.700 | 37.000 | 27.371 | 2.621 | 66.571 |

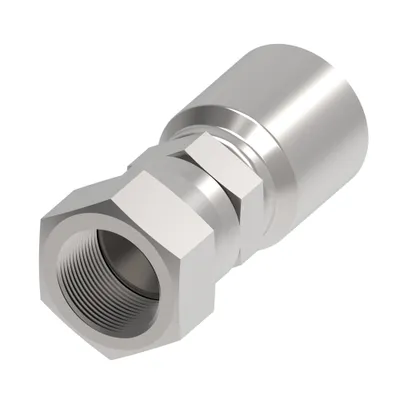

| 1G8FJ6 | 53.600 | 33.300 | 25.400 | 2.377 | 60.371 |
| 1G8DLB6 | 58.500 | 33.200 | 45.565 | 2.677 | 68.001 |

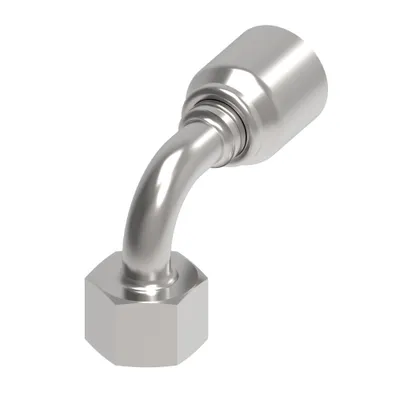

| 1G8DLB5 | 55.300 | 31.400 | 45.900 | 2.551 | 64.800 |
| 1G8DLA6 | 66.800 | 41.500 | 39.370 | 3.000 | 76.200 |

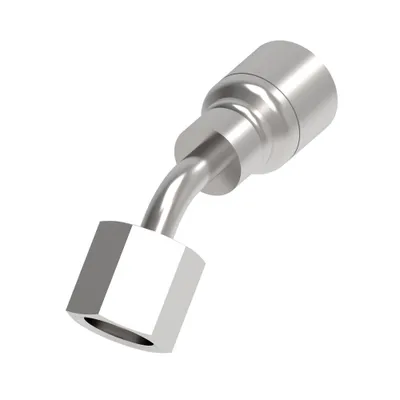

| 1G8DLA5 | 64.900 | 41.000 | 18.491 | 2.555 | 64.897 |
| 1G8DL6 | 50.500 | 25.400 | 19.939 | 1.990 | 50.546 |

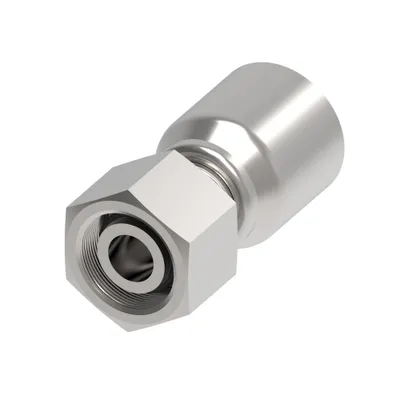

| 1G8DL5 | 50.700 | 26.800 | 21.930 | 1.996 | 50.701 |
| 1G8DL4 | 48.200 | 24.800 | 18.999 | 1.897 | 48.184 |

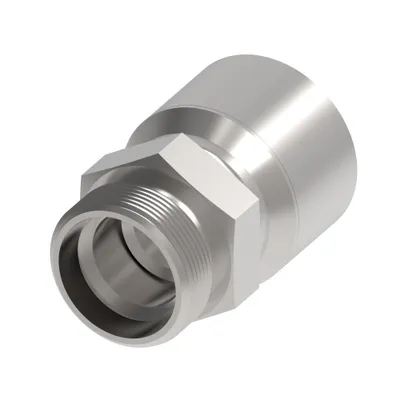

| 1G8DK6 | 52.000 | 23.700 | 23.000 | 2.047 | 51.999 |
| 1G8DK5 | 46.800 | 22.900 | 20.193 | 1.842 | 46.787 |

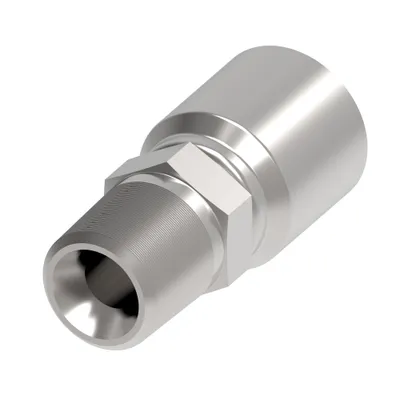

| 1G8BT8 | 66.200 | 36.500 | 27.178 | 2.600 | 66.040 |
| 1G8BJ6 | 76.200 | 50.900 | 24.000 | 3.472 | 88.199 |

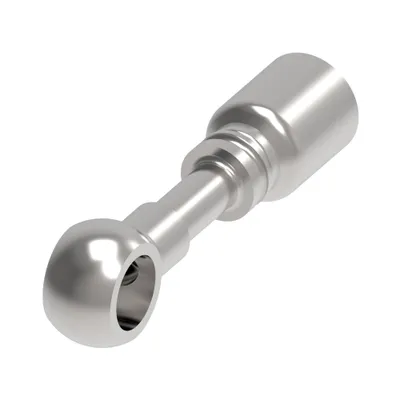

| 1G8BJ5 | 71.600 | 47.700 | 24.003 | 3.280 | 83.312 |

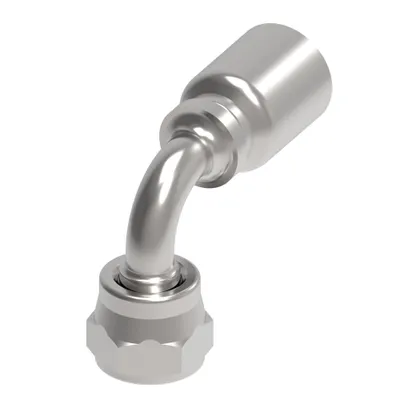

| 1G8BFB8 | 63.900 | 39.700 | 51.181 | 3.040 | 77.216 |

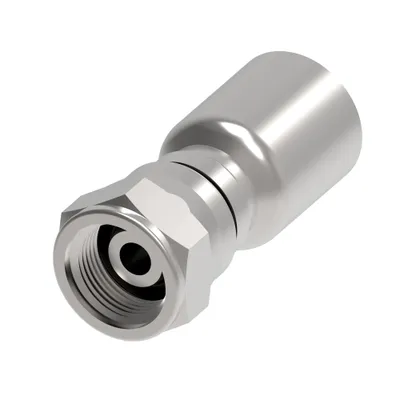

| 1G8BF8 | 53.500 | 25.900 | 26.975 | 2.106 | 53.492 |
| 1G6MC6 | 50.600 | 30.600 | 22.987 | 2.180 | 55.372 |

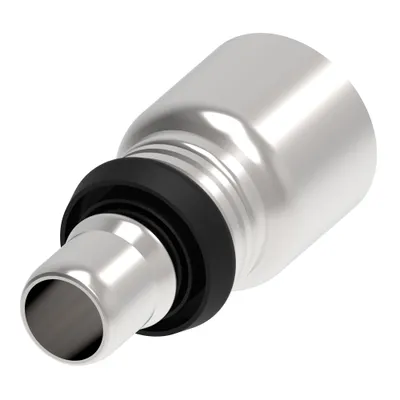

| 1G6MC4 | 48.100 | 29.210 | 17.272 | 2.060 | 52.324 |
| 1G6FRB6TY | 54.400 | 34.100 | 22.860 | 2.140 | 54.356 |

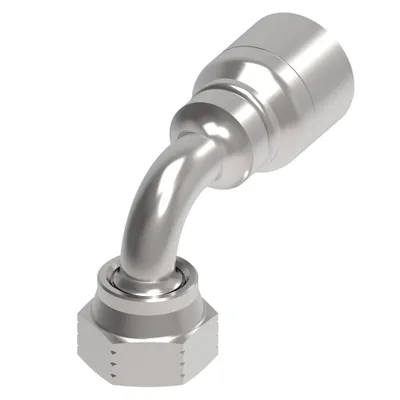

| 1G6FRB6 | 54.400 | 34.036 | 43.688 | 2.760 | 70.104 |
Common to all listed parts
| Construction Style | Crimp |
| Product material | Carbon steel |
| Series | OTC |
