Danfoss 1G8DL5

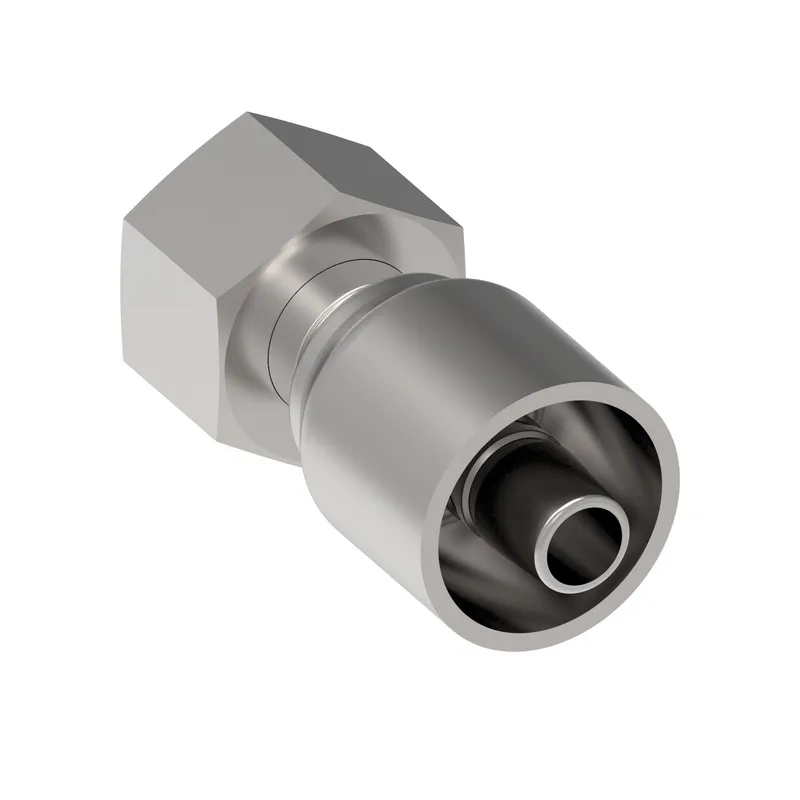

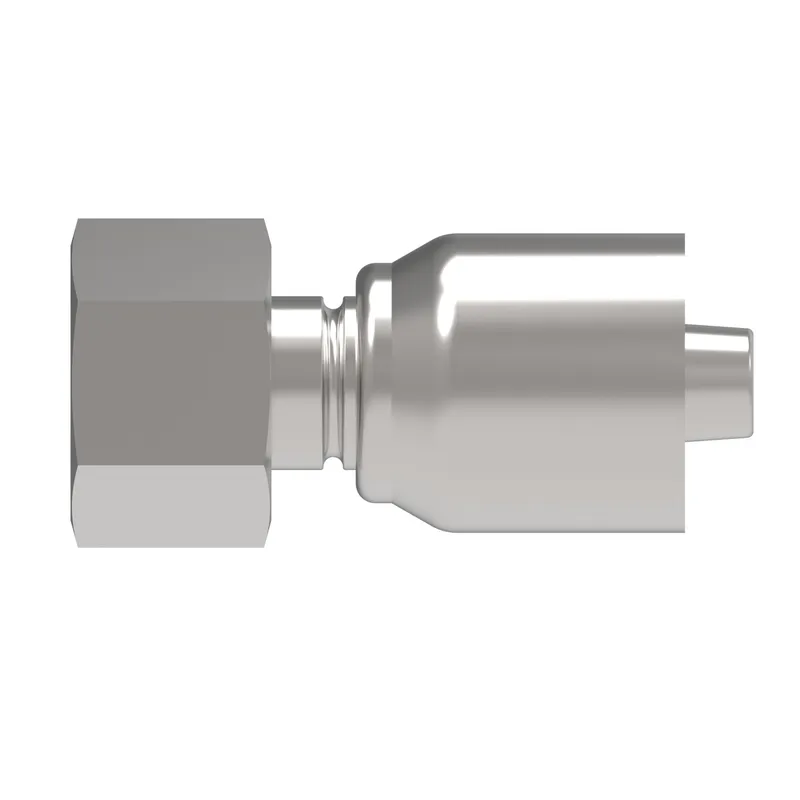

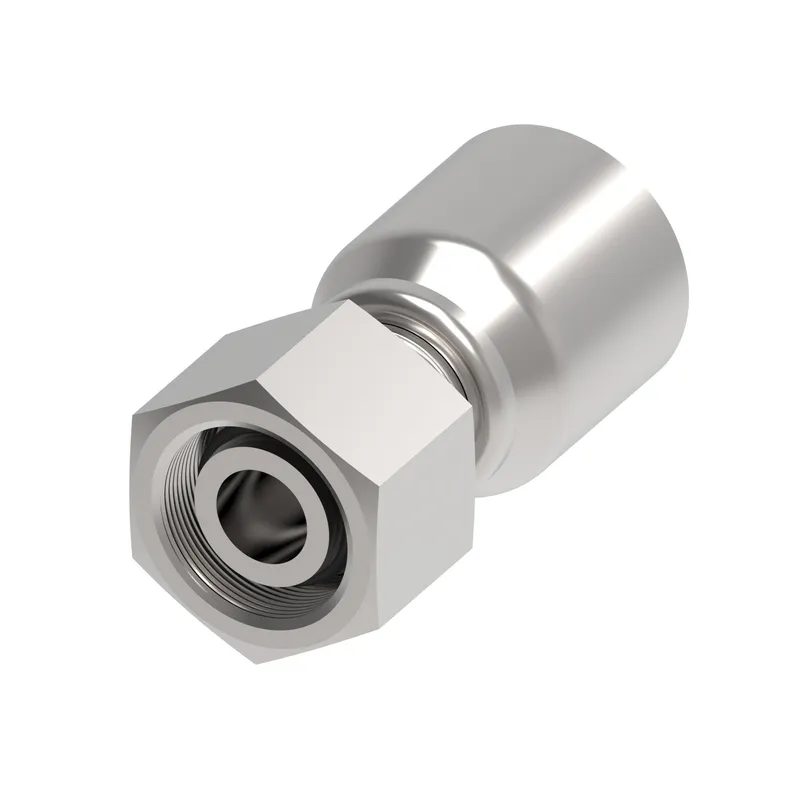

HOSE FTG, 1G/05, DKOL/08, CS, STR

MPN: 1G8DL5
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G8DL5?

Danfoss HOSE FTG, 1G/05, DKOL/08, CS, STR, manufacturer part number 1G8DL5. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.990
A dimension MM	50.700
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
End size 1	-8
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.748
Hex size 1 MM	19.000
Hose cut off factor IN	1.050
Hose cut off factor MM	26.800
Hose size	-5
Inside diameter IN	0.200
Inside diameter MM	5.300
Product height in	0.863
Product height mm	21.930
Product length in	1.996
Product length mm	50.701
Product material	Carbon steel
Product width in	0.863
Product width mm	21.93
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	OTC
Thread sealant	No
Thread size 1	M16x1.5
Working pressure max BAR	275
Working pressure max PSI	4000
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1G8DL5: frequently asked questions

When can 1G8DL5 be shipped?

1G8DL5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1G8DL5 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1G8DL5 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1G8DL5, subject to availability and destination.
