Danfoss 1G6FRB6TY

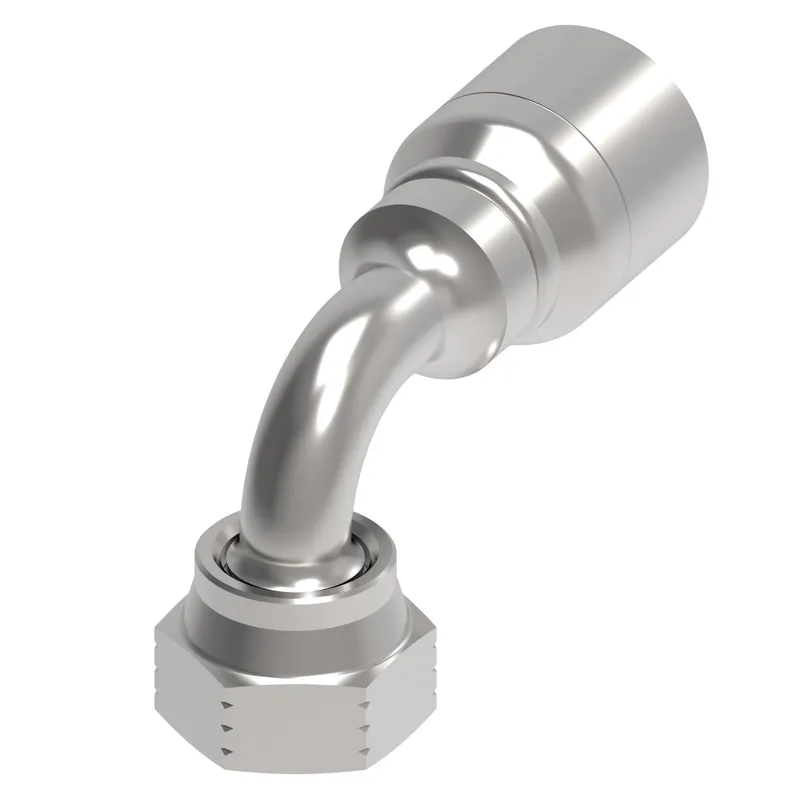

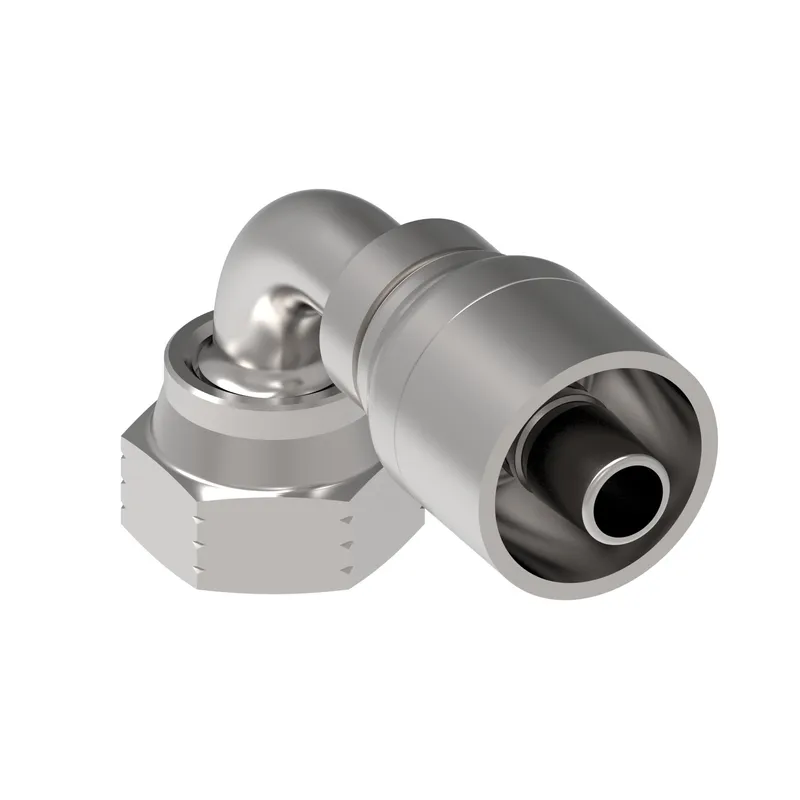

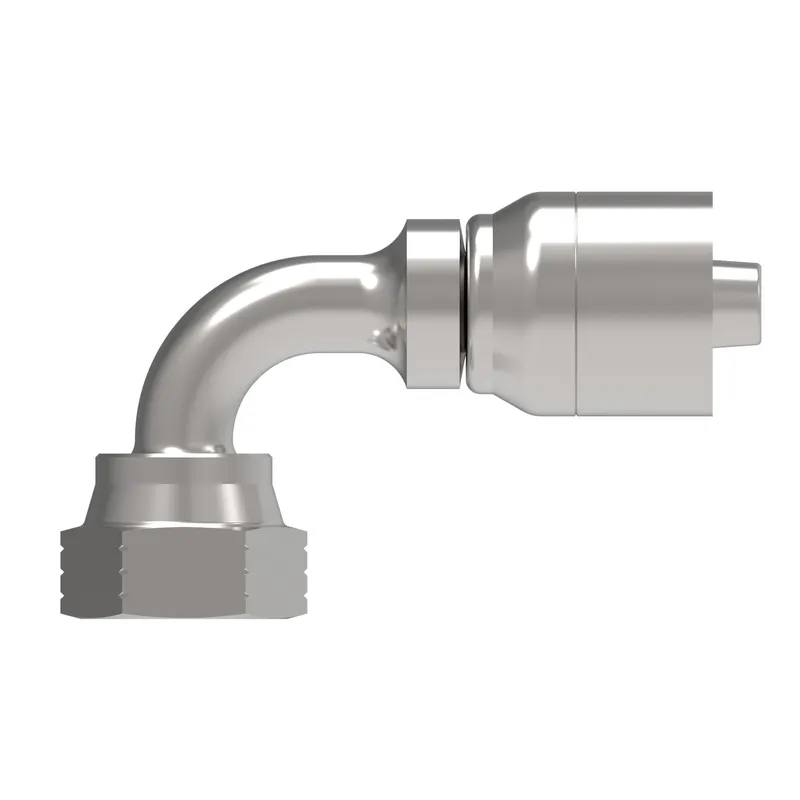

HOSE FTG, 1G/06, ORS-F/06, CS, 90D

MPN: 1G6FRB6TY
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G6FRB6TY?

Danfoss HOSE FTG, 1G/06, ORS-F/06, CS, 90D, manufacturer part number 1G6FRB6TY. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.140
A dimension MM	54.400
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	0.900
Drop dimension MM	22.90
End connection torque	18-20 lb-ft(24-27 Nm)
End size 1	-6
End Type 1	Female ORFS swivel
Finish plating	Nickel plating
Hex size 1 IN	0.866
Hex size 1 MM	21.996
Hose cut off factor IN	1.340
Hose cut off factor MM	34.100
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	0.900
Product height mm	22.860
Product length in	2.140
Product length mm	54.356
Product material	Carbon steel
Product width in	0.866
Product width mm	21.996
Series	OTC
Thread sealant	No
Thread size 1	11/16-16 UN
Working pressure max BAR	621
Working pressure max PSI	9100
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
