Danfoss 1G8FJB8

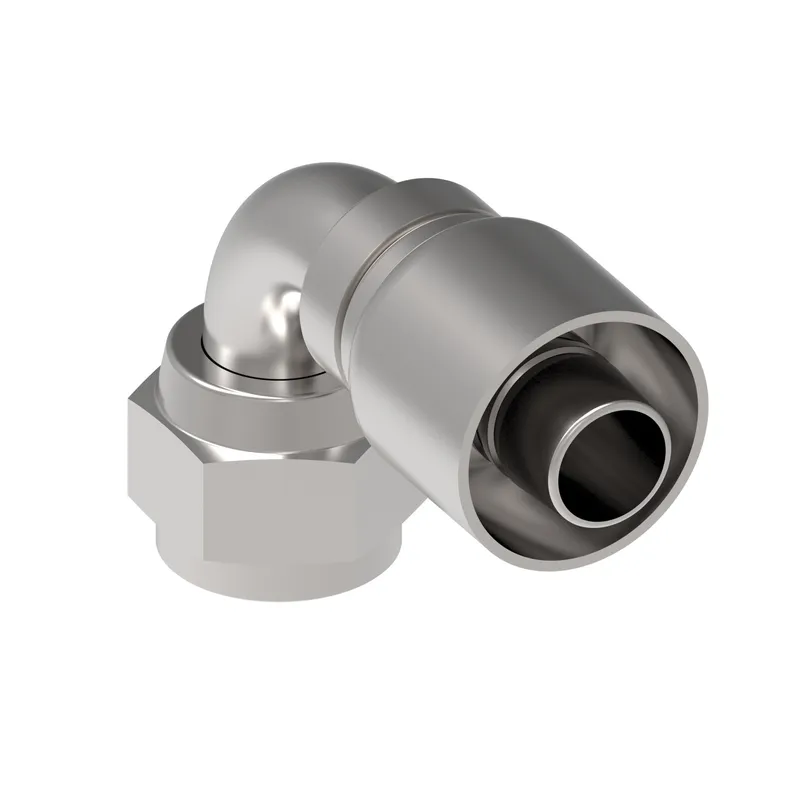

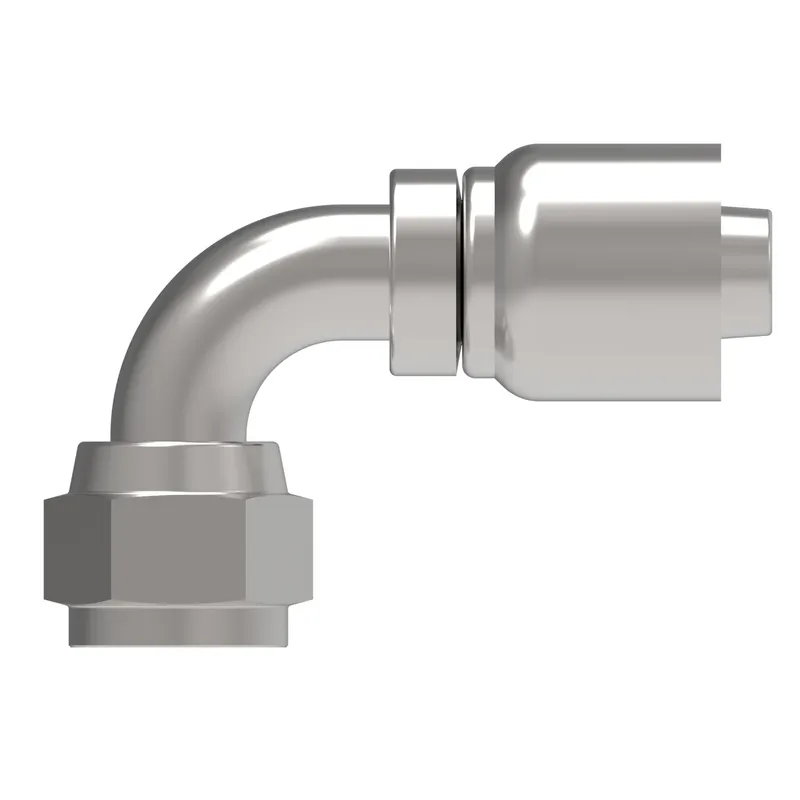

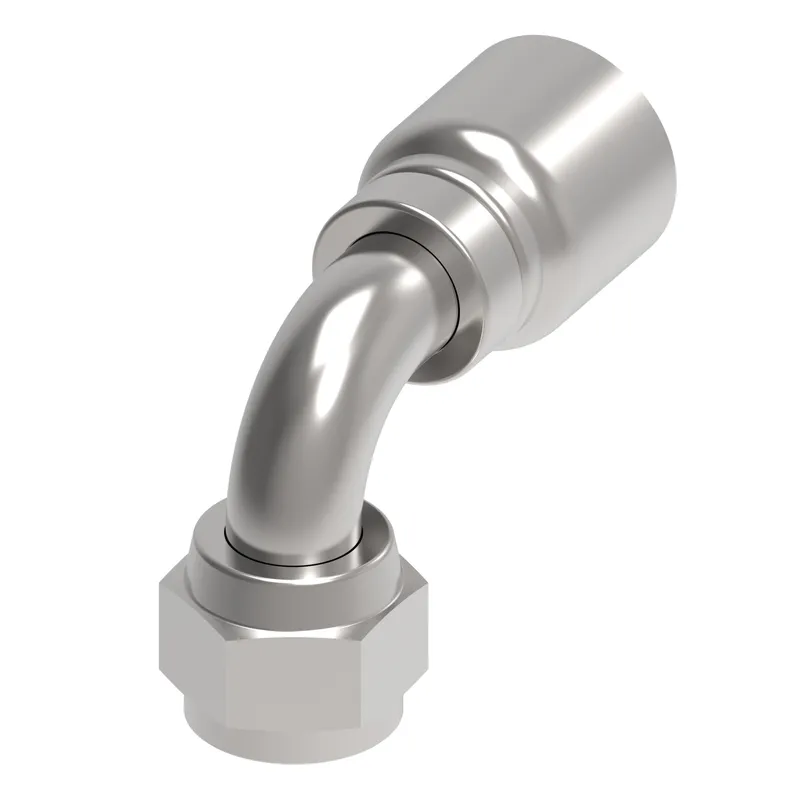

HOSE FTG, 1G/08, JIC-F/08, CS, 90D

MPN: 1G8FJB8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G8FJB8?

Danfoss HOSE FTG, 1G/08, JIC-F/08, CS, 90D, manufacturer part number 1G8FJB8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.590
A dimension MM	65.800
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.090
Drop dimension MM	27.70
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-8
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hose cut off factor IN	1.420
Hose cut off factor MM	36.000
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.629
Product height mm	41.379
Product length in	3.024
Product length mm	76.799
Product material	Carbon steel
Product width in	1.078
Product width mm	27.371
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	3/4-16 UNF
Working pressure max BAR	360
Working pressure max PSI	5300
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1G8FJB8: frequently asked questions

When can 1G8FJB8 be shipped?

1G8FJB8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1G8FJB8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1G8FJB8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1G8FJB8, subject to availability and destination.
