Danfoss 1G8FJ8

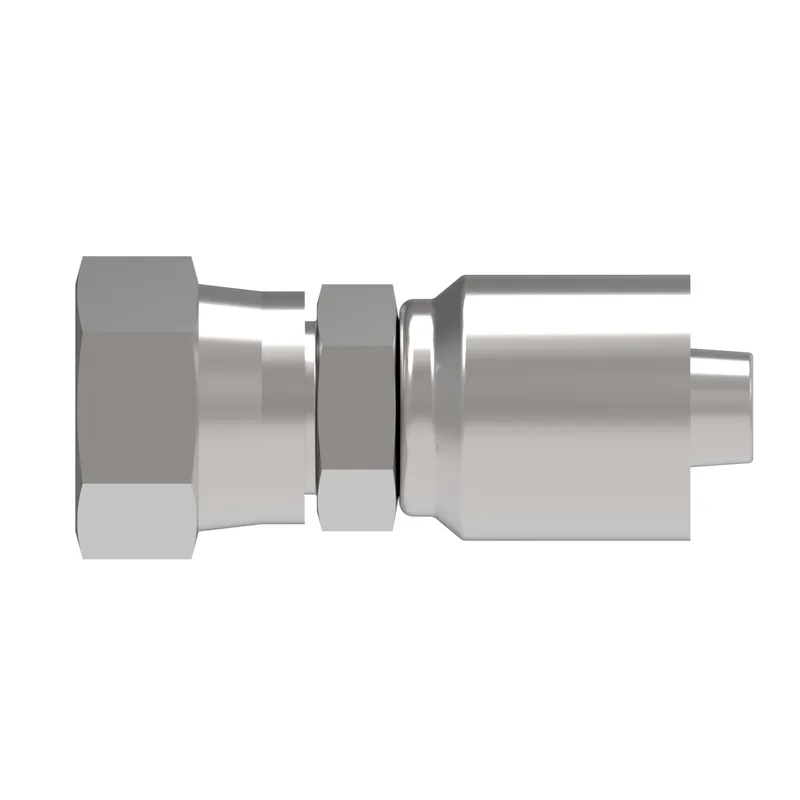

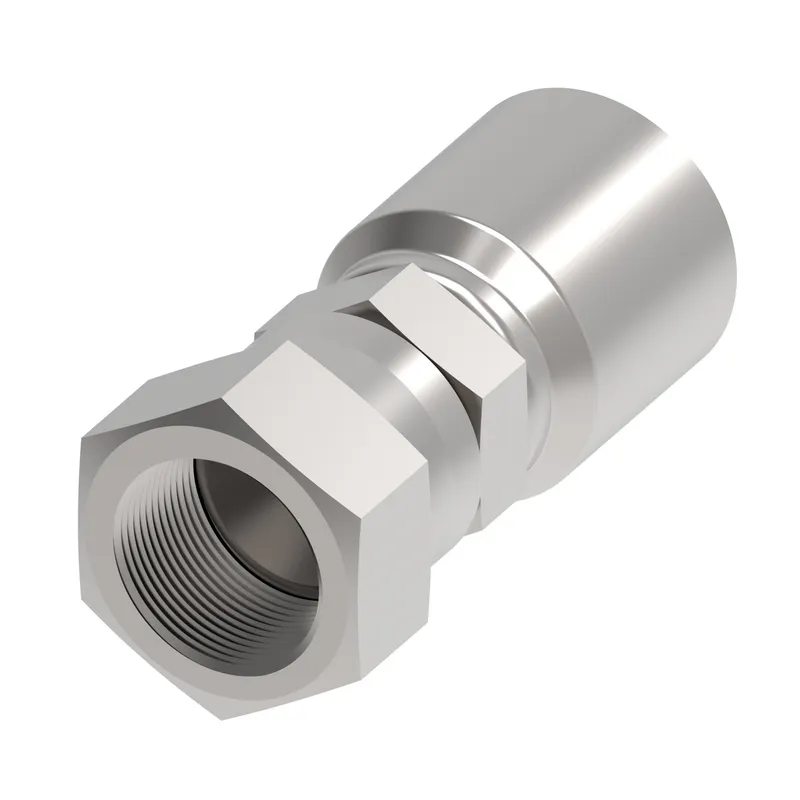

HOSE FTG, 1G/08, JIC-F/08, CS, STR

MPN: 1G8FJ8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G8FJ8?

Danfoss HOSE FTG, 1G/08, JIC-F/08, CS, STR, manufacturer part number 1G8FJ8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.390
A dimension MM	60.700
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-8
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hex size 2 IN	0.866
Hex size 2 MM	22.000
Hose cut off factor IN	1.460
Hose cut off factor MM	37.000
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.078
Product height mm	27.371
Product length in	2.621
Product length mm	66.571
Product material	Carbon steel
Product width in	1.078
Product width mm	27.371
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	3/4-16 UNF
Working pressure max BAR	360
Working pressure max PSI	5300
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
