Danfoss 1G8FJ6

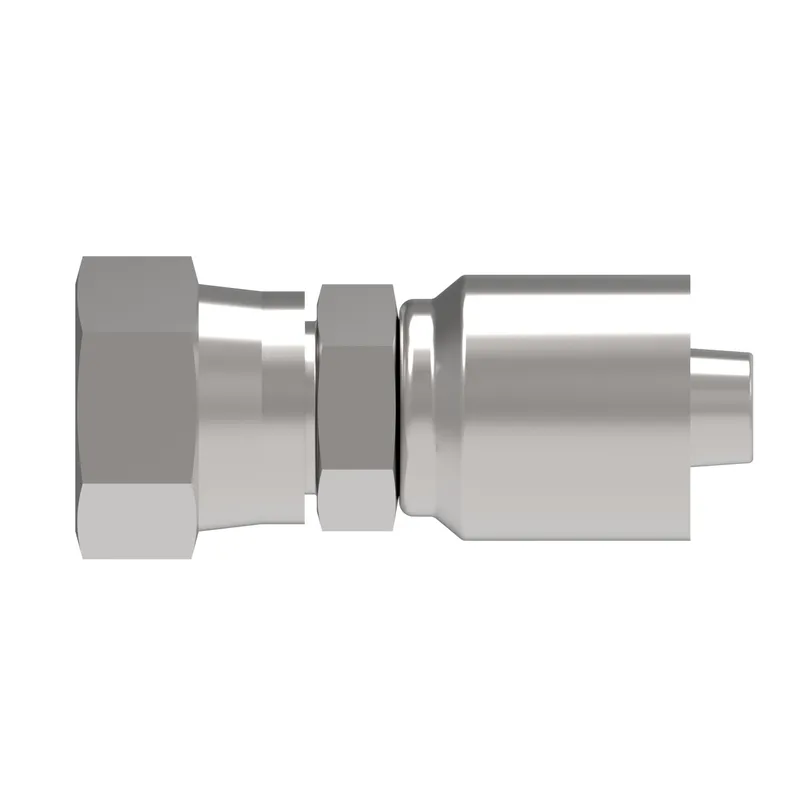

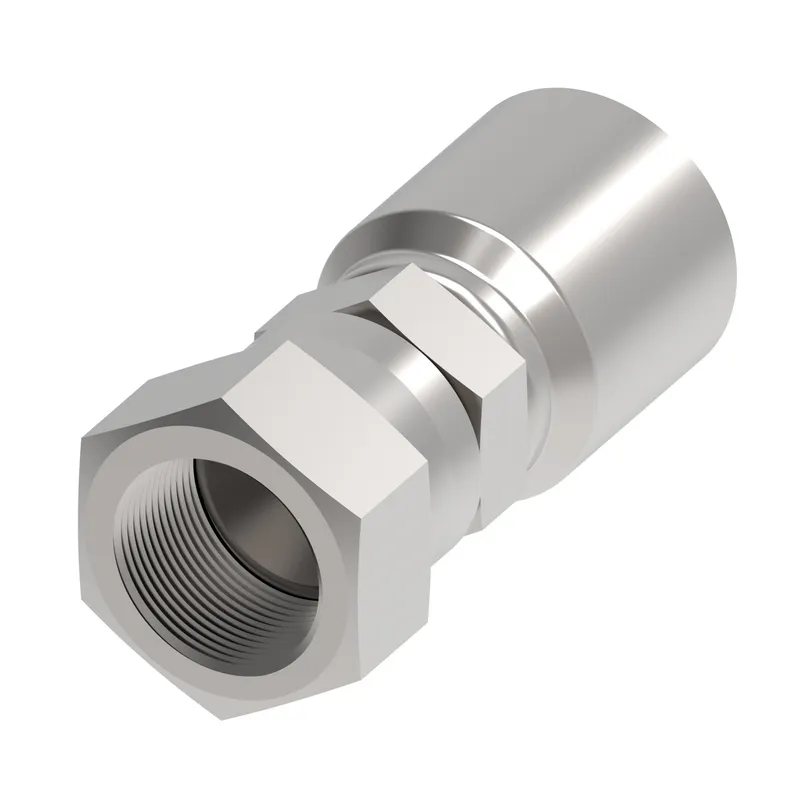

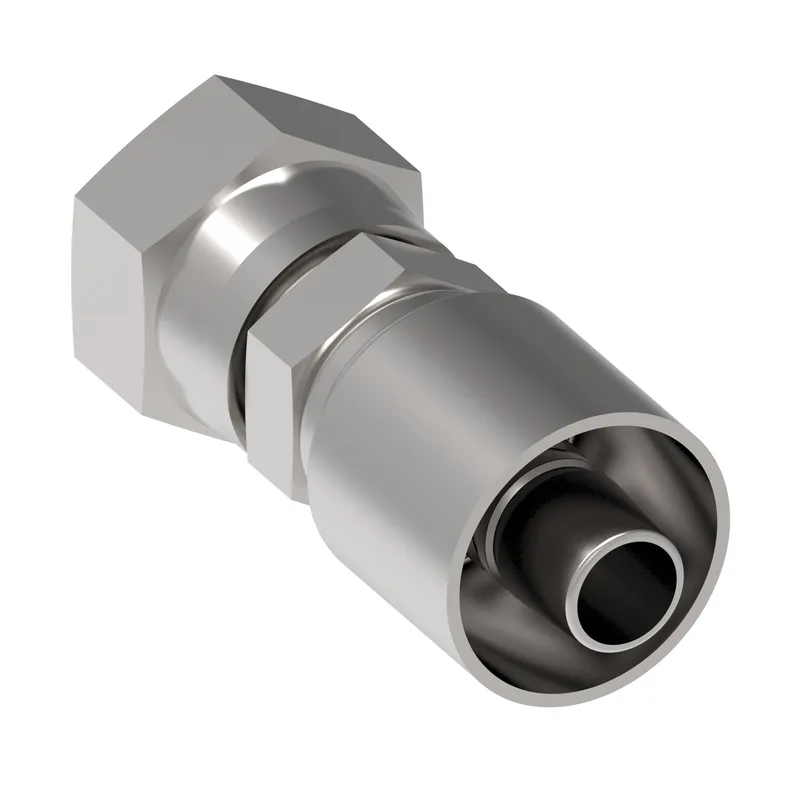

HOSE FTG, 1G/06, JIC-F/08, CS, STR

MPN: 1G8FJ6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G8FJ6?

Danfoss HOSE FTG, 1G/06, JIC-F/08, CS, STR, manufacturer part number 1G8FJ6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.110
A dimension MM	53.600
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-8
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hex size 2 IN	0.669
Hex size 2 MM	17.000
Hose cut off factor IN	1.310
Hose cut off factor MM	33.300
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.000
Product height mm	25.400
Product length in	2.377
Product length mm	60.371
Product material	Carbon steel
Product width in	1.000
Product width mm	25.4
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	3/4-16 UNF
Working pressure max BAR	360.00
Working pressure max PSI	5300.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
