Danfoss 1G8BJ5

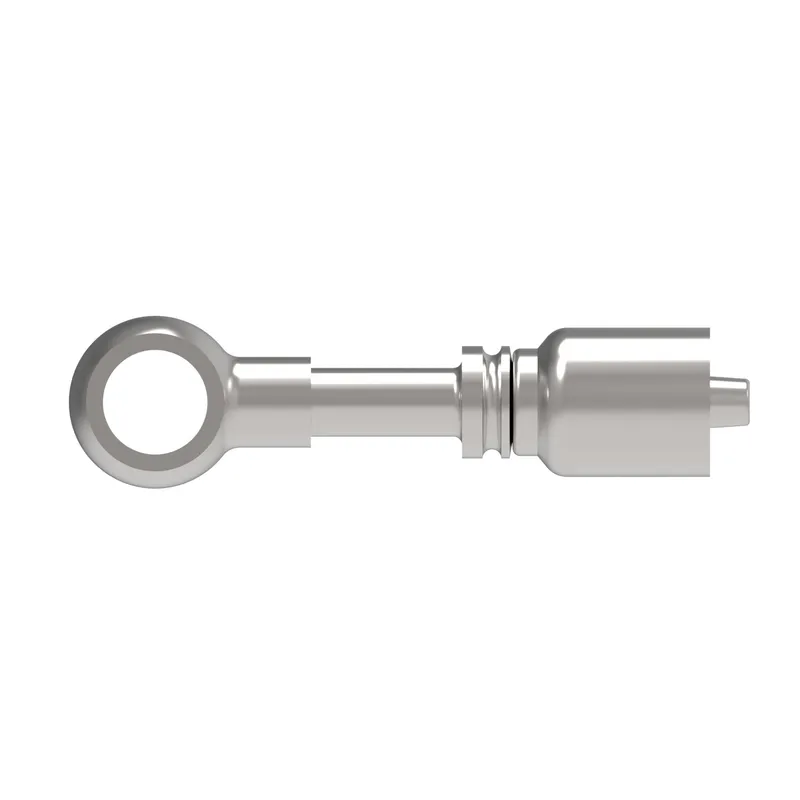

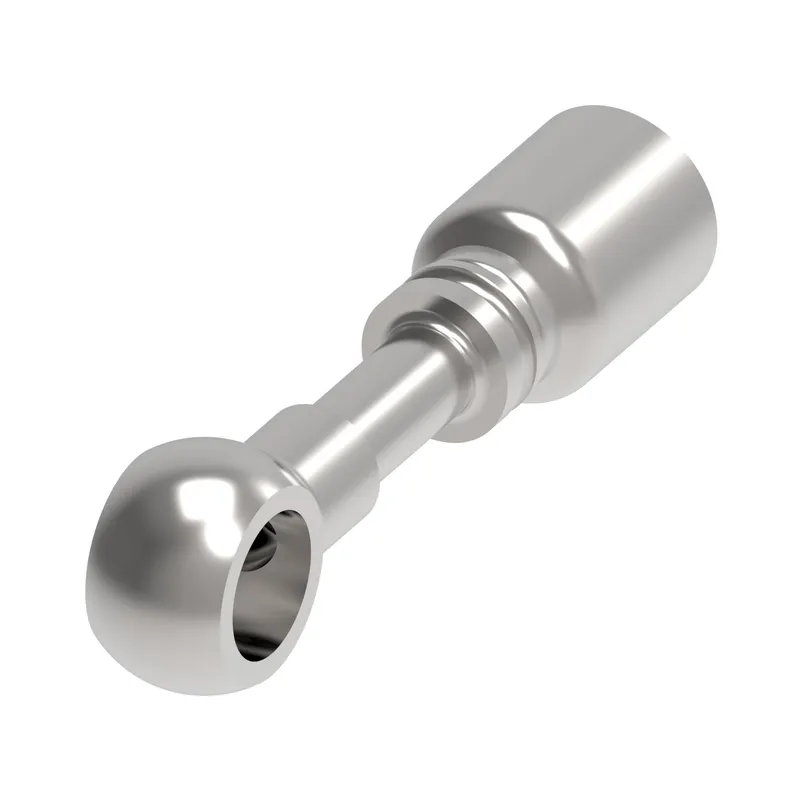

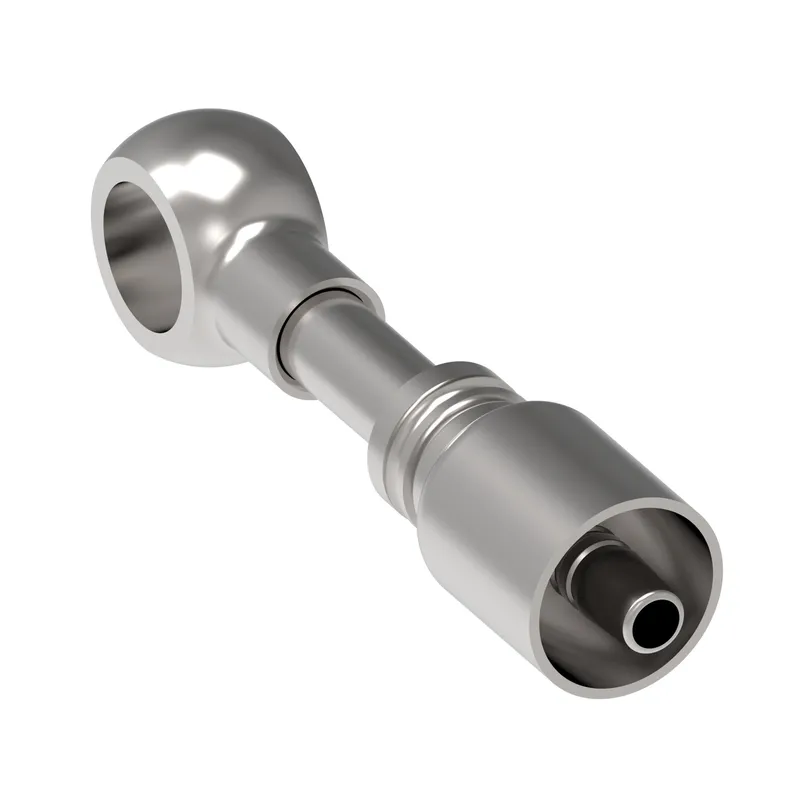

HOSE FTG, 1G/05, BANJO/08, CS, STR

MPN: 1G8BJ5
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G8BJ5?

Danfoss HOSE FTG, 1G/05, BANJO/08, CS, STR, manufacturer part number 1G8BJ5. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.810
A dimension MM	71.600
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Compatible hoses	GH585, GH586
Construction Style	Crimp
End size 1	-8
End Type 1	Banjo DIN 7642 Form B, L.D.
Finish plating	Dura-Kote
Hose cut off factor IN	1.870
Hose cut off factor MM	47.700
Hose size	-5
Inside diameter IN	0.200
Inside diameter MM	5.300
Product height in	0.945
Product height mm	24.003
Product length in	3.280
Product length mm	83.312
Product material	Carbon steel
Product width in	0.795
Product width mm	20.193
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
