Danfoss 1SA20FRB20

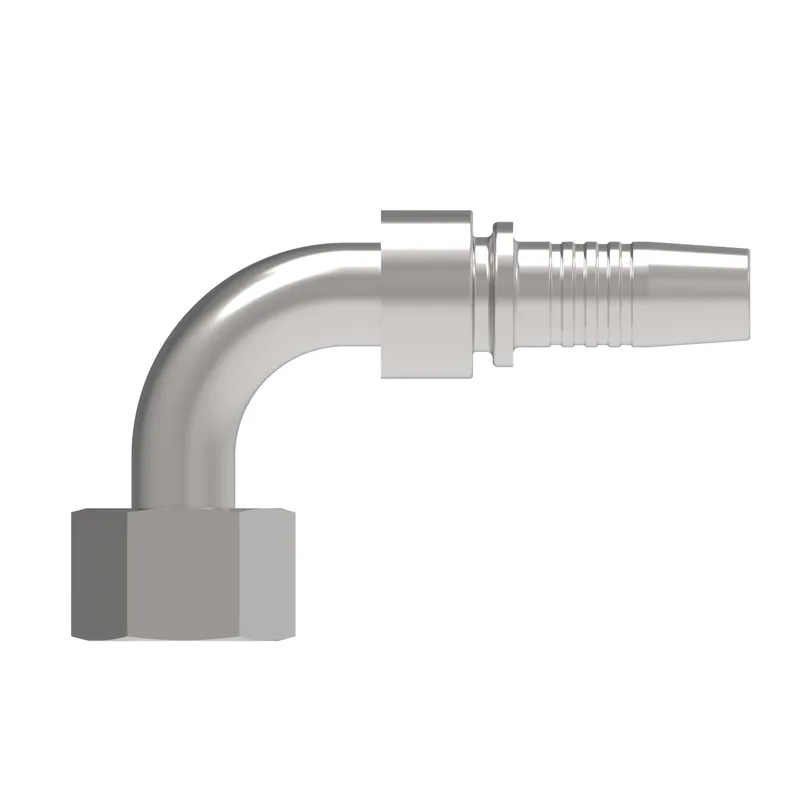

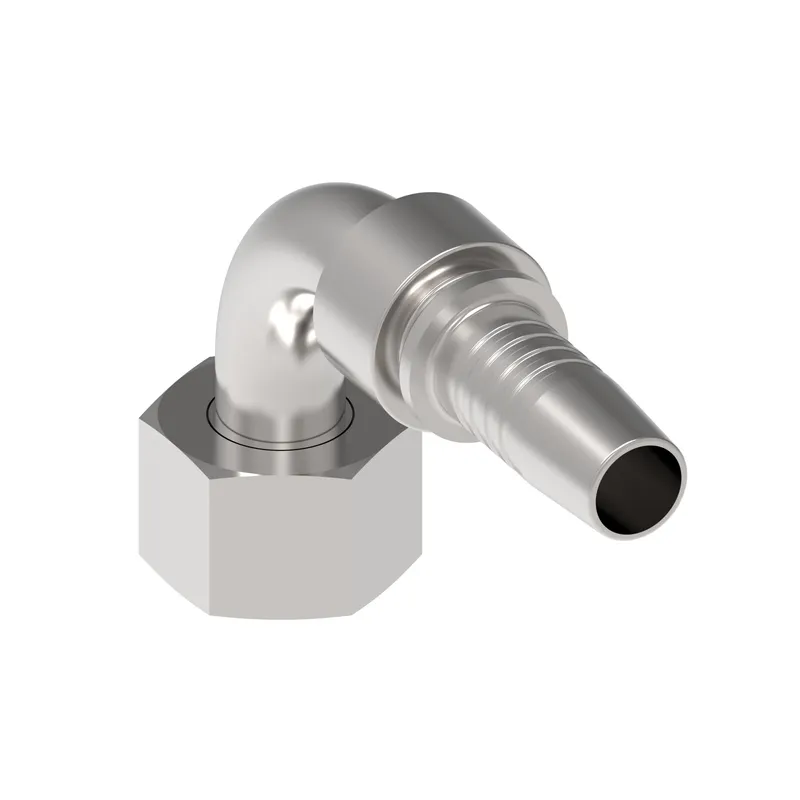

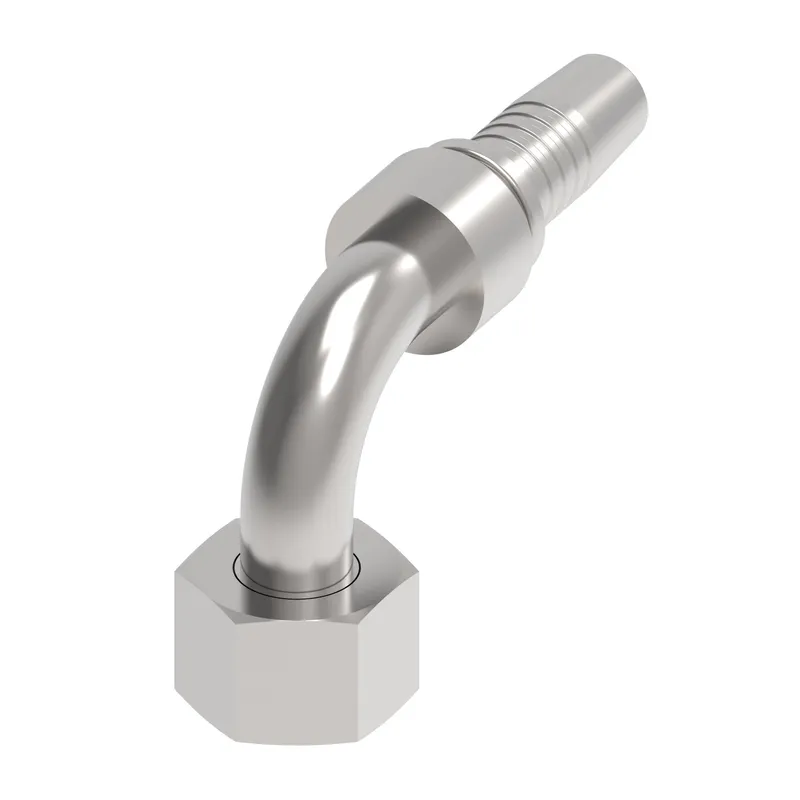

HOSE NIPPLE ASSY,1A/20,ORS-F/20,CS,90D

MPN: 1SA20FRB20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SA20FRB20?

Danfoss HOSE NIPPLE ASSY,1A/20,ORS-F/20,CS,90D, manufacturer part number 1SA20FRB20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.299
A dimension MM	134.600
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
Drop dimension IN	2.511
Drop dimension MM	63.80
End connection torque	127-133 lb-ft(173-182 Nm)
End size 1	-20
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.880
Hex size 1 MM	47.000
Hose cut off factor IN	3.566
Hose cut off factor MM	90.600
Hose size	-20
Inside diameter IN	1.023
Inside diameter MM	26.000
Product height in	2.510
Product height mm	63.754
Product length in	5.300
Product length mm	134.620
Product material	Carbon steel
Product width in	1.880
Product width mm	47.752
Series	1A/Z Series
Thread size 1	1 11/16-12 UN
Working pressure max BAR	310
Working pressure max PSI	4500
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1SA20FRB20: frequently asked questions

When can 1SA20FRB20 be shipped?

1SA20FRB20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SA20FRB20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SA20FRB20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SA20FRB20, subject to availability and destination.
