Danfoss 1SA12MJ12

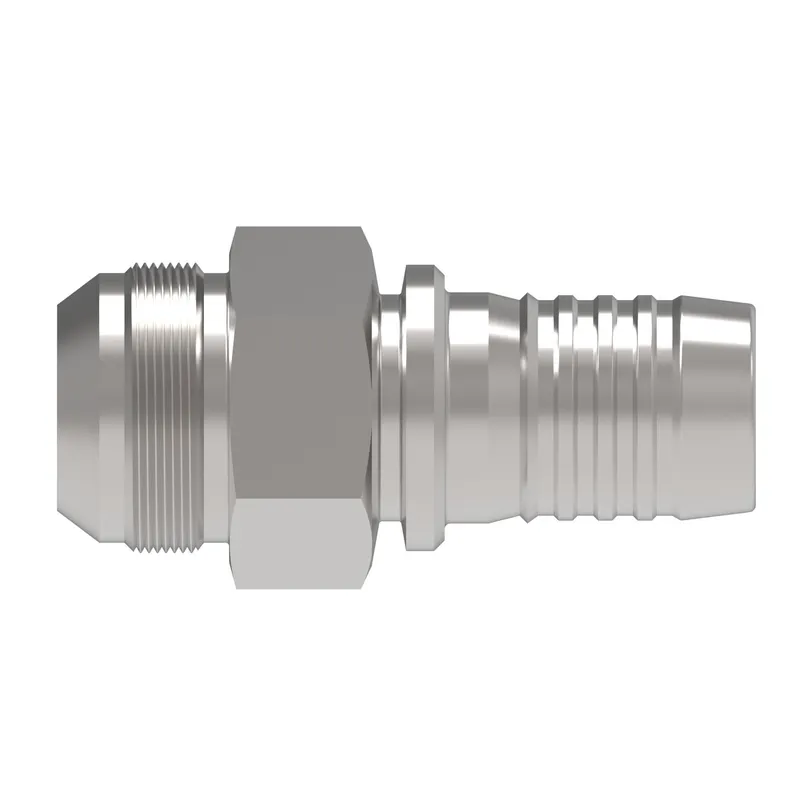

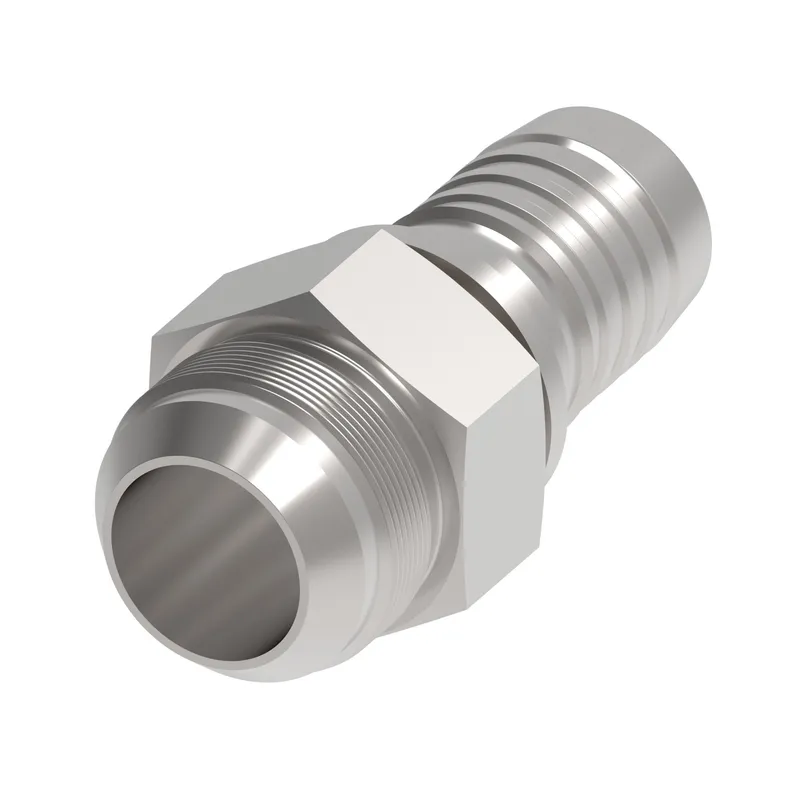

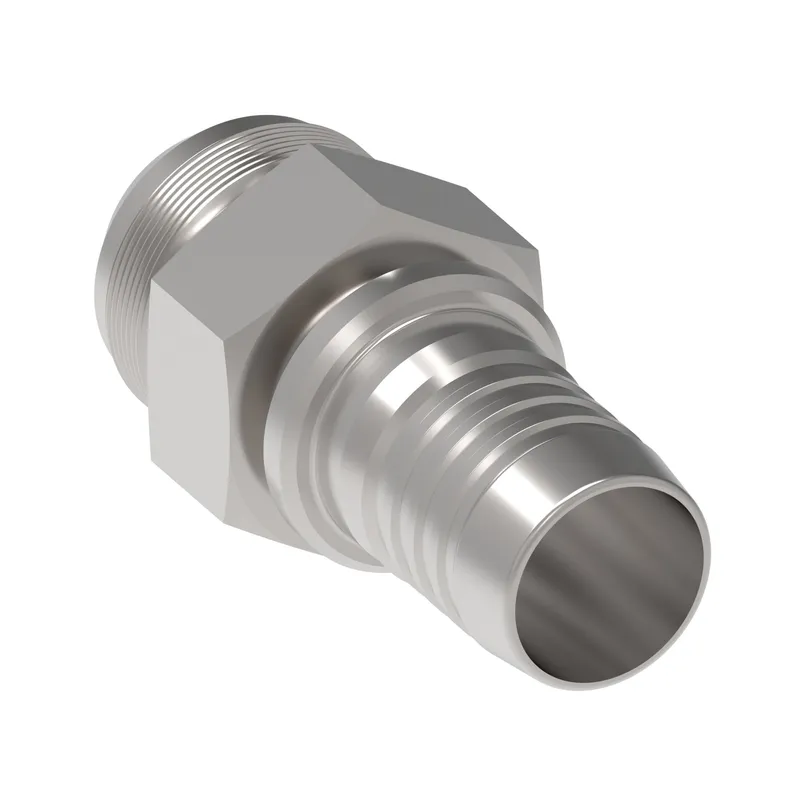

HOSE NIPPLE ASSY,1W/12,JIC-M/12,CS,STR

MPN: 1SA12MJ12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SA12MJ12?

Danfoss HOSE NIPPLE ASSY,1W/12,JIC-M/12,CS,STR, manufacturer part number 1SA12MJ12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.935
A dimension MM	74.550
Angle shape	Straight
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End size 1	-12
End Type 1	Male 37 degree
Finish plating	Zinc plating
Hex size 1 IN	1.130
Hex size 1 MM	28.702
Hex size 2 MM	28.000
Hose cut off factor IN	1.750
Hose cut off factor MM	44.450
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.494
Product height in	1.130
Product height mm	28.702
Product length in	2.940
Product length mm	74.676
Product material	Carbon steel
Product width in	1.130
Product width mm	28.702
Series	1SA
Thread sealant	No
Thread size 1	1 1/16-12 UN
Working pressure max BAR	379
Working pressure max PSI	5500
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1SA12MJ12: frequently asked questions

When can 1SA12MJ12 be shipped?

1SA12MJ12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SA12MJ12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SA12MJ12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SA12MJ12, subject to availability and destination.
