Danfoss 1SA6FRB6

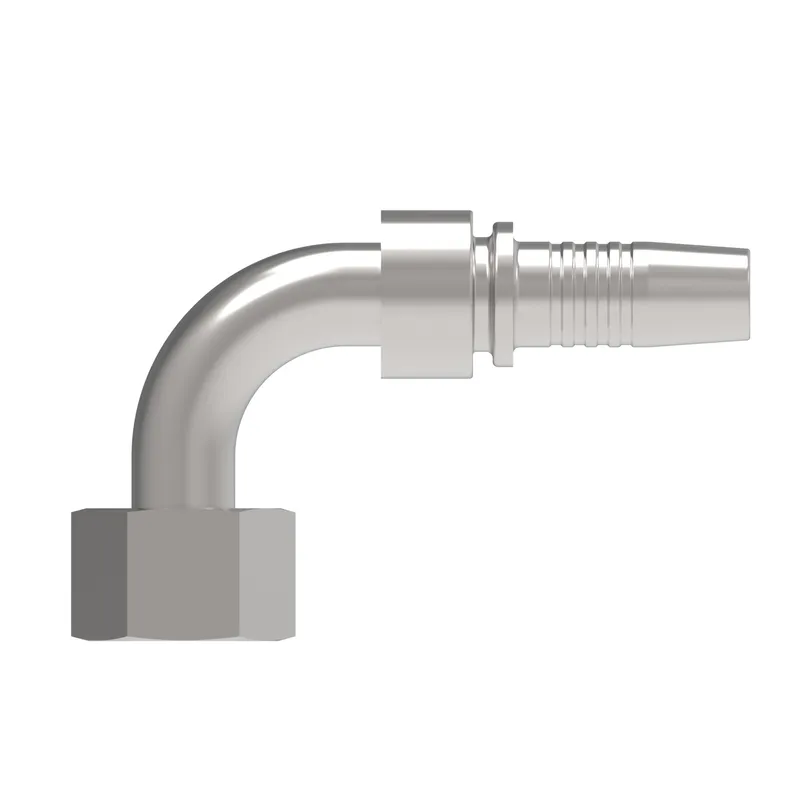

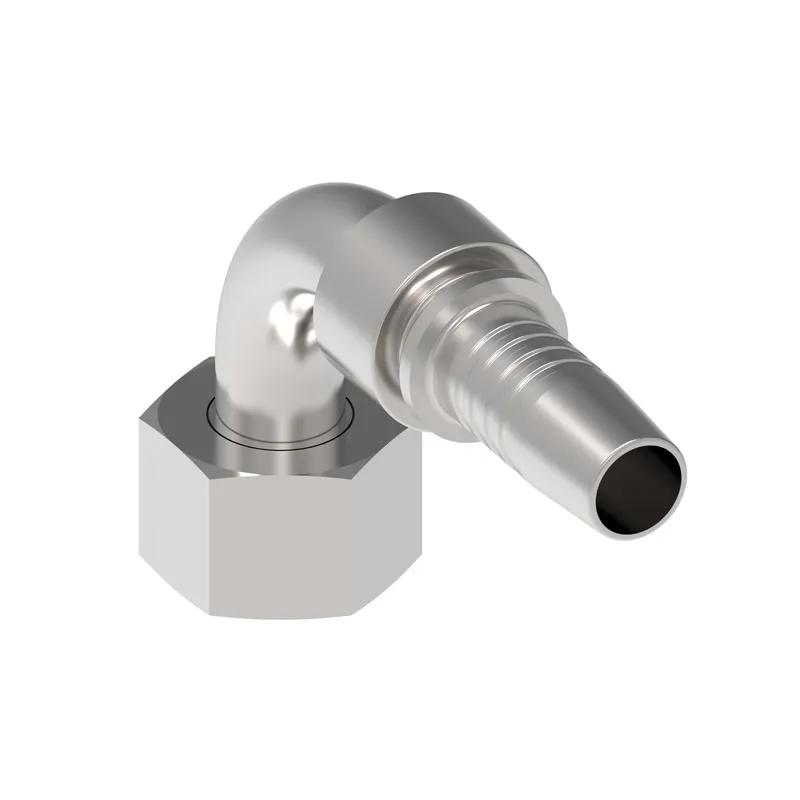

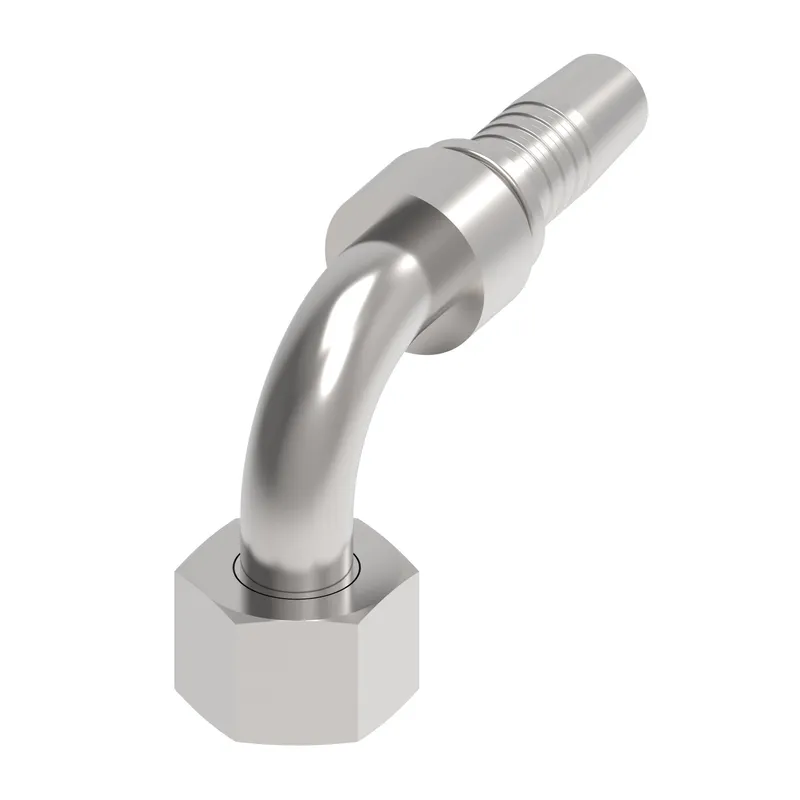

HOSE NIPPLE ASSY,1A/06,ORS-F/06,CS,90D

MPN: 1SA6FRB6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SA6FRB6?

Danfoss HOSE NIPPLE ASSY,1A/06,ORS-F/06,CS,90D, manufacturer part number 1SA6FRB6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146133533
A dimension IN	2.340
A dimension MM	59.400
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	0.900
Drop dimension MM	22.90
End connection torque	18-20 lb-ft(24-27 Nm)
End size 1	-6
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hose cut off factor IN	1.340
Hose cut off factor MM	34.100
Hose size	-6
Inside diameter IN	0.250
Inside diameter MM	6.400
Product height in	0.900
Product height mm	22.860
Product length in	2.340
Product length mm	59.436
Product material	Carbon steel
Product width in	0.810
Product width mm	20.574
Series	1A/Z Series
Thread size 1	11/16-16 UN
Working pressure max BAR	621.00
Working pressure max PSI	9100.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
