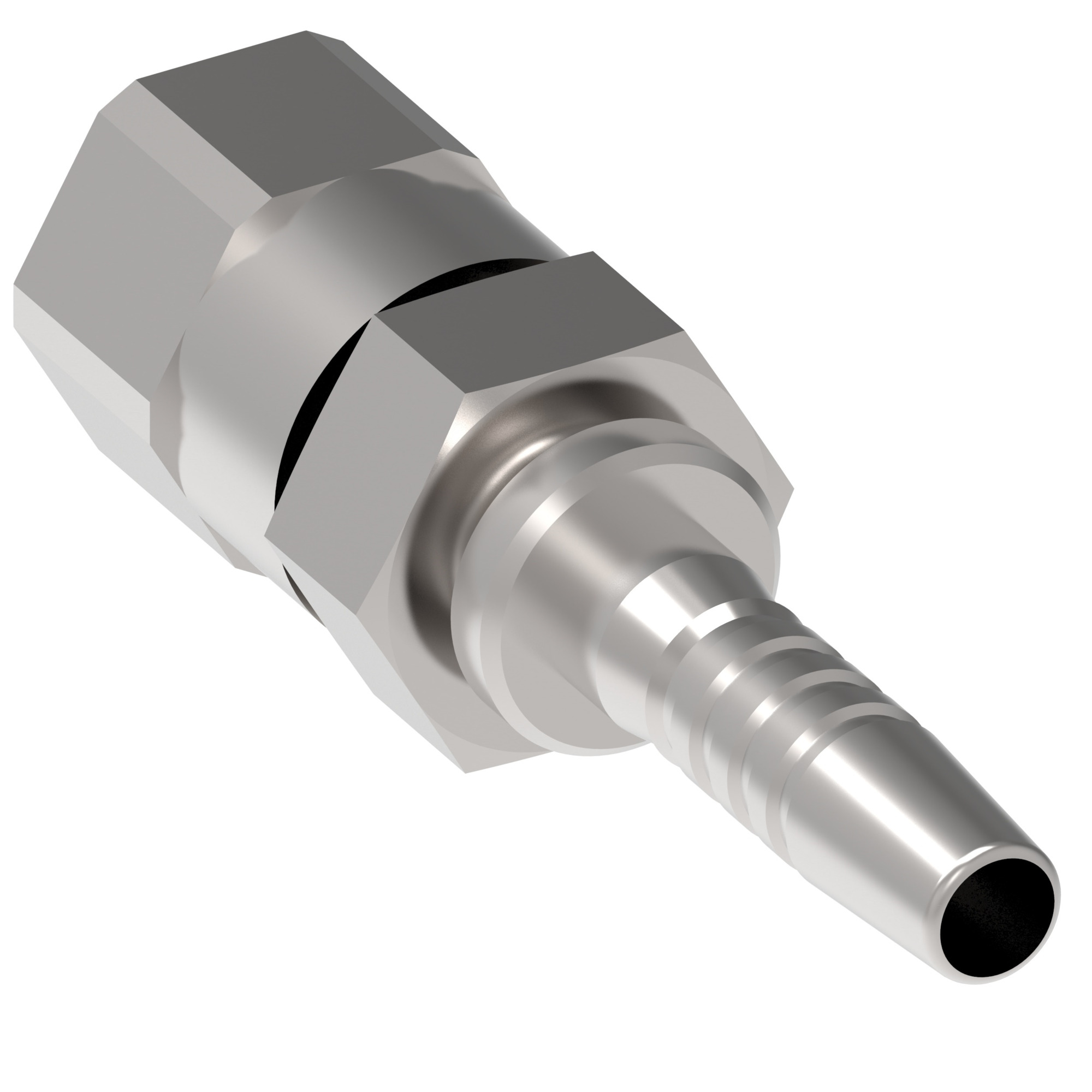

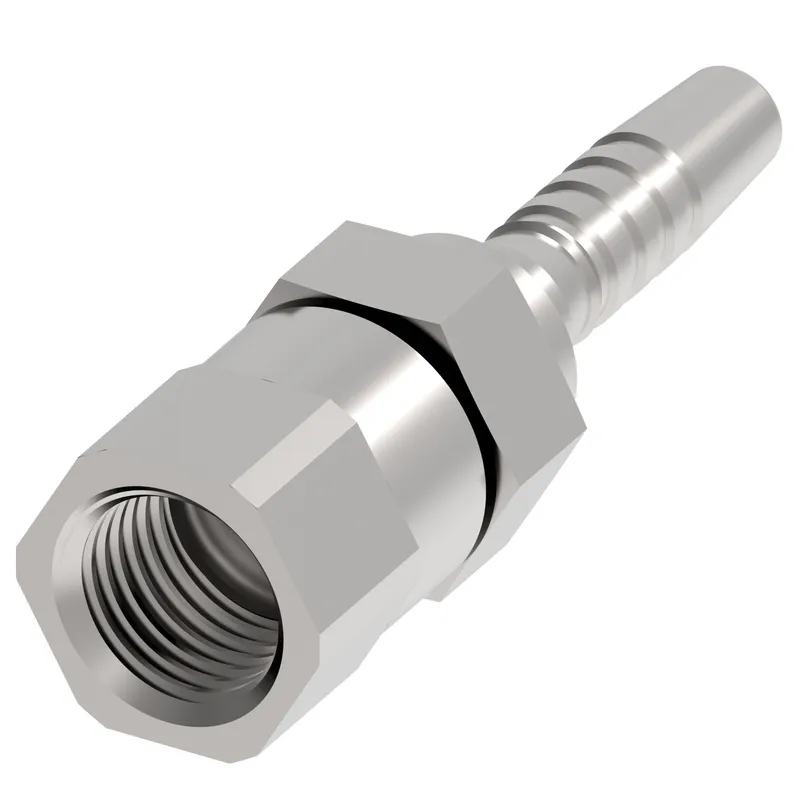

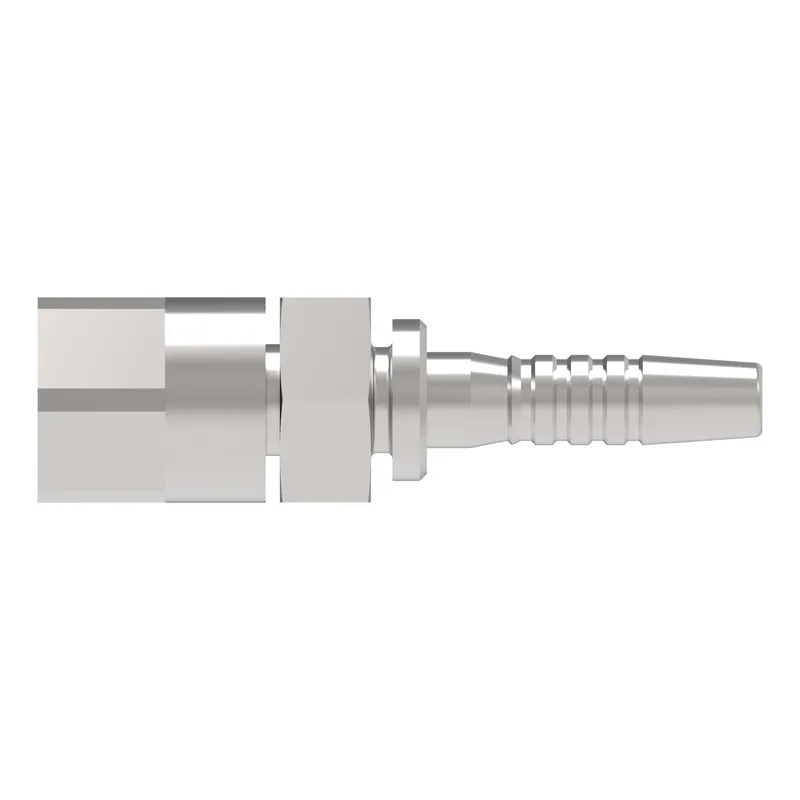

HOSE NIPPLE ASSY,1W/04,JIC-F/05,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1SA5FJ4 be shipped?
1SA5FJ4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SA5FJ4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SA5FJ4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SA5FJ4, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,1W/04,JIC-F/05,CS,STR, manufacturer part number 1SA5FJ4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.980 |
| A dimension MM | 50.400 |
| Angle shape | Straight |
| Compatible hose ID IN | 0.250 |
| Compatible hose ID MM | 6.400 |
| Construction Style | Crimp |
| End connection torque | 15-16 lb-ft(20-22 Nm) |
| End size 1 | -5 |
| End Type 1 | Female 37 degree swivel |
| Finish plating | Dura-Kote |
| Hex size 2 MM | 14.288 |
| Hose cut off factor IN | 1.060 |
| Hose cut off factor MM | 27.000 |
| Hose size | -4 |
| Inside diameter IN | 0.170 |
| Inside diameter MM | 4.200 |
| Product height in | 0.630 |
| Product height mm | 16.002 |
| Product length in | 1.980 |
| Product length mm | 50.292 |
| Product material | Carbon steel |
| Product width in | 0.630 |
| Product width mm | 16.002 |
| Series | 1SA |
| Thread size 1 | 1/2-20 UNF |
| Working pressure max BAR | 400 |
| Working pressure max PSI | 5800 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
