Danfoss 1SA20FJ20

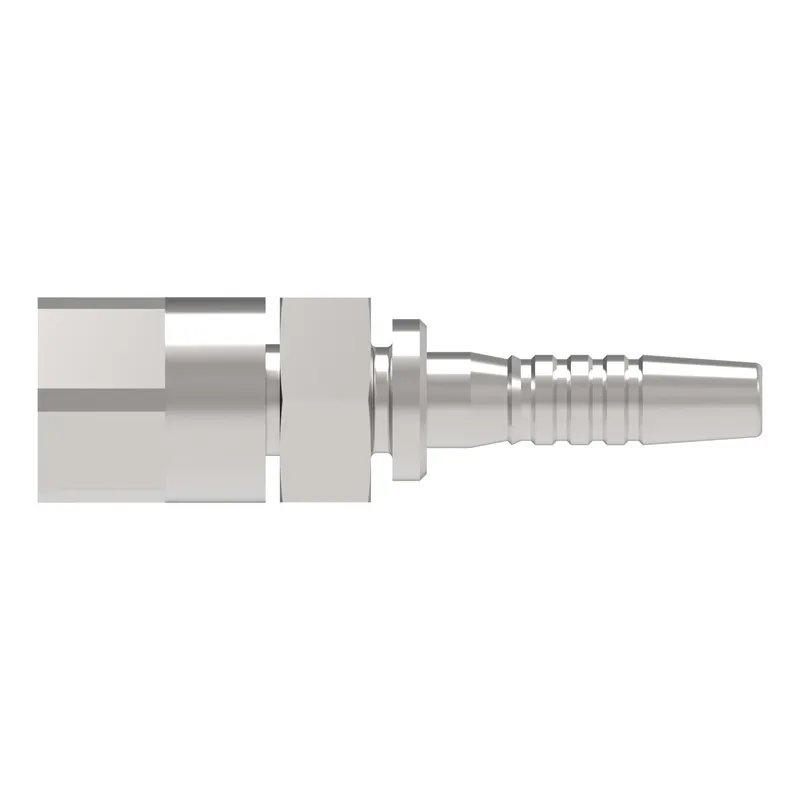

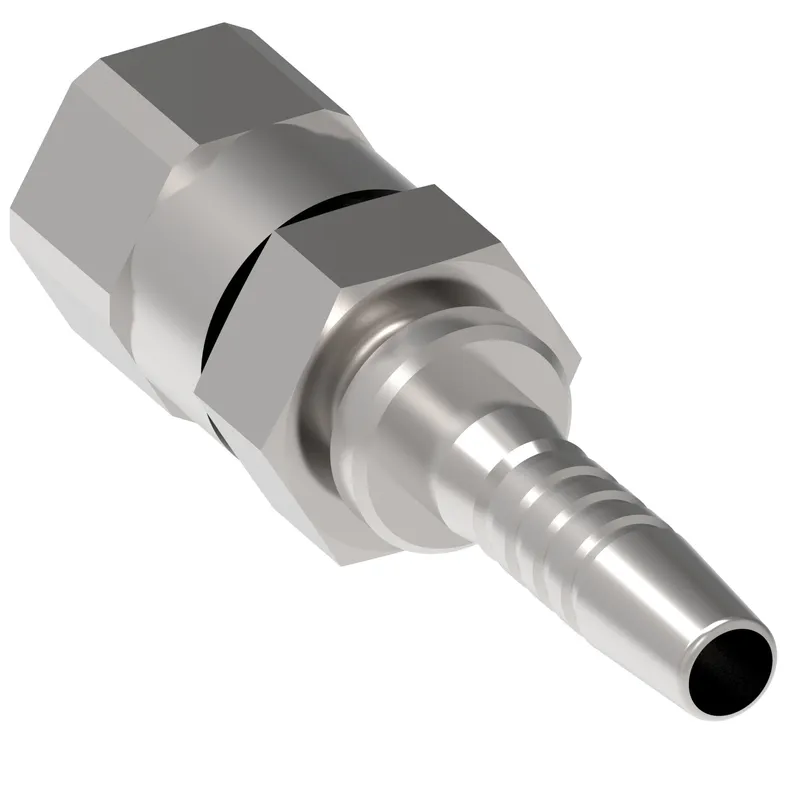

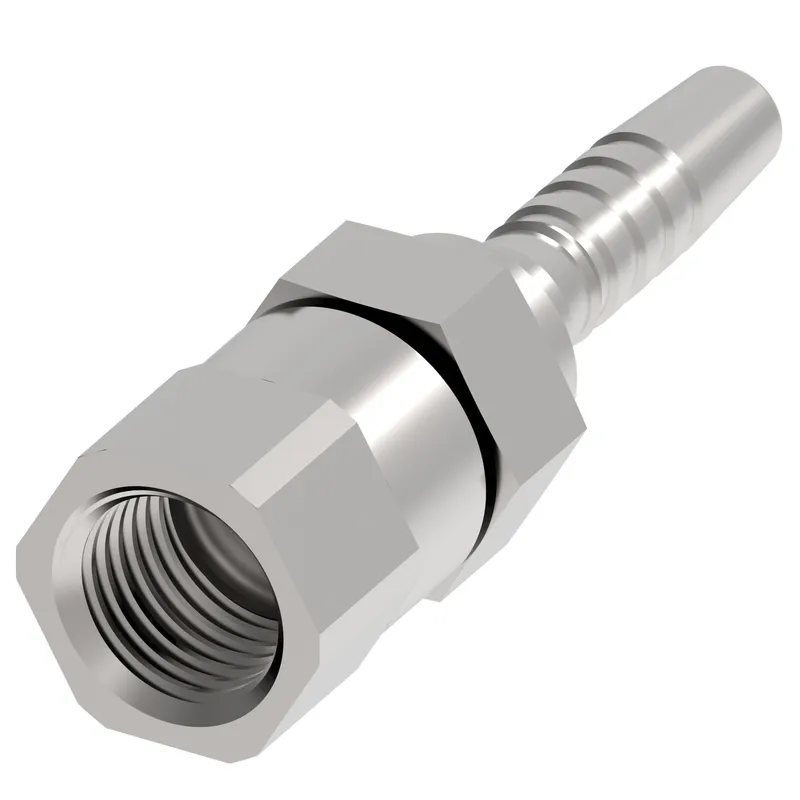

HOSE NIPPLE ASSY,1W/20,JIC-F/20,CS,STR

MPN: 1SA20FJ20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SA20FJ20?

Danfoss HOSE NIPPLE ASSY,1W/20,JIC-F/20,CS,STR, manufacturer part number 1SA20FJ20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146133380
A dimension IN	3.614
A dimension MM	91.800
Angle shape	Straight
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End connection torque	127-133 lb-ft(173-182 Nm)
End size 1	-20
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hose cut off factor IN	1.881
Hose cut off factor MM	47.800
Hose size	-20
Inside diameter IN	1.047
Inside diameter MM	26.600
Product height in	2.000
Product height mm	50.800
Product length in	3.610
Product length mm	91.694
Product material	Carbon steel
Product width in	2.000
Product width mm	50.8
Series	1SA
Thread size 1	1 5/8-12 UN
Working pressure max BAR	172
Working pressure max PSI	2500
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1SA20FJ20: frequently asked questions

When can 1SA20FJ20 be shipped?

1SA20FJ20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SA20FJ20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SA20FJ20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SA20FJ20, subject to availability and destination.
