Danfoss 1SA6FJ6

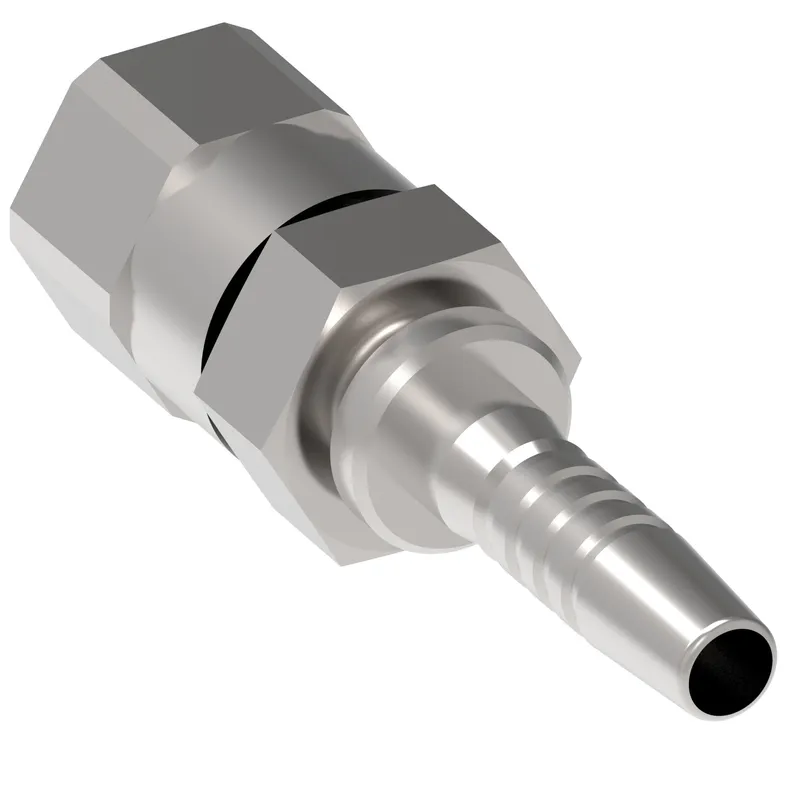

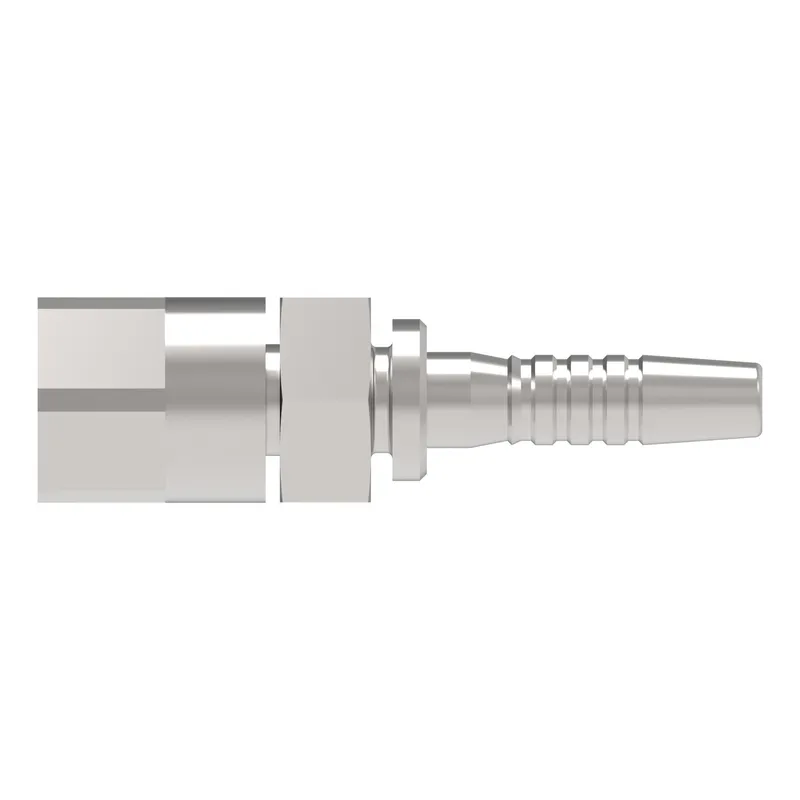

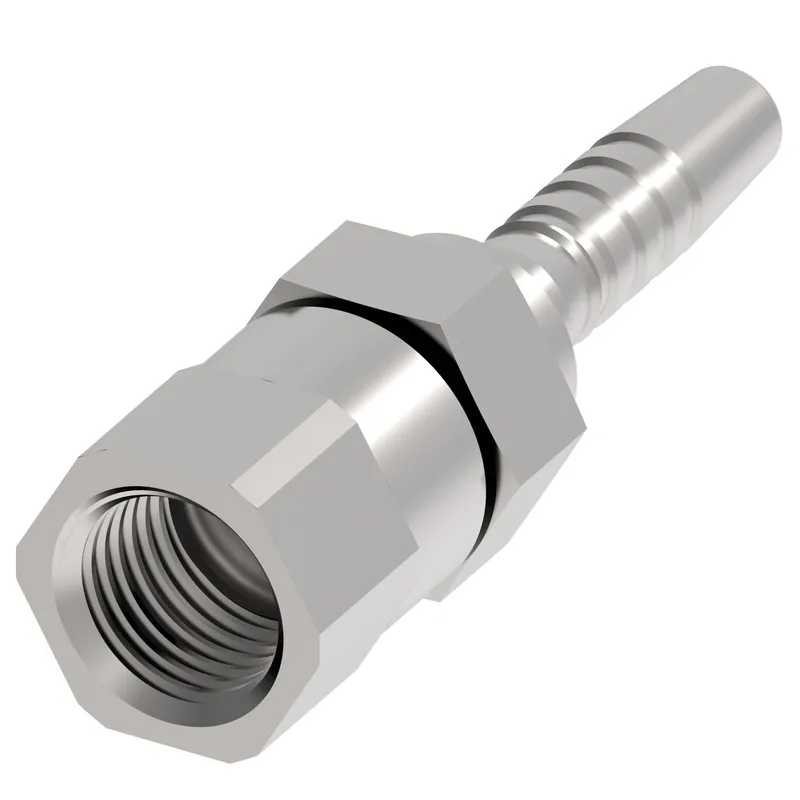

HOSE NIPPLE ASSY,1W/06,JIC-F/06,CS,STR

MPN: 1SA6FJ6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SA6FJ6?

Danfoss HOSE NIPPLE ASSY,1W/06,JIC-F/06,CS,STR, manufacturer part number 1SA6FJ6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146133496
A dimension IN	2.279
A dimension MM	57.900
Angle shape	Straight
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
End connection torque	18-20 lb-ft(24-27 Nm)
End size 1	-6
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 2 MM	17.462
Hose cut off factor IN	1.283
Hose cut off factor MM	32.600
Hose size	-6
Inside diameter IN	0.263
Inside diameter MM	6.700
Product height in	1.060
Product height mm	26.924
Product length in	2.280
Product length mm	57.912
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924
Series	1SA
Thread size 1	9/16-18 UNF
Working pressure max BAR	400
Working pressure max PSI	5800
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
