Braided hose and fittings Parts

Danfoss

20591-20-06TZN

HOSE NIPPLE ASSY,2P/06,DKOH-B/20,CS,90D

Danfoss

20591-20-06SRT

HOSE NIPPLE ASSY,2P/06,DKOH-B/20,AN,90D

Danfoss

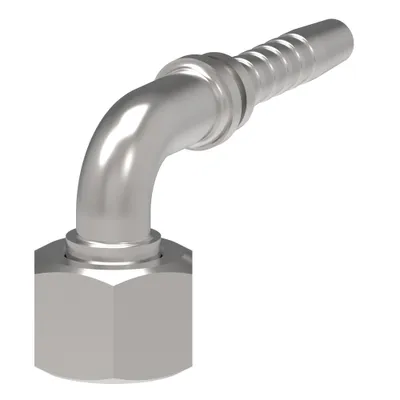

20591-20-05TZF

HOSE NIPPLE ASSY,2P/05,DKOH-B/20,CS,90D

Danfoss

20591-20-05TZ

HOSE NIPPLE ASSY,2P/05,DKOH-B/20,CS,90D

Danfoss

20591-18-05TZ

HOSE NIPPLE ASSY,2P/05,DKOH-B/18,CS,90D

Danfoss

20591-18-04TZN

HOSE NIPPLE ASSY,2P/04,DKOH-B/18,CS,90D

Danfoss

20591-18-04TZF

HOSE NIPPLE ASSY,2P/04,DKOH-B/18,CS,90D

Danfoss

20591-16-06WZ

HOSE NIPPLE ASSY,2P/06,DKOH-B/16,CS,90D

Danfoss

20591-16-05WZ

HOSE NIPPLE ASSY,2P/05,DKOH-B/16,CS,90D

Danfoss

20591-14-04WZ

HOSE NIPPLE ASSY,2P/04,DKOH-B/14,CS,90D

Danfoss

20541YT-36-12TZ

HOSE NIPPLE ASSY,1P/12,DKOH-B/36,CS,45D

Danfoss

20541YT-24-08TZ

HOSE NIPPLE ASSY,1P/08,DKOH-B/24,CS,45D

Danfoss

20541YT-20-06TZ

HOSE NIPPLE ASSY,1P/06,DKOH-B/20,CS,45D

Danfoss

20541Y-36-12TZ

HOSE NIPPLE ASSY,1P/12,DKOH-B/36,CS,45D

Danfoss

20541Y-30-10TZ

HOSE NIPPLE ASSY,1P/10,DKOH-B/30,CS,45D

Danfoss

20541Y-20-06TZ

HOSE NIPPLE ASSY,1P/06,DKOH-B/20,CS,45D

Danfoss

20541Y-18-06TZ

HOSE NIPPLE ASSY,1P/06,DKOH-B/18,CS,45D

Danfoss

20541Y-18-04SRT

HOSE NIPPLE ASSY,1P/04,DKOH-B/18,AN,45D

Danfoss

20541Y-16-04TZ

HOSE NIPPLE ASSY,1P/04,DKOH-B/16,CS,45D

Danfoss

20541-52-24TZ

HOSE NIPPLE ASSY,2P/24,DKOH-B/52,CS,45D

Danfoss

20541-52-20TZ

HOSE NIPPLE ASSY,2P/20,DKOH-B/52,CS,45D

Danfoss

20541-42-16TZF

HOSE NIPPLE ASSY,2P/16,DKOH-B/42,CS,45D

Danfoss

20541-42-12TZ

HOSE NIPPLE ASSY,2P/12,DKOH-B/42,CS,45D

Danfoss

20541-36-16WZ

HOSE NIPPLE ASSY,2P/16,DKOH-B/36,CS,45D

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Drop dimension IN	Product height in	Product height mm	Product length in	Product length mm
20591-20-06TZN	1.397	1.790	45.466	3.080	78.232
20591-20-06SRT	1.397	1.790	45.466	3.080	78.232
20591-20-05TZF	1.338	1.713	43.510	2.874	72.999
20591-20-05TZ	1.338	1.713	43.510	2.874	72.999
20591-18-05TZ	1.318	1.634	41.503	2.835	72.009
20591-18-04TZN	1.259	1.555	39.497	2.717	69.011
20591-18-04TZF	1.259	1.555	39.497	2.717	69.011
20591-16-06WZ	1.218	1.575	40.005	2.736	69.494
20591-16-05WZ	1.218	1.555	39.497	2.657	67.487
20591-14-04WZ	1.200	1.480	37.592	2.618	66.497
20541YT-36-12TZ	1.200	2.744	69.697	5.063	128.600
20541YT-24-08TZ	0.830	1.909	48.488	3.693	93.802
20541YT-20-06TZ	0.730	1.594	40.487	3.327	84.505
20541Y-36-12TZ	1.200	2.740	69.596	5.060	128.524
20541Y-30-10TZ	0.980	2.224	56.489	4.303	109.296
20541Y-20-06TZ	0.730	1.594	40.487	3.327	84.505
20541Y-18-06TZ	0.681	1.439	36.551	3.339	84.810
20541Y-18-04SRT	0.670	1.551	39.400	2.641	67.100
20541Y-16-04TZ	0.640	1.522	38.658	3.041	77.241
20541-52-24TZ	1.708	3.943	100.152	8.351	212.115
20541-52-20TZ	1.550	3.677	93.395	7.311	185.699
20541-42-16TZF	1.400	3.165	80.391	6.024	153.010
20541-42-12TZ	1.263	2.913	73.990	5.205	132.207
20541-36-16WZ	1.230	3.090	78.486	6.170	156.718

Common to all listed parts

Construction Style	Crimp
End Type 1	24 deg. DKO swivel heavy duty
Working temperature min C	-40
Working temperature min F	-40
