Danfoss 20541-36-16WZ

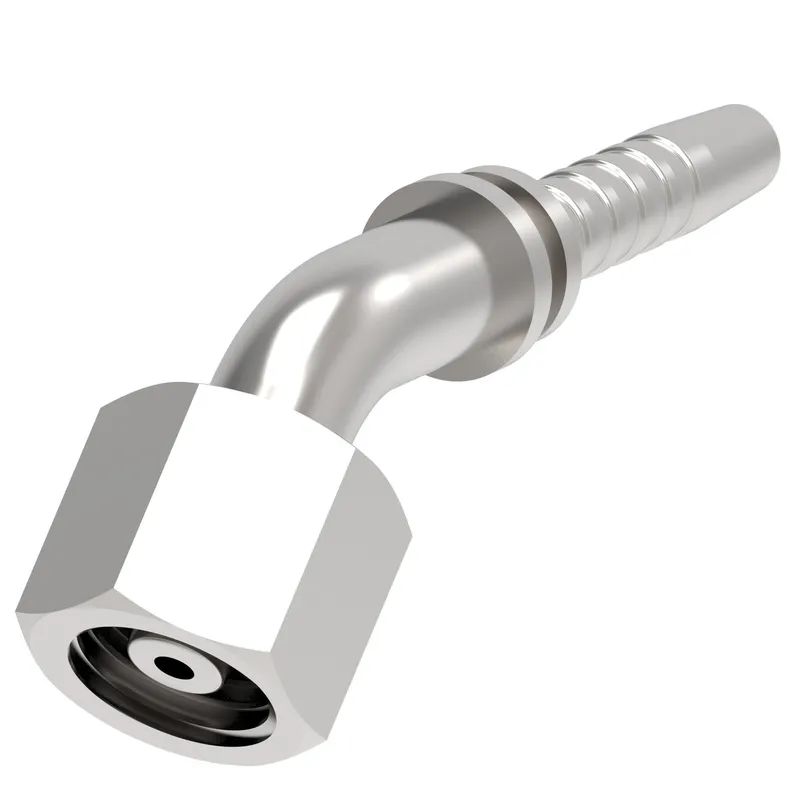

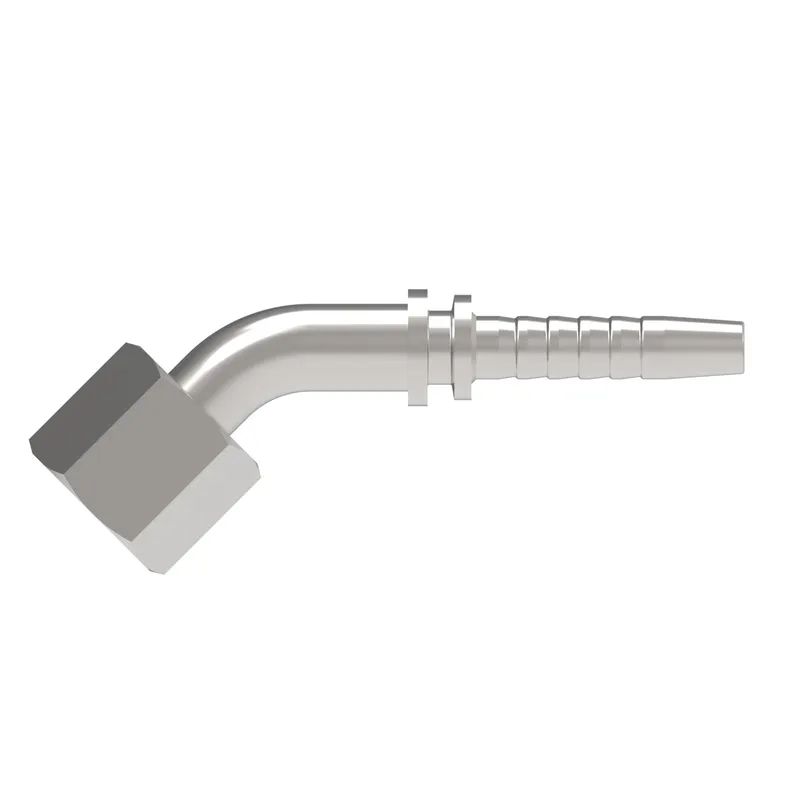

HOSE NIPPLE ASSY,2P/16,DKOH-B/36,CS,45D

MPN
20541-36-16WZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20541-36-16WZ?

Danfoss HOSE NIPPLE ASSY,2P/16,DKOH-B/36,CS,45D, manufacturer part number 20541-36-16WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.900
A dimension MM124.400
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Construction StyleCrimp
Drop dimension IN1.230
Drop dimension MM31.20
End connection torque125-140 lb-ft(170-190 Nm)
End Type 124 deg. DKO swivel heavy duty
Finish platingZinc plating
Hose cut off factor IN3.050
Hose cut off factor MM77.400
Hose size-16
Inside diameter IN0.830
Inside diameter MM21.000
Product height in3.090
Product height mm78.486
Product length in6.170
Product length mm156.718
Product materialCarbon steel
Product width in1.810
Product width mm45.974
Proposition 65Cancer and Reproductive Harm
SeriesWinner 2-Piece
Thread size 1M36x2
Tube OD 1 IN0.984
Tube OD 1 MM25.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

20541-36-16WZ: frequently asked questions

When can 20541-36-16WZ be shipped?

20541-36-16WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20541-36-16WZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20541-36-16WZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20541-36-16WZ, subject to availability and destination.
