Danfoss 20591-20-05TZ

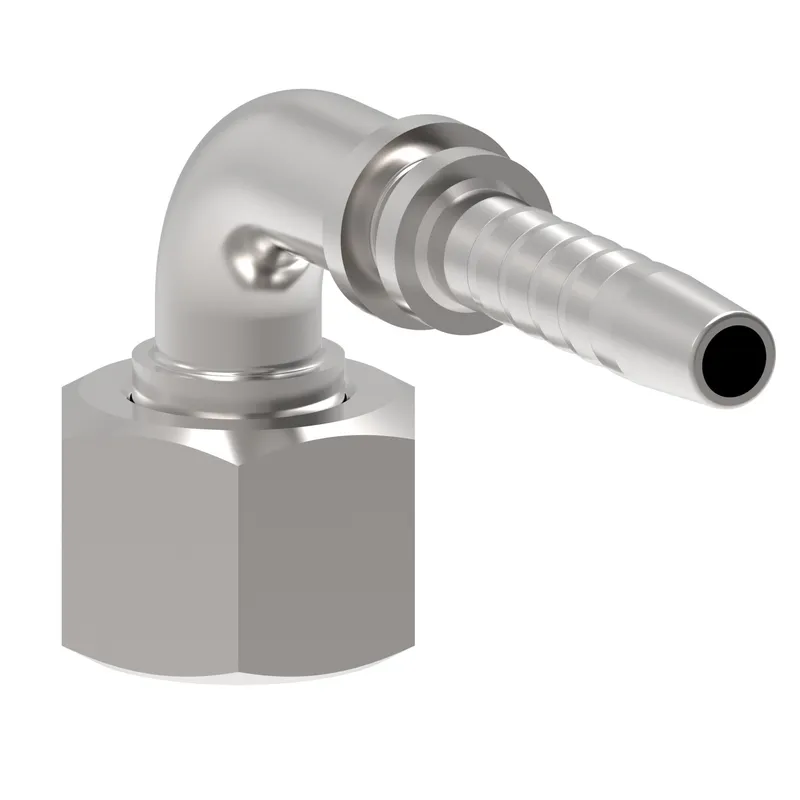

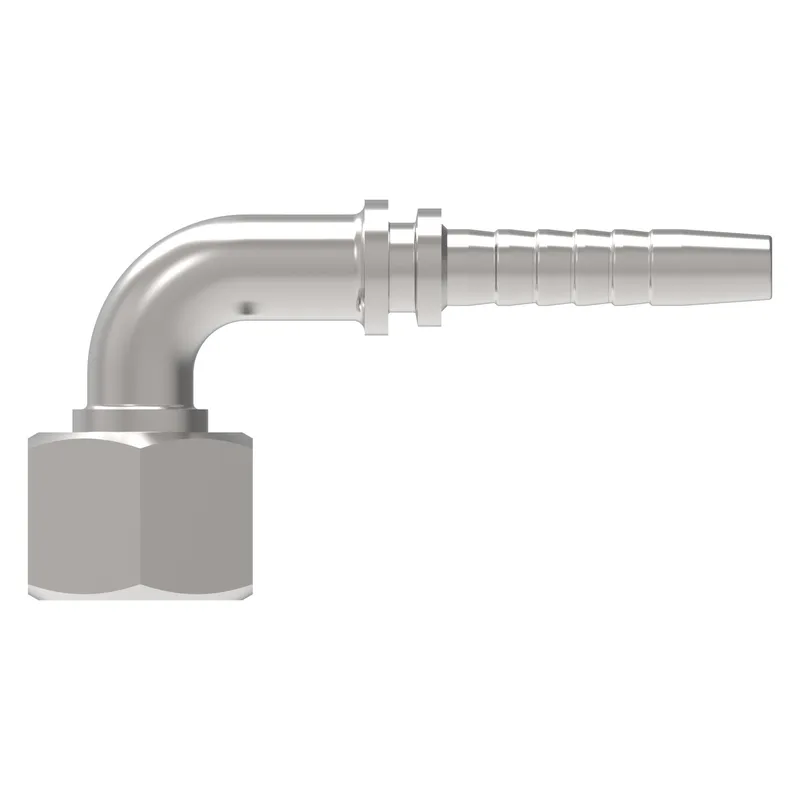

HOSE NIPPLE ASSY,2P/05,DKOH-B/20,CS,90D

MPN: 20591-20-05TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591-20-05TZ?

Danfoss HOSE NIPPLE ASSY,2P/05,DKOH-B/20,CS,90D, manufacturer part number 20591-20-05TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.401
A dimension MM	61.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
Drop dimension IN	1.338
Drop dimension MM	34.00
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	0.945
Hose cut off factor IN	1.299
Hose cut off factor MM	33.000
Hose size	-5
Inside diameter IN	0.216
Inside diameter MM	5.500
Product height in	1.713
Product height mm	43.510
Product length in	2.874
Product length mm	72.999
Product material	Carbon steel
Product width in	0.945
Product width mm	24.003
Proposition 65	Cancer and Reproductive Harm
Series	Winner 2-Piece
Thread size 1	M20x1.5
Tube OD 1 IN	0.472
Tube OD 1 MM	12.000
Working temperature max C	100
Working temperature min C	-40
Working temperature min F	-40
