Danfoss 20541Y-30-10TZ

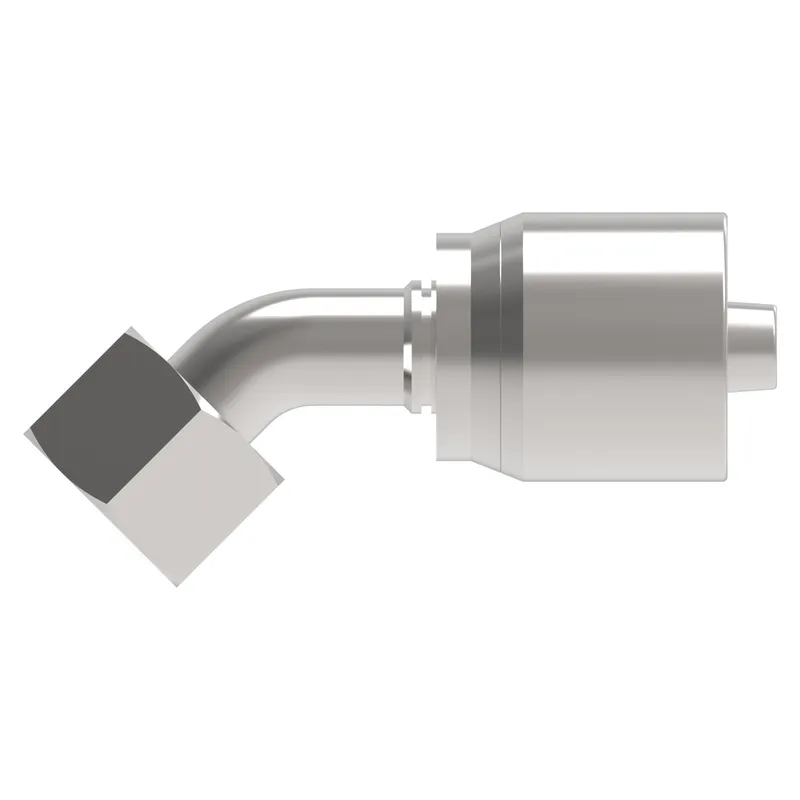

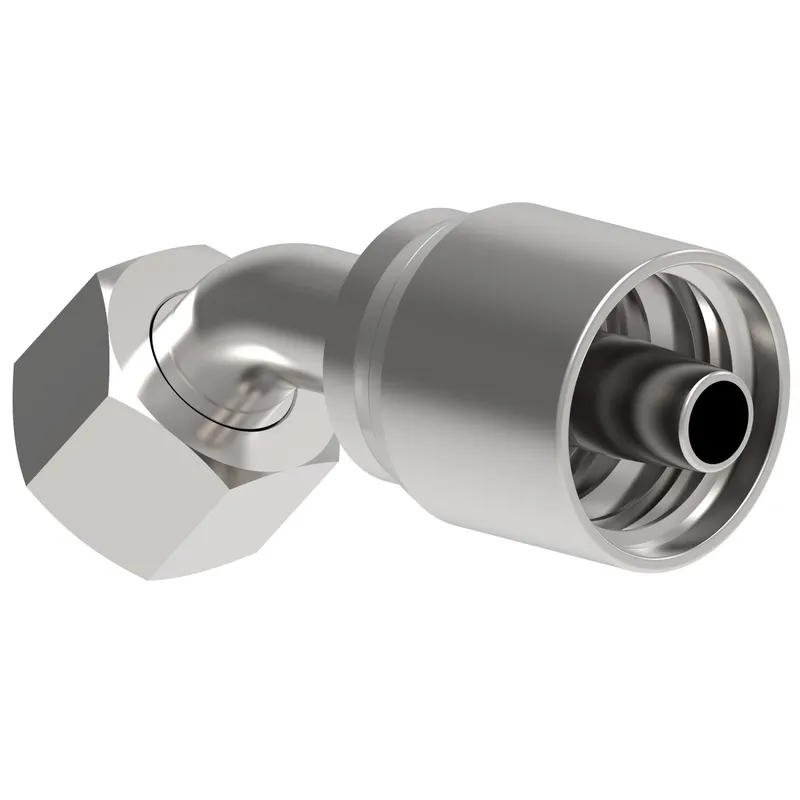

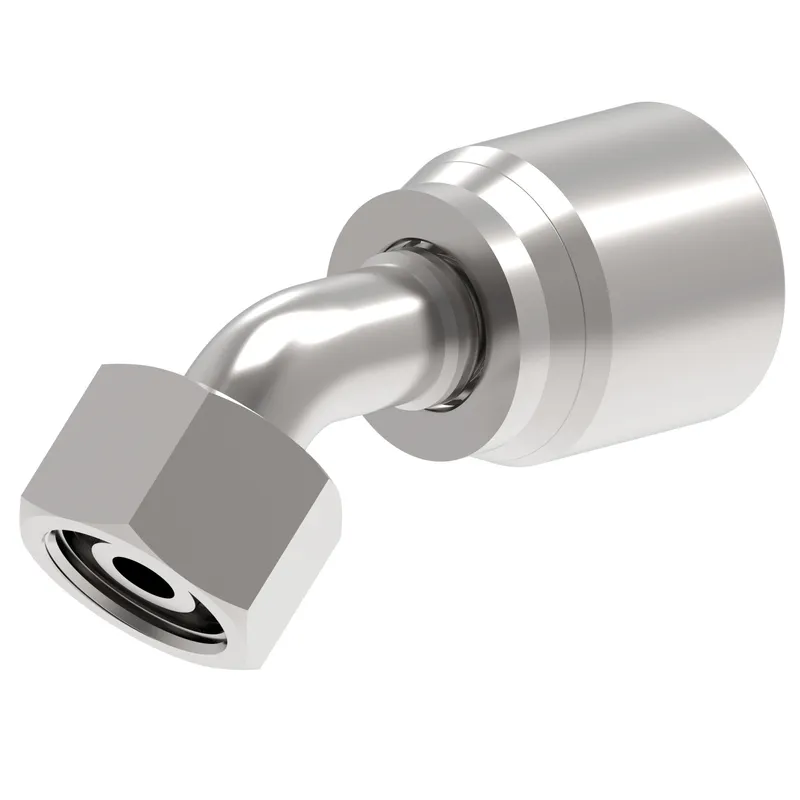

HOSE NIPPLE ASSY,1P/10,DKOH-B/30,CS,45D

MPN
20541Y-30-10TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20541Y-30-10TZ?

Danfoss HOSE NIPPLE ASSY,1P/10,DKOH-B/30,CS,45D, manufacturer part number 20541Y-30-10TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.590
A dimension MM91.300
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.620
Compatible hose ID MM15.900
Construction StyleCrimp
Drop dimension IN0.980
Drop dimension MM25.00
End Type 124 deg. DKO swivel heavy duty
Finish platingZinc plating
Hex size 1 IN1.417
Hex size 1 MM35.992
Hose cut off factor IN2.260
Hose cut off factor MM57.300
Hose size-10
Inside diameter IN0.470
Inside diameter MM12.000
Product height in2.224
Product height mm56.489
Product length in4.303
Product length mm109.296
Product materialCarbon steel
Product width in1.417
Product width mm35.991
Thread sealantNo
Thread size 1M30x2
Tube OD 1 IN0.787
Tube OD 1 MM20.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

20541Y-30-10TZ: frequently asked questions

When can 20541Y-30-10TZ be shipped?

20541Y-30-10TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20541Y-30-10TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20541Y-30-10TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20541Y-30-10TZ, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss 20541Y-16-04TZ – HOSE NIPPLE ASSY,1P/04,DKOH-B/16,CS,45D
Danfoss
20541Y-16-04TZ

HOSE NIPPLE ASSY,1P/04,DKOH-B/16,CS,45D

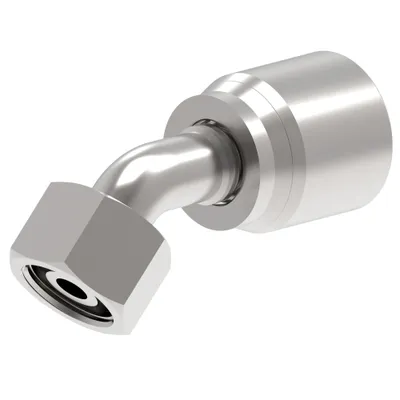

Danfoss 20541Y-18-04SRT – HOSE NIPPLE ASSY,1P/04,DKOH-B/18,AN,45D
