Danfoss 20591-16-06WZ

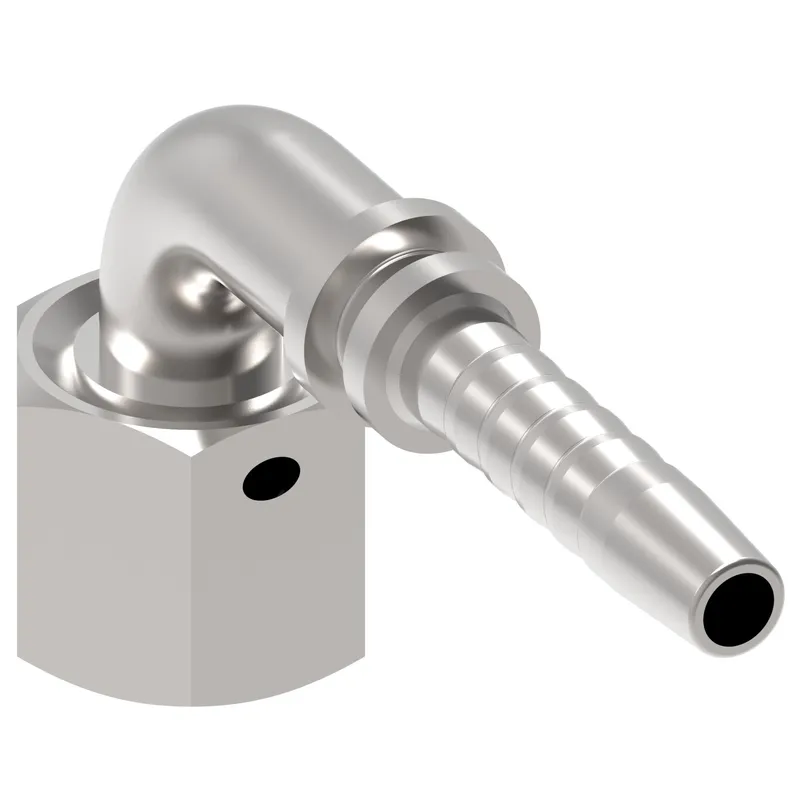

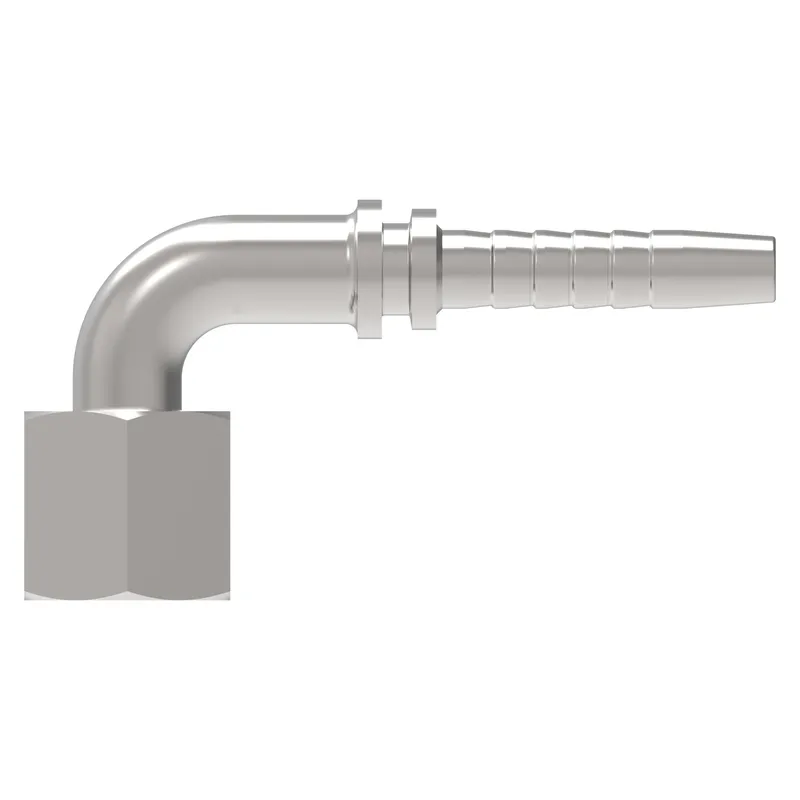

HOSE NIPPLE ASSY,2P/06,DKOH-B/16,CS,90D

MPN: 20591-16-06WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591-16-06WZ?

Danfoss HOSE NIPPLE ASSY,2P/06,DKOH-B/16,CS,90D, manufacturer part number 20591-16-06WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.362
A dimension MM	60.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	1.218
Drop dimension MM	31.00
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	0.748
Hex size 1 MM	19.000
Hose cut off factor IN	1.179
Hose cut off factor MM	30.000
Hose size	-6
Inside diameter IN	0.275
Inside diameter MM	7.000
Product height in	1.575
Product height mm	40.005
Product length in	2.736
Product length mm	69.494
Product material	Carbon steel
Product width in	0.748
Product width mm	18.999
Proposition 65	Cancer and Reproductive Harm
Series	Winner 2-Piece
Thread size 1	M16x1.5
Tube OD 1 IN	0.314
Tube OD 1 MM	8.000
Working temperature max C	100
Working temperature min C	-40
Working temperature min F	-40

20591-16-06WZ: frequently asked questions

When can 20591-16-06WZ be shipped?

20591-16-06WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20591-16-06WZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20591-16-06WZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20591-16-06WZ, subject to availability and destination.
