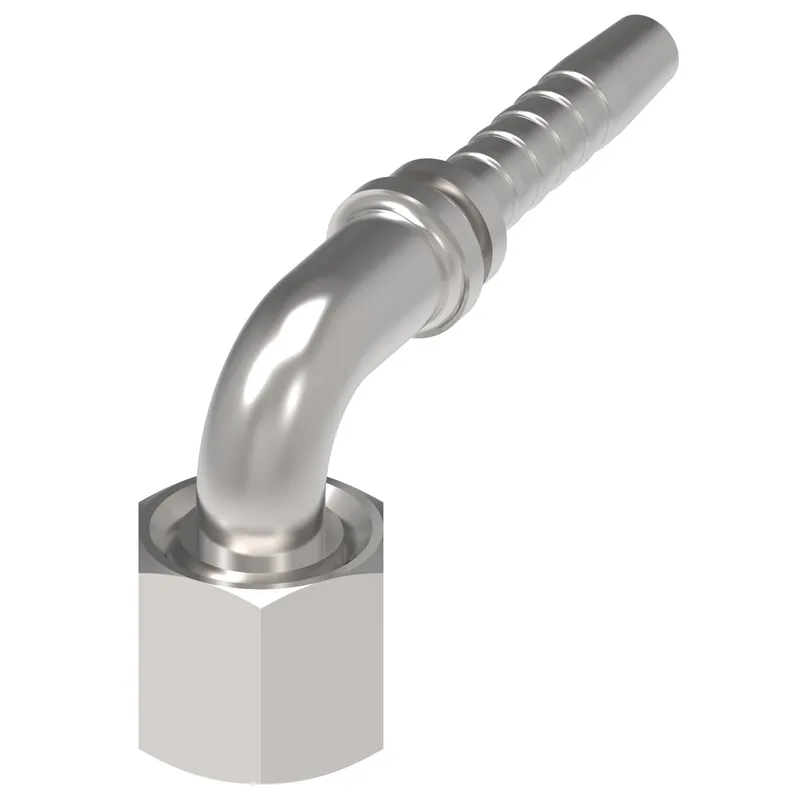

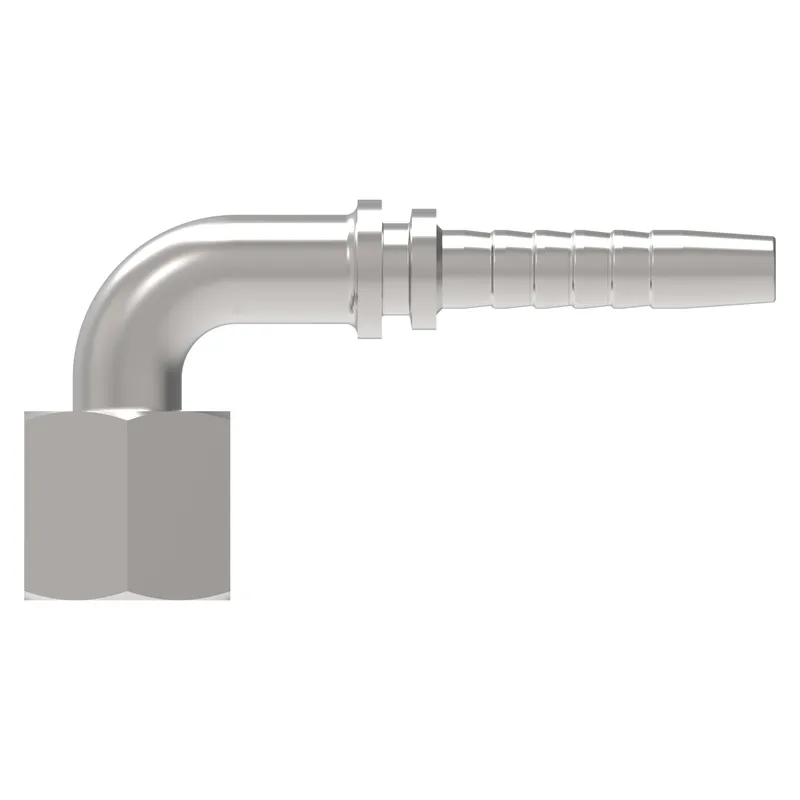

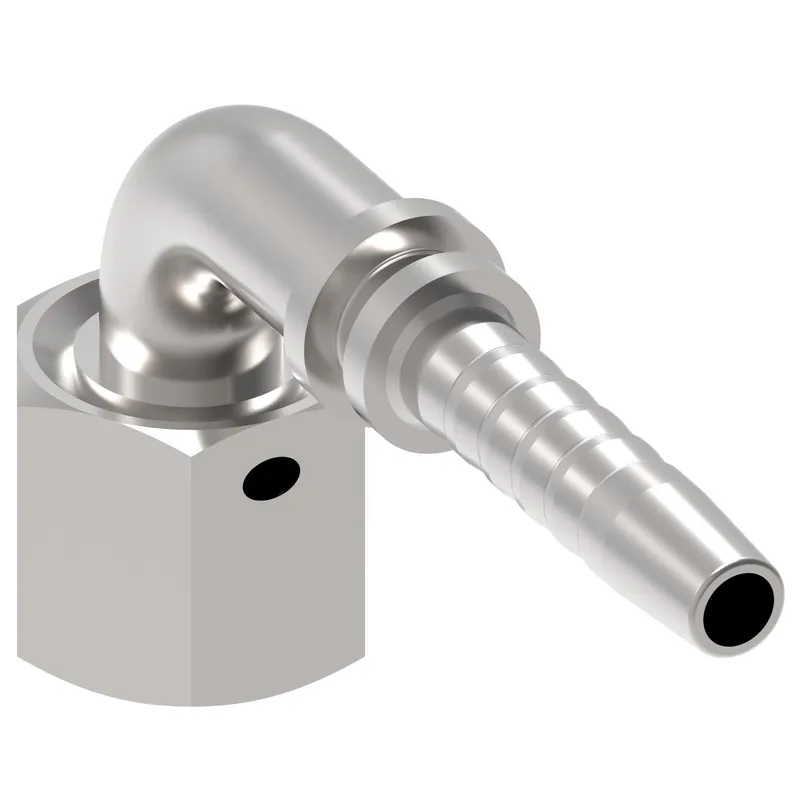

Danfoss 20591-14-04WZ

HOSE NIPPLE ASSY,2P/04,DKOH-B/14,CS,90D

MPN: 20591-14-04WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591-14-04WZ?

Danfoss HOSE NIPPLE ASSY,2P/04,DKOH-B/14,CS,90D, manufacturer part number 20591-14-04WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.283
A dimension MM	58.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
Drop dimension IN	1.200
Drop dimension MM	30.50
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hose cut off factor IN	1.179
Hose cut off factor MM	30.000
Hose size	-4
Inside diameter IN	0.157
Inside diameter MM	4.000
Product height in	1.480
Product height mm	37.592
Product length in	2.618
Product length mm	66.497
Product material	Carbon steel
Product width in	0.669
Product width mm	16.992
Proposition 65	Cancer and Reproductive Harm
Series	Winner 2-Piece
Thread size 1	M16x1.5
Tube OD 1 IN	0.236
Tube OD 1 MM	6.000
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

20591-14-04WZ: frequently asked questions

When can 20591-14-04WZ be shipped?

20591-14-04WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20591-14-04WZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20591-14-04WZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20591-14-04WZ, subject to availability and destination.
