Danfoss 20541Y-18-06TZ

HOSE NIPPLE ASSY,1P/06,DKOH-B/18,CS,45D

MPN
20541Y-18-06TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

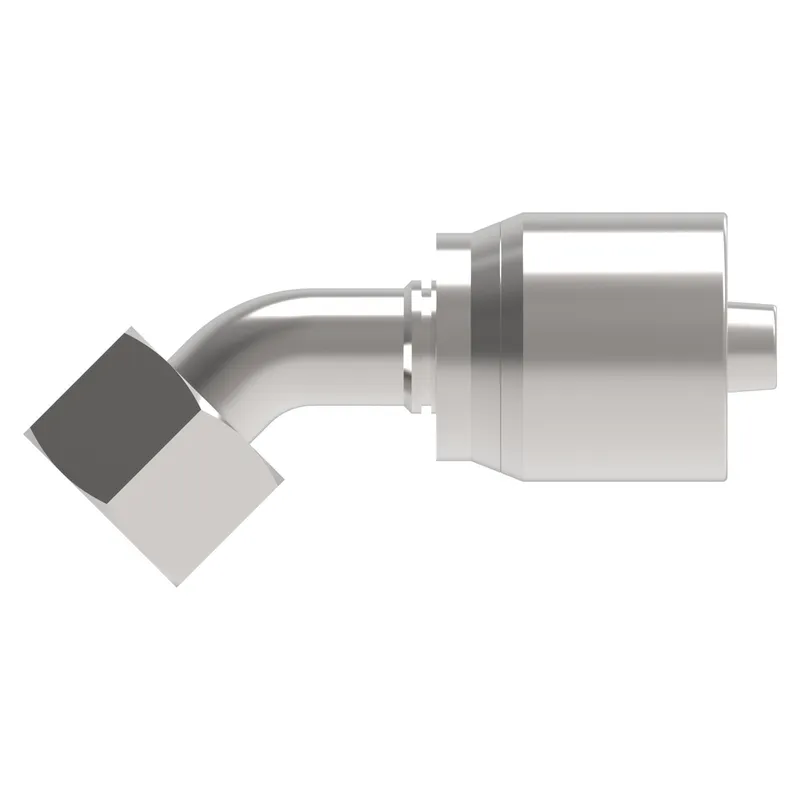

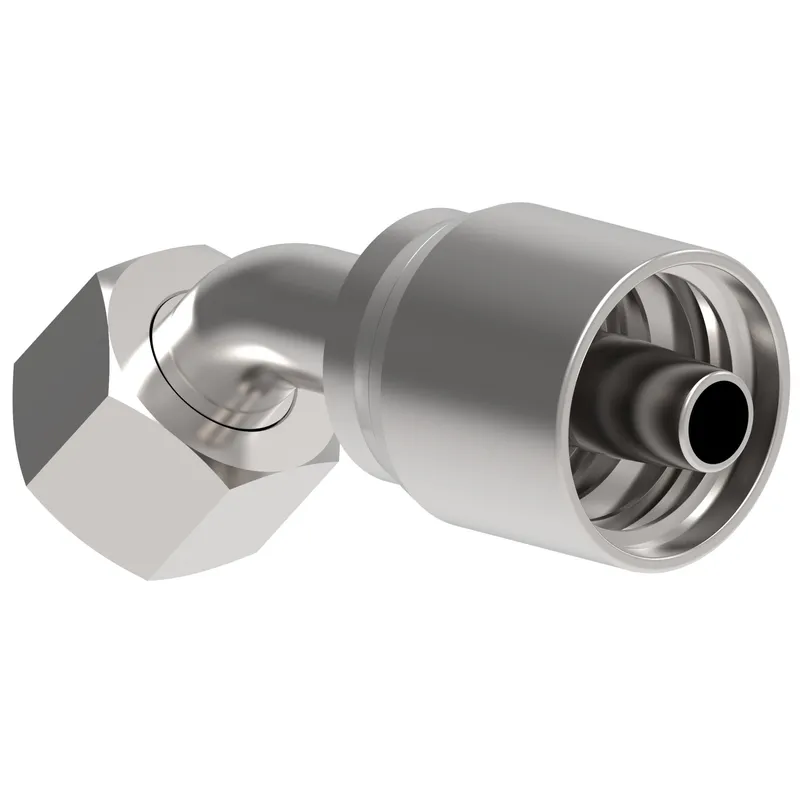

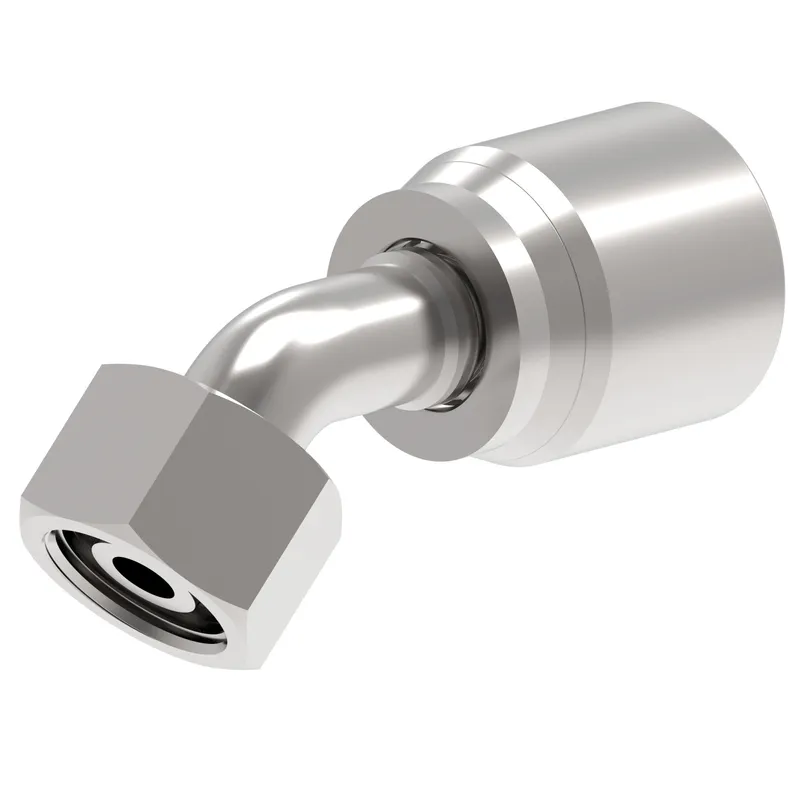

What is the Danfoss 20541Y-18-06TZ?

Danfoss HOSE NIPPLE ASSY,1P/06,DKOH-B/18,CS,45D, manufacturer part number 20541Y-18-06TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.905
A dimension MM73.800
Angle shape45 Degree
Compatible hose ID IN0.380
Compatible hose ID MM9.500
Construction StyleCrimp
Drop dimension IN0.681
Drop dimension MM17.30
End connection torque37-44 lb-ft(50-60 Nm)
End Type 124 deg. DKO swivel heavy duty
Finish platingZinc plating
Hose cut off factor IN1.724
Hose cut off factor MM43.800
Hose size-6
Inside diameter IN0.275
Inside diameter MM7.000
Product height in1.439
Product height mm36.551
Product length in3.339
Product length mm84.810
Product materialCarbon steel
Product width in0.866
Product width mm21.994
Thread size 1M18x1.5
Tube OD 1 IN0.393
Tube OD 1 MM10.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

20541Y-18-06TZ: frequently asked questions

When can 20541Y-18-06TZ be shipped?

20541Y-18-06TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20541Y-18-06TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20541Y-18-06TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20541Y-18-06TZ, subject to availability and destination.
