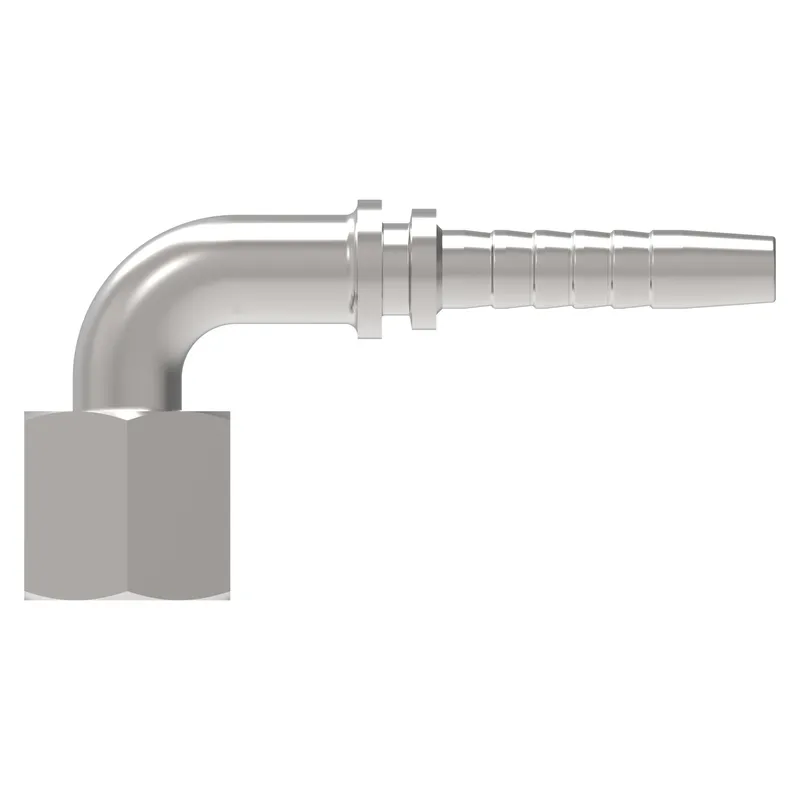

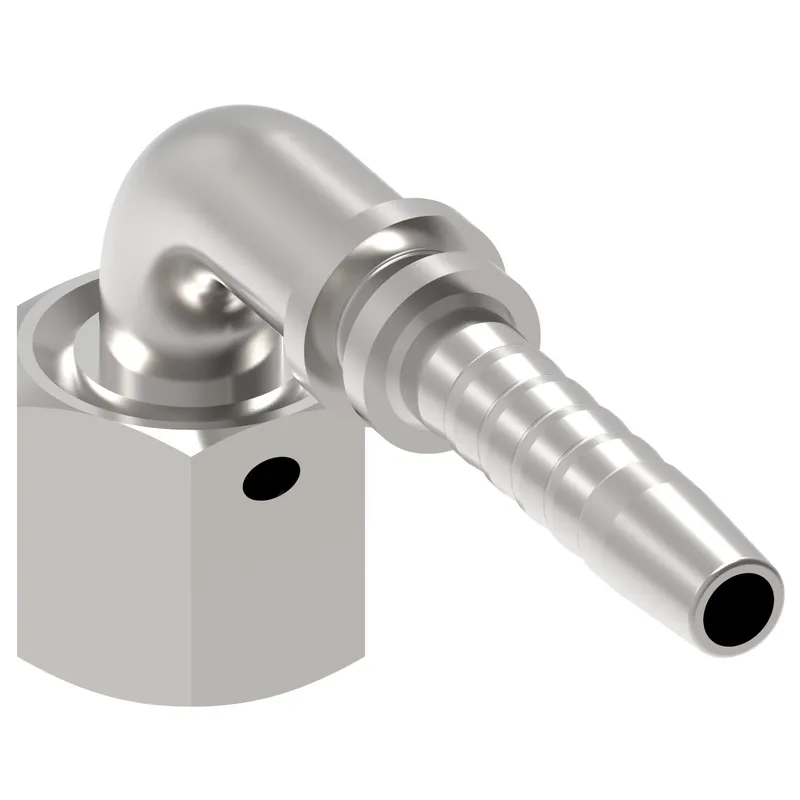

Danfoss 20591-16-05WZ

HOSE NIPPLE ASSY,2P/05,DKOH-B/16,CS,90D

MPN: 20591-16-05WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591-16-05WZ?

Danfoss HOSE NIPPLE ASSY,2P/05,DKOH-B/16,CS,90D, manufacturer part number 20591-16-05WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.283
A dimension MM	58.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
Drop dimension IN	1.218
Drop dimension MM	31.00
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	0.750
Hex size 1 MM	19.050
Hex size 2 IN	0.748
Hex size 2 MM	18.999
Hose cut off factor IN	1.179
Hose cut off factor MM	30.000
Hose size	-5
Inside diameter IN	0.216
Inside diameter MM	5.500
Product height in	1.555
Product height mm	39.497
Product length in	2.657
Product length mm	67.487
Product material	Carbon steel
Product width in	0.748
Product width mm	18.999
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M16x1.5
Tube OD 1 IN	0.314
Tube OD 1 MM	8.000
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
