Danfoss 20541YT-20-06TZ

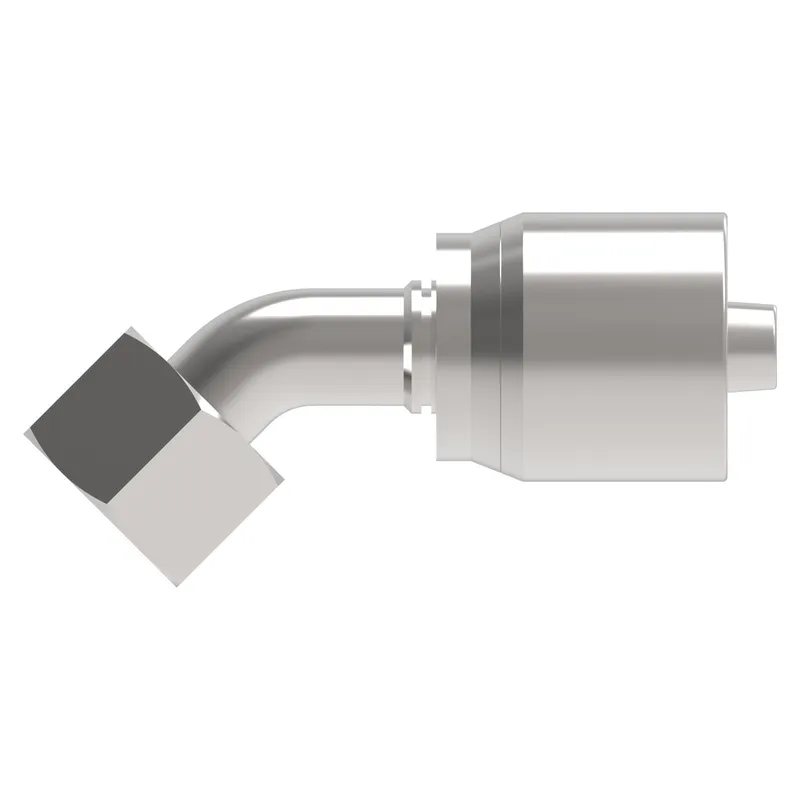

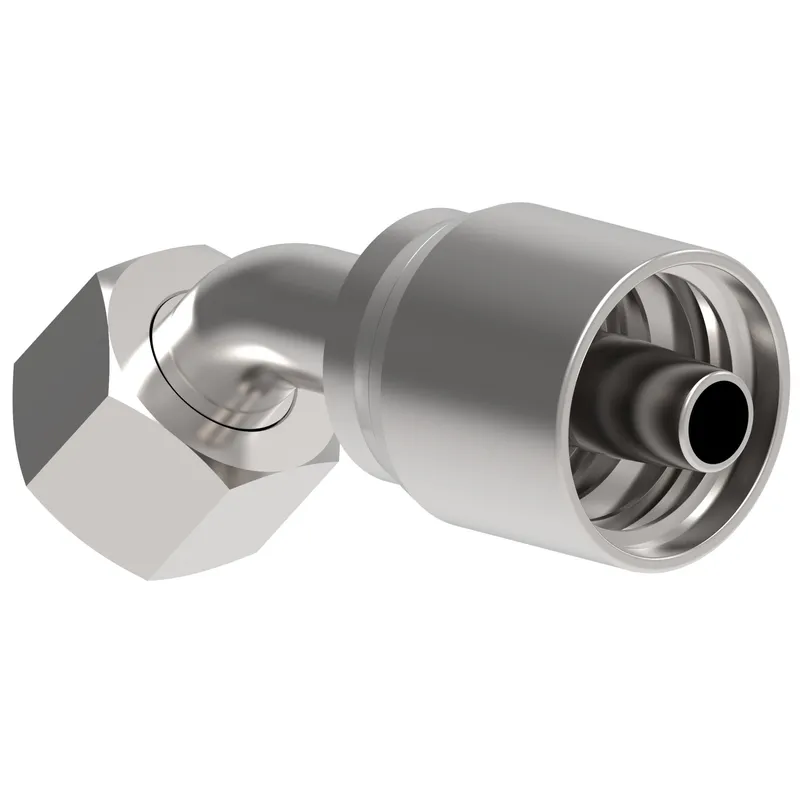

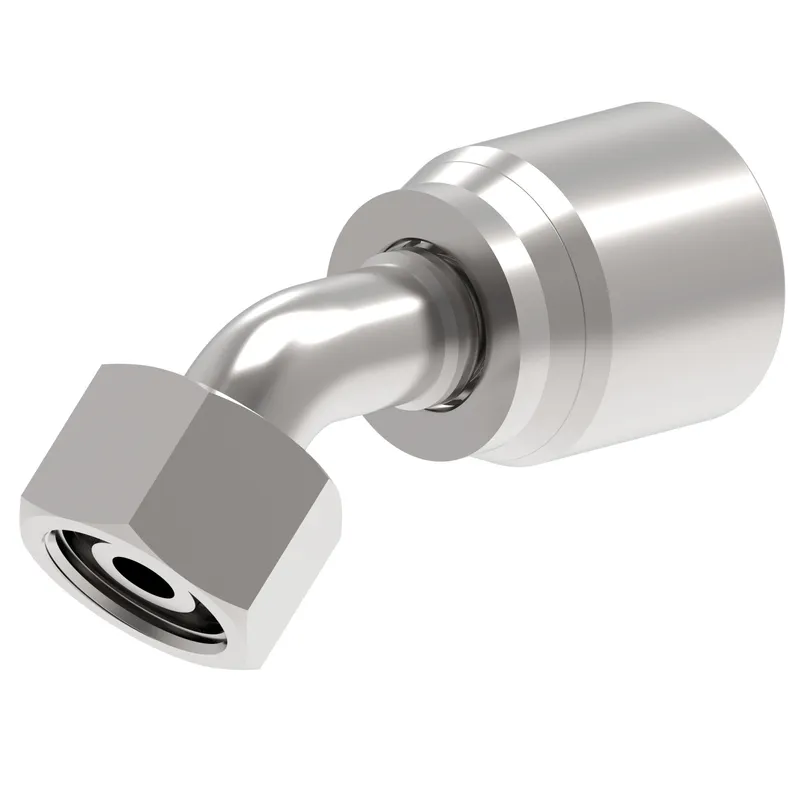

HOSE NIPPLE ASSY,1P/06,DKOH-B/20,CS,45D

MPN
20541YT-20-06TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20541YT-20-06TZ?

Danfoss HOSE NIPPLE ASSY,1P/06,DKOH-B/20,CS,45D, manufacturer part number 20541YT-20-06TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.849
A dimension MM72.500
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.500
Construction StyleCrimp
Drop dimension IN0.730
Drop dimension MM18.50
End Type 124 deg. DKO swivel heavy duty
Finish platingZinc plating
Hex size 1 IN0.945
Hex size 1 MM24.003
Hose cut off factor IN1.670
Hose cut off factor MM42.500
Hose size-6
Inside diameter IN0.275
Inside diameter MM7.000
Product height in1.594
Product height mm40.487
Product length in3.327
Product length mm84.505
Product materialCarbon steel
Product width in0.945
Product width mm24.003
Thread sealantNo
Thread size 1M20x1.5
Tube OD 1 IN0.472
Tube OD 1 MM12.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

20541YT-20-06TZ: frequently asked questions

When can 20541YT-20-06TZ be shipped?

20541YT-20-06TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20541YT-20-06TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20541YT-20-06TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20541YT-20-06TZ, subject to availability and destination.
