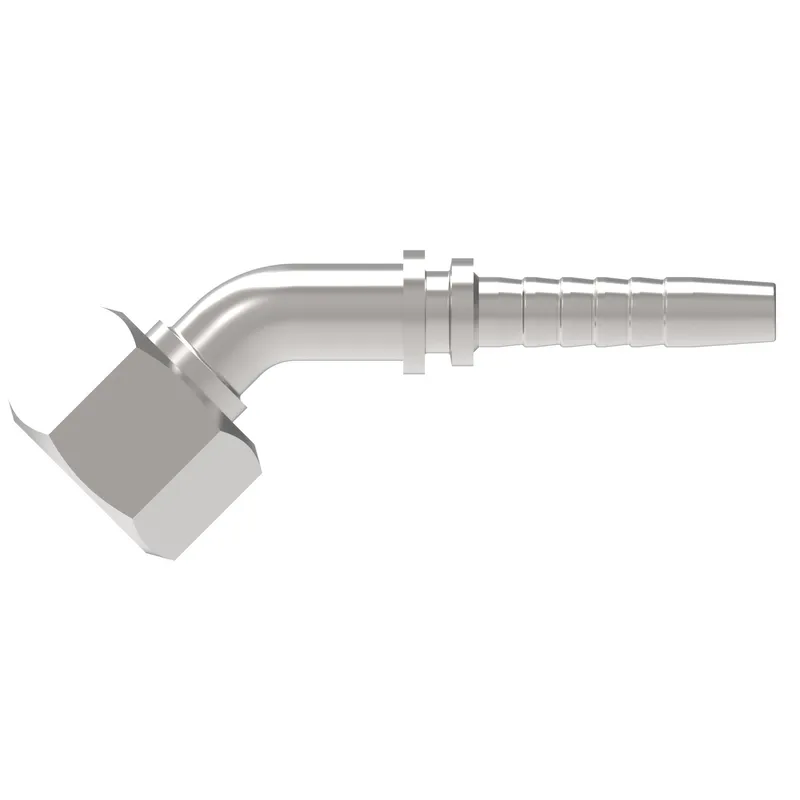

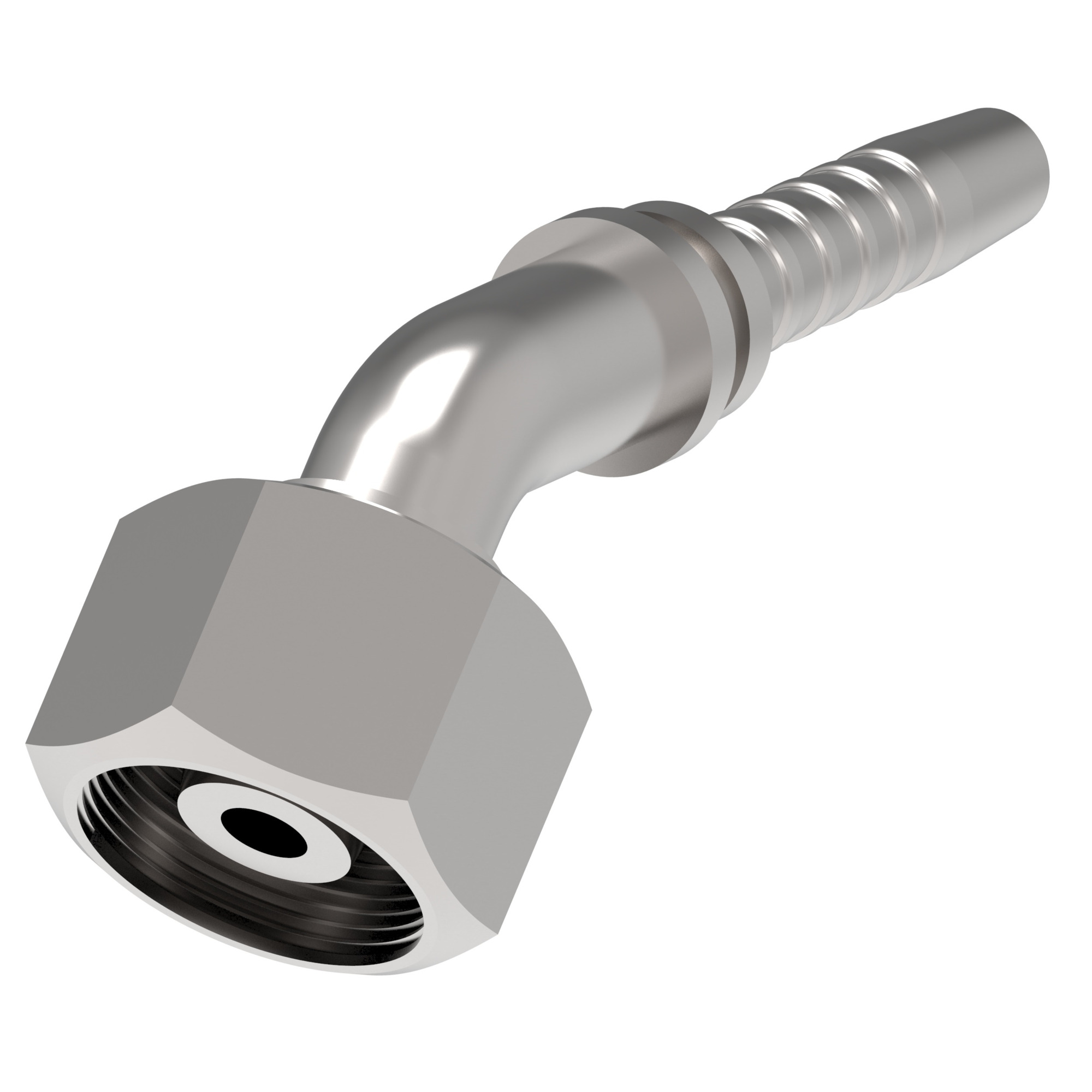

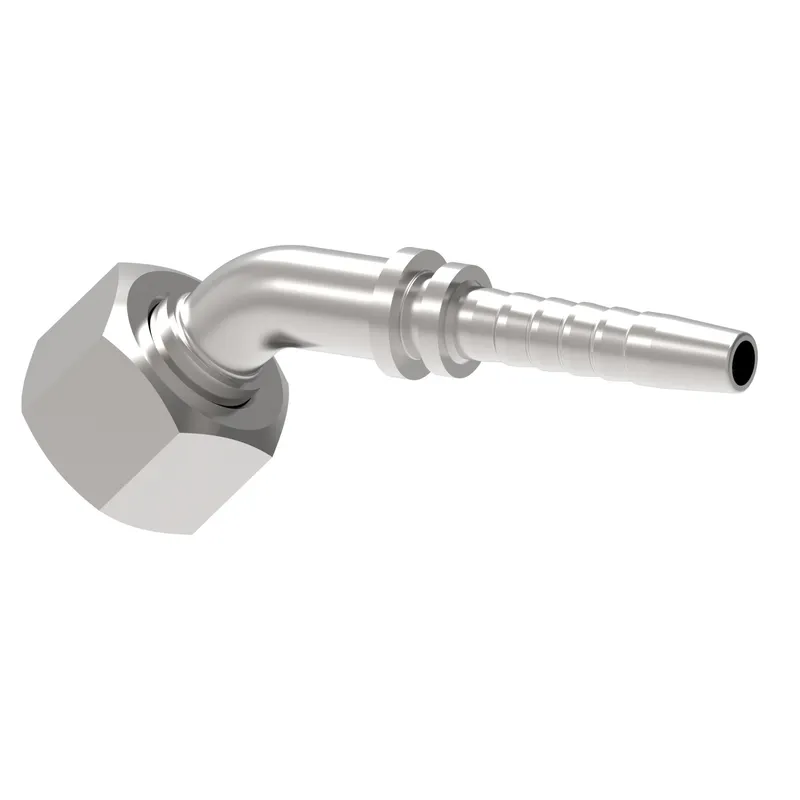

What is the Danfoss 20541-52-20TZ?

Danfoss HOSE NIPPLE ASSY,2P/20,DKOH-B/52,CS,45D, manufacturer part number 20541-52-20TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN6.130
A dimension MM155.700
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.800
Construction StyleCrimp
Drop dimension IN1.550
Drop dimension MM39.40
End connection torque210-280 lb-ft(285-380 Nm)
End Type 124 deg. DKO swivel heavy duty
Finish platingZinc plating
Hose cut off factor IN4.000
Hose cut off factor MM101.700
Hose size-20
Inside diameter IN1.060
Inside diameter MM27.000
Product height in3.677
Product height mm93.395
Product length in7.311
Product length mm185.699
Product materialCarbon steel
Product width in2.362
Product width mm59.994
Proposition 65Cancer and Reproductive Harm
SeriesWinner 2-Piece
Thread size 1M52x2
Tube OD 1 IN1.496
Tube OD 1 MM38.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
