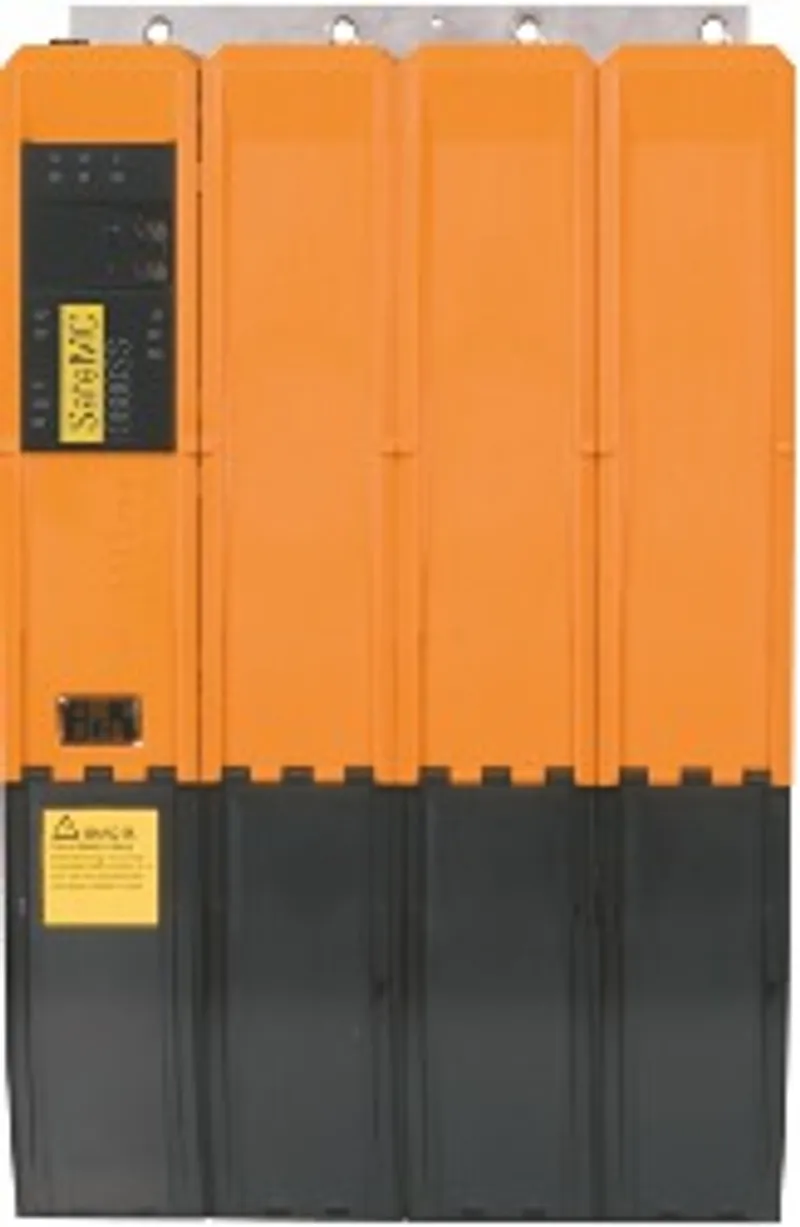

B&R 8BVI0880HCSS.008-1

Name: B&R 8BVI0880HCSS.008-1
Brand: B&R
SKU: 8BVI0880HCSS.008-1

MPN: 8BVI0880HCSS.008-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Cold plate or feed-through mounting
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 8BVI0880HCSS.008-1 be shipped?

8BVI0880HCSS.008-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8BVI0880HCSS.008-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8BVI0880HCSS.008-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BVI0880HCSS.008-1, subject to availability and destination.

ACOPOSmulti SafeMOTION EnDat 2.2 inverter module, 88 A, AS, cold plate or pass-through mounting

Specifications

B&R ID code	0x2C21
Dynamic node allocation (DNA)	Yes
Cooling and mounting type	Cold plate or pass-through mounting
Slots for plug-in modules	2
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Evaluation ongoing
Functional safety	Yes (openSAFETY)
UL	cULus E225616 Power conversion equipment
Nominal	5 to 40°C
Continuous power consumption	65 kW
Switching frequency 5 kHz	25 m
Switching frequency 10 kHz	25 m
Switching frequency 20 kHz	25 m
DC bus capacitance	1980 µF
Variant	ACOPOSmulti backplane
Input voltage	25 VDC ±1.6%
Input capacitance	32.9 µF
Max. power consumption	33 W + PSMC1 + PSLOT2 + P24 V Out + PHoldingBrake
Quantity	1
DC bus voltage (UDC): 260 to 315 VDC	25 VDC * (UDC/315)
DC bus voltage (UDC): 315 to 800 VDC	24 VDC ±6%
Fuse protection	250 mA (slow-blow) electronic, automatic reset
Continuous power per motor connection	64 kW
Continuous current per motor connection	88 Aeff
Cold plate mounting	0.75 A/K (starting at -37°C)
Pass-through mounting	209 mm
Starting at 500 m above sea level	8.8 Aeff per 1000 m
Peak current	176 Aeff
Nominal switching frequency	5 kHz
Possible switching frequencies	5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004	Limit value curve A
Overload protection	Yes
Short-circuit and ground fault protection	Yes
Max. output frequency	598 Hz
U, V, W, PE	M8 threaded bolts
Shield connection	Yes
Flexible and fine-stranded wires	---
Terminal cable cross section dimension of shield connection	12 to 50 mm
Output voltage	Typ. 12.5 V
Continuous current per connection	4.2 A
Max. internal resistance	0.15 Ω
Extinction potential	Approx. 30 V
Max. extinction energy per switching operation	3 Ws
Max. switching frequency	0.5 Hz
Overload and short-circuit protection	Yes
Open-circuit monitoring	Yes
Undervoltage monitoring	Yes
Response threshold for open-circuit monitoring	Approx. 0.5 A
Response threshold for undervoltage monitoring	24 VDC -2% / -4%
Type	EnDat 2.2
Connections	9-pin female DSUB connector
Status indicators	UP/DN LEDs
Encoder - ACOPOSmulti	No
Encoder monitoring	Yes
Max. encoder cable length	100 m Depends on the cross section of the power supply wires in the encoder cable
Load capacity	350 mA
Short-circuit proof	Yes
Overload-proof	Yes
Signal transmission	RS485
Data transfer rate	6.25 Mbit/s
Max. power consumption per encoder interface	PSMC[W] = 19 V * IEncoder[A]
Circuit	Sink
Input - Inverter module	Yes
Input - Input	Yes
Maximum	55°C
Low	<5 V
High	>15 V
Input current at nominal voltage	Approx. 10 mA
Rising edge	52 µs ±0.5 µs (digitally filtered)
Falling edge	53 µs ±0.5 µs (digitally filtered)
Modulation compared to ground potential	Max. ±38 V
Resistance range	500 Ω to 5 kΩ
Discharge capacitance	0.44 µF
Power dissipation relative to continuous apparent power	IE2 (10,25) 0.8% IE2 (50,25) 0.8% IE2 (10,50) 1.1% IE2 (50,50) 1.1% IE2 (90,50) 1.1% IE2 (10,100) 1.9% IE2 (50,100) 1.9% IE2 (90,100) 1.9%
Nominal losses in standby mode	11.3 W
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20
Storage	5 to 95%
Transport	Max. 95% at 40°C
Operation	5 to 85%
Width	213.5 mm
Height	317 mm
Cold plate	212 mm
Weight	Approx. 7.8 kg
Module width	4
