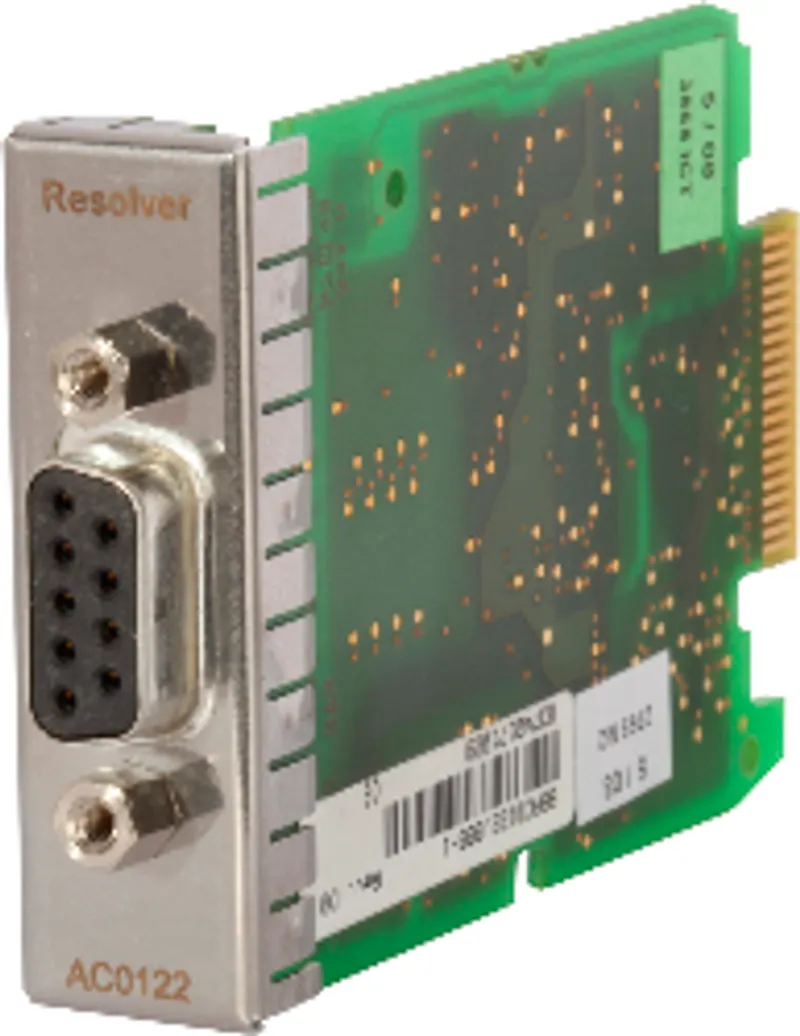

B&R 8BAC0122.000-1

Resolver interface for installation in ACOPOSmulti modules

MPN: 8BAC0122.000-1
Category: Plug-in modules

€316.94excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 8BAC0122.000-1?

Resolver interface for installation in ACOPOSmulti modules

Encoder monitoring

High resolution

ACOPOSmulti plug-in module, resolver interface 10 kHz

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOSmulti plug-in module
B&R ID code	0x20B6
Slot	Slots 1 and 2
Max. power consumption	1 W

Encoder connection

Electrical isolation – Encoder - ACOPOSmulti	No
Module-side connection	9-pin male DSUB connector
Status indicators	UP/DN LEDs
Encoder monitoring	Yes
Max. encoder cable length	100 m

Encoder power supply

Protective measures – Overload-proof	Yes
Protective measures – Short-circuit proof	Yes
Output voltage	Typ. 3 V eff
Output current	Max. 50 mA eff
Frequency	10 kHz

Position

Resolution @ ü = 0.5

Number of pole pairs * 22600 (note: This value does not correspond to the encoder resolution that must be configured in Automation Studio (65536).)

Analog inputs

Digital converter resolution	14-bit
Input impedance	10.4 kΩ - j 11.1 kΩ
Input voltage	Resolver transformation ratio: 0.5 ±10% (note: Starting with firmware V2.040, the nominal gear ratio can be configured in the range 0.3 ... 0.5 (default value). Starting with firmware V2.230, the nominal gear ratio can be configured in the range 0.2 ... 0.5 (default value).)
Common-mode voltage	Max. ±20 V
Signal transmission	Differential signals

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Accessories

Optional accessories (6)

8BCR0025.1111A-0	Resolver cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors; speedt…
8BCR0020.1111A-0	Resolver cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors; speedt…
8BCR0015.1111A-0	Resolver cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors; speedtec - Innovative…
8BCR0010.1111A-0	Resolver cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors; speedt…
8BCR0007.1111A-0	Resolver cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors; speedt…
8BCR0005.1111A-0	Resolver cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors; speedt…
