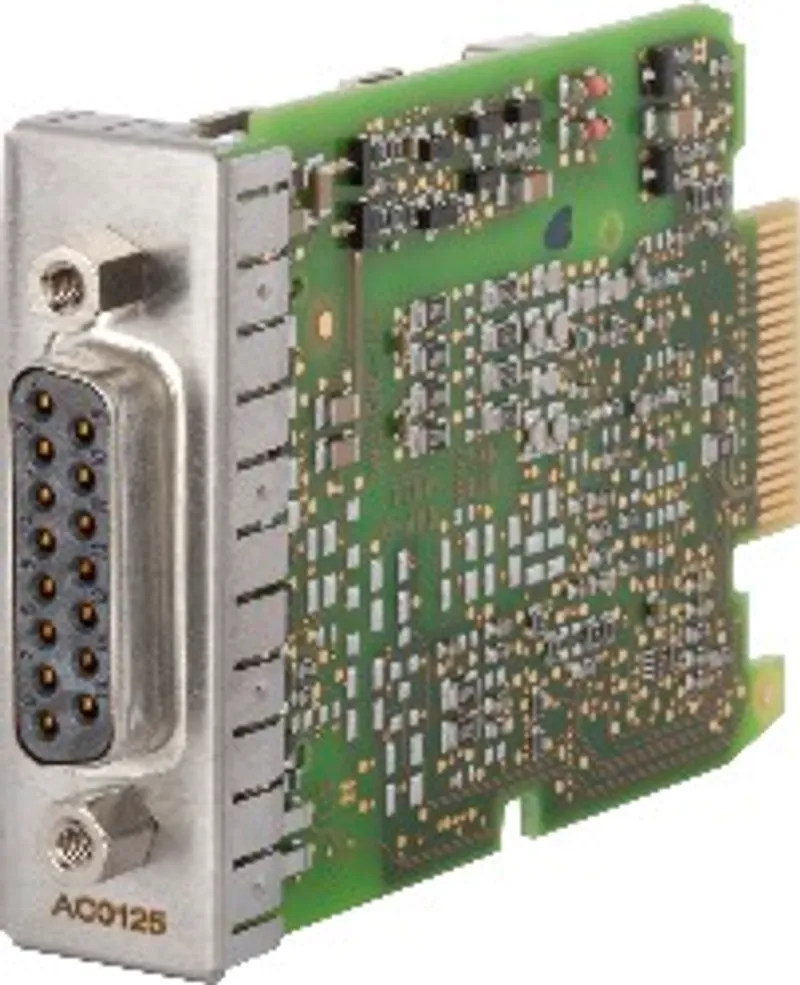

What is the B&R 8BAC0125.000-1?
Interface for evaluating sinusoidal output signals
Functions and protocols selected through configuration (using a higher-level controller)
SSI
SSI with evaluation of sinusoidal output signals
EnDat 2.1
BiSS
ACOPOSmulti plug-in module, SinCos EnDat 2.1/SSI/BiSS interface
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Module type | ACOPOSmulti plug-in module |
| B&R ID code | 0xD59E |
| Slot | Slots 1 and 2 |
| Max. power consumption | P Module [mW] = 25 V * (I Encoder [mA] * 0.4 + 25 mA) |
Encoder inputs
| Electrical isolation – Encoder - ACOPOSmulti | No |
| Sine/Cosine inputs – Signal transmission | Differential signals, symmetrical |
| Sine/Cosine inputs – Signal frequency (-3 dB) | DC up to 300 kHz |
| Sine/Cosine inputs – Signal frequency (-5 dB) | DC up to 400 kHz |
| Sine/Cosine inputs – Common-mode voltage | Max. ±7 V |
| Sine/Cosine inputs – Terminating resistor | 120 Ω |
| Sine/Cosine inputs – Resolution | 12-bit |
| Quantity | 1 |
| Module-side connection | 15-pin male DSUB connector |
| Status indicators | UP/DN LEDs |
| Encoder monitoring | Yes |
| Max. encoder cable length | 75 m |
Encoder power supply
| Output voltage | 5 V ±5% |
| Load capacity | 250 mA (note: An additional reserve of 57 mA is available for terminating resistors.) |
| Sense lines | 2, compensation of max. 2 x 0.7 V |
Position
| Resolution @ 1 V SS | Number of encoder lines * 5700 |
Synchronous serial interface
| Signal transmission | RS485 |
| Data transfer rate | Depends on the configured functionality (note: EnDat 2.1 ... 781.25 kbit/s, SSI ... 100 to 400 kbit/s, BiSS ... 1560 kbit/s.) |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% (note: ACOPOSmulti plug-in modules can only be used in an ACOPOSmulti inverter or power supply module; for the corresponding values, see the technical data of the respective ACOPOSmulti inverter or power supply module.) |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Accessories
Optional accessories (6)
| 8BCE0025.1111A-0 | EnDat 2.1 cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with Y-… |
| 8BCE0020.1111A-0 | EnDat 2.1 cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with Y-… |
| 8BCE0015.1111A-0 | EnDat 2.1 cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with Y-… |
| 8BCE0010.1111A-0 | EnDat 2.1 cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with Y-… |
| 8BCE0007.1111A-0 | EnDat 2.1 cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with Y-… |
| 8BCE0005.1111A-0 | EnDat 2.1 cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with Y-… |
