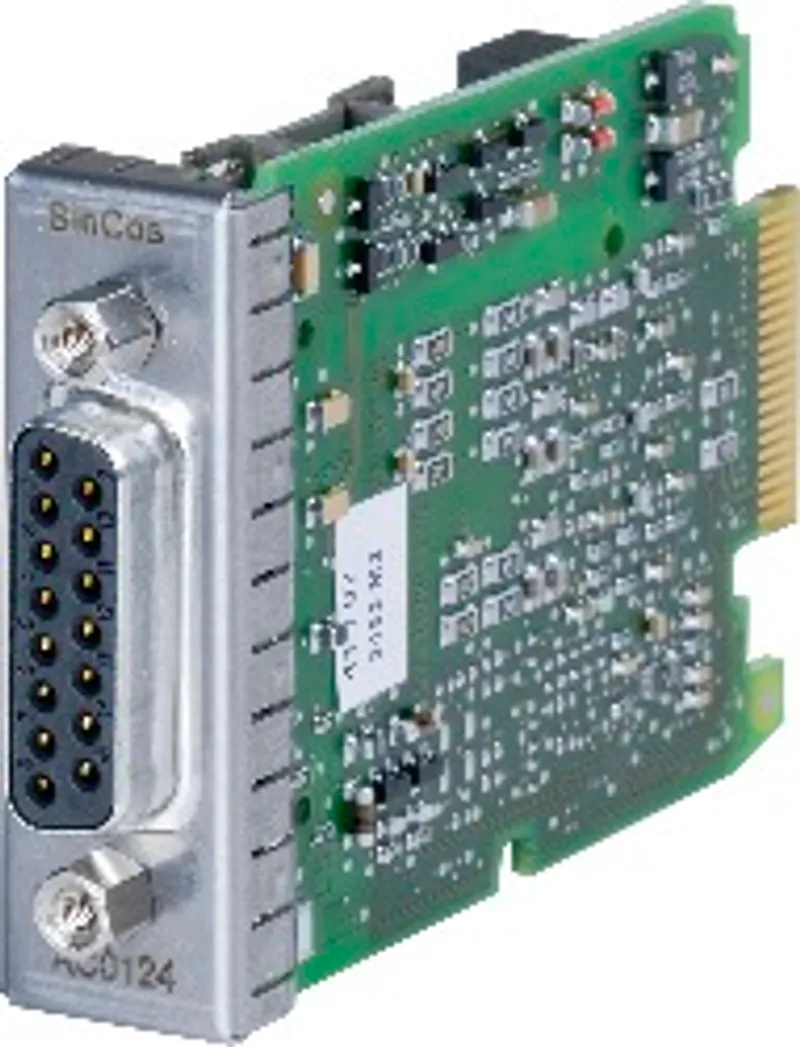

B&R 8BAC0124.000-1
SinCos interface for installation in ACOPOSmulti modules
- MPN
- 8BAC0124.000-1
- Category
- Plug-in modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8BAC0124.000-1?
SinCos interface for installation in ACOPOSmulti modules
Evaluation of incremental encoders with sinusoidal output signal
Encoder supply +5 V
Connection for limit switches
Connection for temperature sensor
ACOPOSmulti plug-in module, SinCos interface
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Module type | ACOPOSmulti plug-in module |
| B&R ID code | 0x258A |
| Slot | Slots 1 and 2 |
| Max. power consumption | P Module [mW] = 25 V * (I Encoder [mA] * 0.37 + 32 mA) |
Encoder connection
| Electrical isolation – Encoder - ACOPOSmulti | No |
| Module-side connection | 15-pin male DSUB connector |
| Status indicators | UP/DN LEDs |
| Encoder monitoring | Yes |
| Max. encoder cable length | 75 m |
Encoder inputs
| Sine/Cosine inputs – Signal transmission | Differential signals, symmetrical |
| Sine/Cosine inputs – Signal frequency (-3 dB) | DC up to 300 kHz |
| Sine/Cosine inputs – Signal frequency (-5 dB) | DC up to 400 kHz |
| Sine/Cosine inputs – Common-mode voltage | Max. ±7 V |
| Sine/Cosine inputs – Terminating resistor | 120 Ω |
| Sine/Cosine inputs – Resolution | 12-bit |
| Quantity | 1 |
Encoder power supply
| Protective measures – Overload-proof | Yes |
| Protective measures – Short-circuit proof | Yes |
| Output voltage | 5 V ±5% |
| Load capacity | 300 mA (note: An additional reserve of 12 mA exists for terminating resistors and limit switch inputs.) |
| Sense lines | 2, compensation of max. 2x 0.7 V |
Reference input
| Signal transmission | Differential signal, symmetrical |
| Differential voltage for low | ≤-0.2 V |
| Differential voltage for high | ≥+0.2 V |
| Common-mode voltage | Max. ±7 V |
| Terminating resistor | 120 Ω |
Position
| Resolution @ 1 V SS | Number of encoder lines * 5700 (note: This value does not correspond to the encoder resolution that must be configured in Automation Studio (16384 * number of encoder lines).) |
Limit switch inputs
| Electrical isolation – Input - ACOPOSmulti | No |
| Electrical isolation – Input - Input | No |
| Input voltage – Minimum | -12 V |
| Input voltage – Nominal | +5 V |
| Input voltage – Maximum | +20 V |
| Switching threshold – Low | <0.8 V |
| Switching threshold – High | >2 V |
| Quantity | 2 |
| Circuit | Source |
| Input resistance | 1470 Ω |
| Switching delay | Max. 100 μs |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Accessories
Optional accessories (6)
| 8BCS0025.1111A-0 | SinCos cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors; speedt… |
| 8BCS0020.1111A-0 | SinCos cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors; speedtec - Innovative… |
| 8BCS0015.1111A-0 | SinCos cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors; speedt… |
| 8BCS0010.1111A-0 | SinCos cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors; speedt… |
| 8BCS0007.1111A-0 | SinCos cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors; speedtec - Innovative… |
| 8BCS0005.1111A-0 | SinCos cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors; speedtec - Innovative… |
