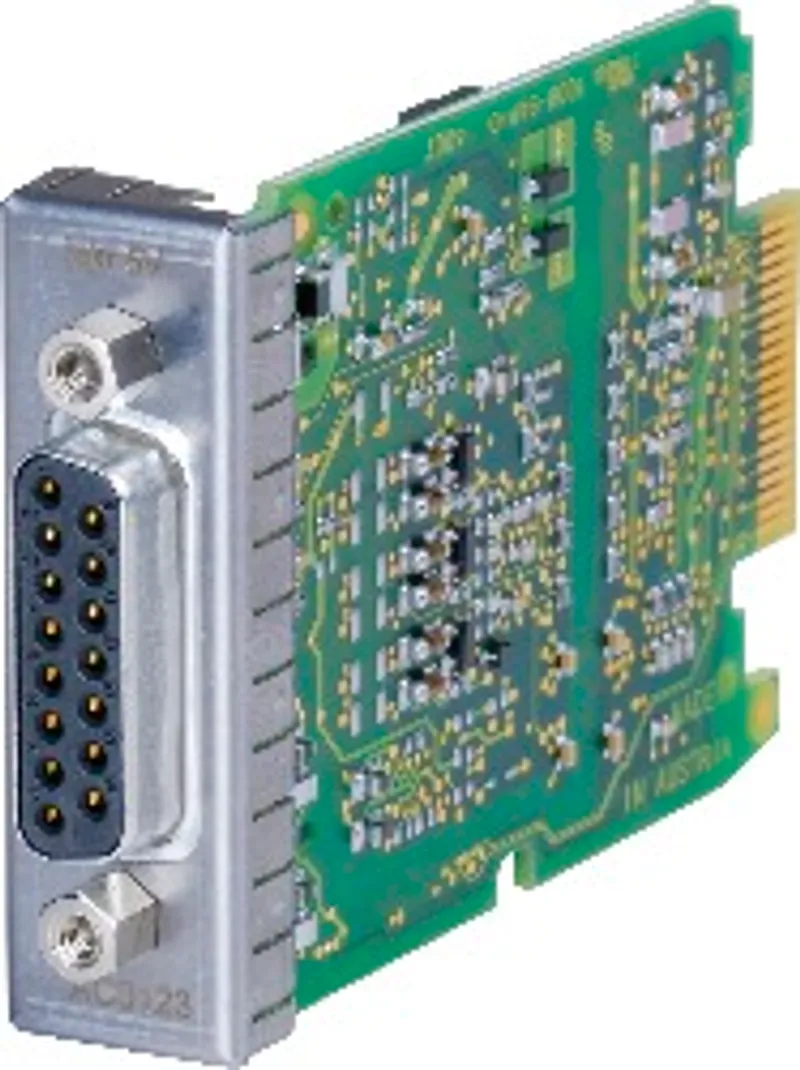

B&R 8BAC0123.001-1

Incremental encoder interface for installation in…

MPN: 8BAC0123.001-1
Category: Plug-in modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8BAC0123.001-1?

Incremental encoder interface for installation in ACOPOSmulti modules

Evaluation of incremental encoders with push, pull or push-pull outputs with no complementary signal

Evaluation of incremental encoders with symmetrical push-pull outputs that cannot handle such high loads

Encoder supply +5 V

Connection for temperature sensor

ACOPOSmulti plug-in module, incremental encoder interface for 5 V single-ended and 5 V differential signals

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOSmulti plug-in module
B&R ID code	0xA37E
Slot	Slots 1 and 2
Max. power consumption	P Module [mW] = 25 V * (I Encoder [mA] * 0.42 + 48 mA) (note: I Encoder ... Current consumption of the incremental encoder. The current consumption of the terminating resistors is already taken into account in the formula. A voltage drop on the encoder channel of max. 2x 1.5 V is also taken into account.)

Encoder connection

Electrical isolation – Encoder - ACOPOSmulti	Yes
Max. encoder cable length – Incremental encoders	25 m
Module-side connection	15-pin male DSUB connector
Status indicators	UP/DN LEDs

Encoder power supply 5 V

Sense lines – Quantity	2
Sense lines – Max. compensation	2x 1.5 V
Protective measures – Overload-proof	Yes
Protective measures – Short-circuit proof	Yes
Output voltage	5 V ±5%
Load capacity	350 mA (note: An additional reserve of 60 mA is available for terminating resistors.)

Inputs A, B, R

Single-ended signals – Input voltage for low	<1.0 V (against COM)
Single-ended signals – Input voltage for high	>2.4 V (against COM)
Single-ended signals – Maximum input voltage	-10 V / +13 V (against COM)
Differential signals – Differential voltage	±0.8 V to ±23 V (note: With open-circuit monitoring disabled, ±0.5 V is sufficient.)
Differential signals – Maximum input voltage	-10 V / +13 V (against COM)
Input resistance	See block diagram.

Incremental encoder operation

Signal form	Square wave pulse
Evaluation	4x
Input frequency	Max. 25 / 50 / 100 / 200 kHz (note: Input filter configurable using software.)
Counter frequency	Max. 100 / 200 / 400 / 800 kHz
Reference frequency	Max. 25 / 50 / 100 / 200 kHz
Distance between edges	Min. 2.6 / 1.3 / 0.7 / 0.4 µs (note: Automatically adjusted to the selected input filter.)

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C
