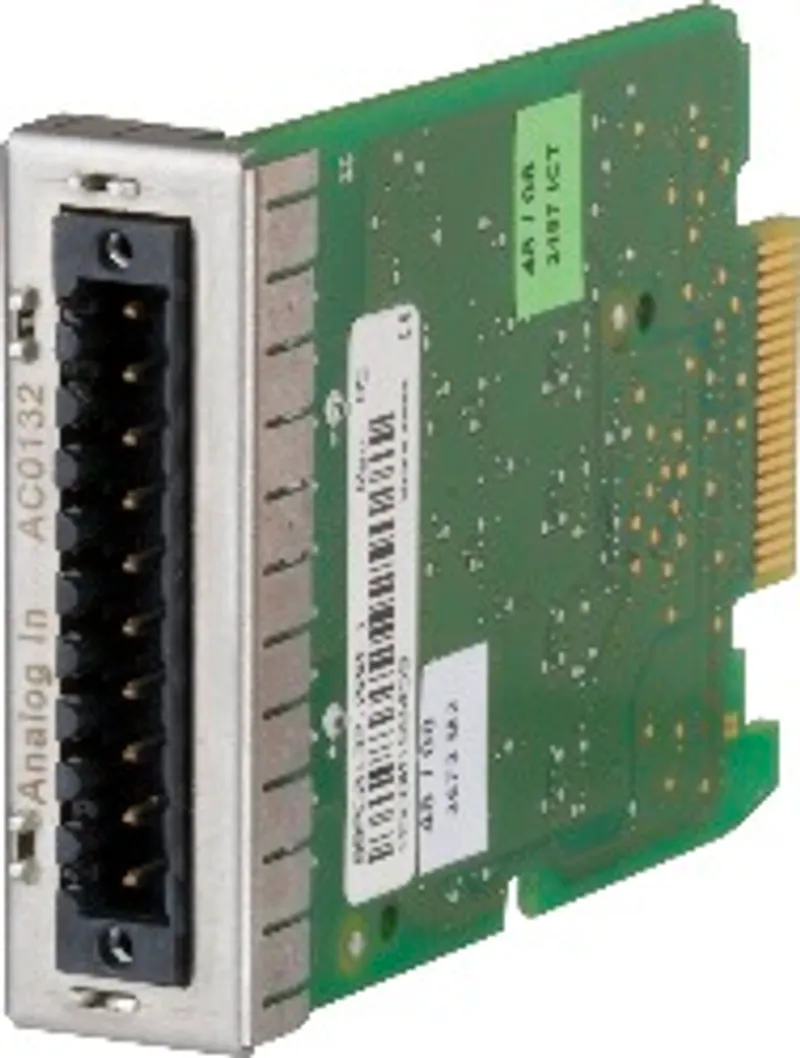

B&R 8BAC0132.000-1

Analog input module for installation in ACOPOSmulti…

MPN: 8BAC0132.000-1
Category: Plug-in modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8BAC0132.000-1?

Analog input module for installation in ACOPOSmulti modules

4 high-speed analog inputs ±10 V

ACOPOSmulti plug-in module, 4 analog inputs ±10 V

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOSmulti plug-in module
B&R ID code	0xA5CB
Slot	Slots 1 and 2
Max. power consumption	1.2 W

Module connection

Module-side connection	10-pin multipoint connector
Status indicators	UP LED (module OK) and DN LED (module NOT OK)

Analog inputs

Electrical isolation – Input - ACOPOSmulti	Yes
Electrical isolation – Input - Input	No
Input signal – Nominal	-10 to +10 V
Input signal – Maximum	-15 to +15 V
Common-mode rejection – DC	80 dB
Common-mode rejection – 50 Hz	80 dB
Quantity	4
Digital converter resolution	14-bit
Conversion time	<10 µs
Execution	Differential input
Operating modes	Cyclic measurement synchronous to 50 µs clock
Conversion procedure	Successive approximation
Input filter	Analog third-order low-pass filter / cutoff frequency: 30 kHz
Nonlinearity	±1 LSB
Differential input impedance	>10 MΩ

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Accessories

Required accessories (order separately)

8TB1110.21B-00	Terminal blocks — Cage clamp terminal block 10-pin, one-row, pitch: 3.5 mm, coding B: 0011111100
8TB1110.20B-00	Terminal blocks — 10-pin screw clamp terminal block, 1-row, pitch: 3.5 mm, numbered consecutively, coding B: 0011111100
