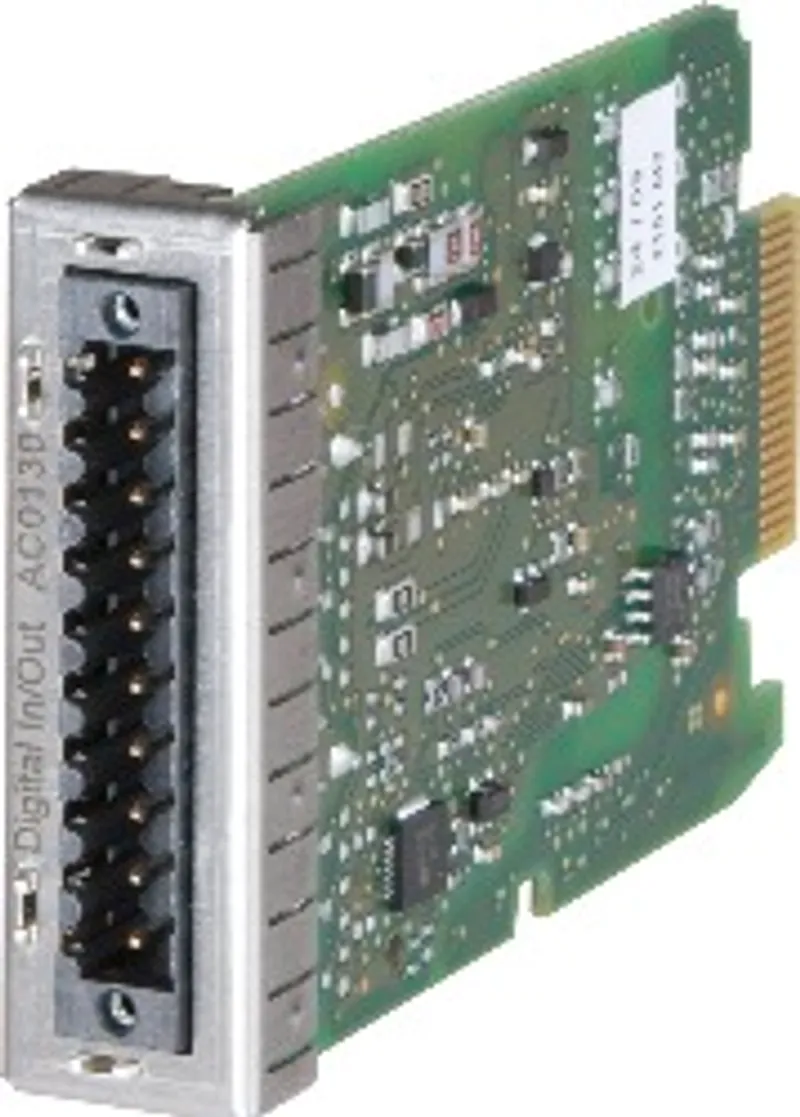

B&R 8BAC0130.000-1

Digital mixed module for installation in ACOPOSmulti…

MPN: 8BAC0130.000-1
Category: Plug-in modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare B&R parts? We buy surplus →

What is the B&R 8BAC0130.000-1?

Digital mixed module for installation in ACOPOSmulti modules

2 inputs, +24 VDC

2 high-speed outputs, +24 VDC

2 standard readable outputs, +24 VDC

ACOPOSmulti plug-in module, 2 digital outputs, 50 mA, max. 62.5 kHz, 2 digital outputs, 500 mA, max. 1.25 kHz, 2 digital inputs 24 VDC

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOSmulti plug-in module
B&R ID code	0xA9D6
Slot	Slot 2
Max. power consumption	800 mW

Module connection

Module-side connection	10-pin multipoint connector
Status indicators	UP LED (module OK) and DN LED (module NOT OK)

Digital inputs

Input voltage – Nominal	24 VDC
Input voltage – Maximum	30 VDC
Electrical isolation – Input - Input	No
Electrical isolation – Input - ACOPOSmulti	Yes
Quantity	2
Modulation compared to ground potential	Max. 30 V
Circuit	Sink
Input current at nominal voltage	Approx. 11 mA

Digital outputs

Continuous current – Outputs 1 - 2	Max. 50 mA
Continuous current – Outputs 3 - 4	Max. 500 mA
Short-circuit current at 24 V (until cutoff) – Outputs 1 - 2	Approx. 0.2 A
Short-circuit current at 24 V (until cutoff) – Outputs 3 - 4	Approx. 1.2 A
Electrical isolation – Output - ACOPOSmulti	Yes
Electrical isolation – Output - Output	No
Switching frequency (resistive load) – Outputs 1 - 2	Max. 62.5 kHz
Switching frequency (resistive load) – Outputs 3 - 4	Max. 1.25 kHz
Switching voltage – Minimum	18 VDC
Switching voltage – Nominal	24 VDC
Switching voltage – Maximum	30 VDC
Switching delay 0 → 1 and 1 → 0 – Outputs 1 - 2	Max. 1 µs
Switching delay 0 → 1 and 1 → 0 – Outputs 3 - 4	Max. 50 µs
Type – Outputs 1 - 2	Push-Pull
Type – Outputs 3 - 4	High side
Protective measures – Short-circuit proof	Yes
Protective measures – Overload-proof	Yes
Modulation compared to ground potential – Outputs 3 - 4	Max. 30 V
Quantity	4
Readable outputs	Yes

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Accessories

Required accessories (order separately)

8TB1110.21D-00	Terminal blocks — Cage clamp terminal block 10-pin, one-row, pitch: 3.5 mm, coding D: 1100110011
8TB1110.20D-00	Terminal blocks — 10-pin screw clamp terminal block, 1-row, pitch: 3.5 mm, numbered consecutively, coding D: 1100110011

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Certificates (5)

8BAC0130.000-1: frequently asked questions

When can 8BAC0130.000-1 be shipped?

8BAC0130.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8BAC0130.000-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8BAC0130.000-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BAC0130.000-1, subject to availability and destination.
