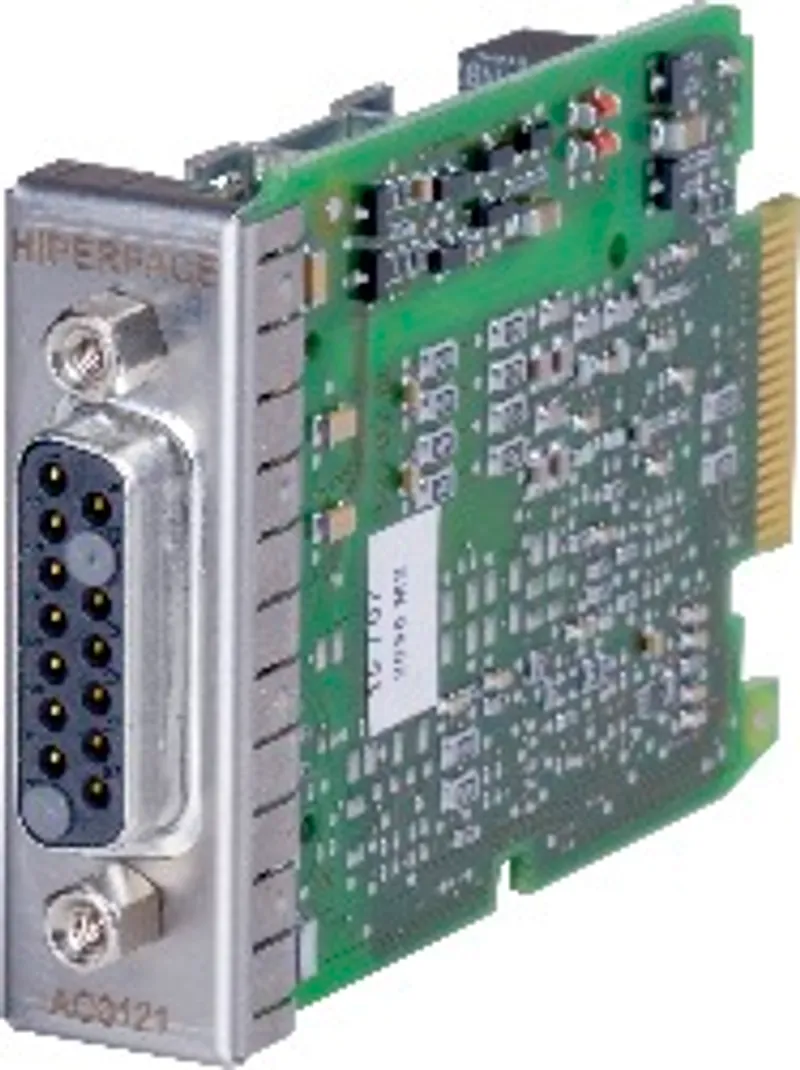

B&R 8BAC0121.000-1

HIPERFACE interface for installation in ACOPOSmulti modules

MPN: 8BAC0121.000-1
Category: Plug-in modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8BAC0121.000-1?

HIPERFACE interface for installation in ACOPOSmulti modules

Encoder monitoring

High resolution

ACOPOSmulti plug-in module, HIPERFACE interface

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOSmulti plug-in module
B&R ID code	0x261D
Slot	Slots 1 and 2
Max. power consumption	P Module [mW] = 25 V * ( I Encoder [mA] *0.48 + 50 mA)

Encoder connection

Electrical isolation – Encoder - ACOPOSmulti	No
Module-side connection	15-pin male DSUB connector
Status indicators	UP/DN LEDs
Encoder monitoring	Yes
Max. encoder cable length	75 m

Encoder inputs

Sine/Cosine inputs – Signal transmission	Differential signal, asymmetrical
Sine/Cosine inputs – Signal frequency	DC up to 200 kHz
Sine/Cosine inputs – Common-mode voltage	Max. ±7 V
Sine/Cosine inputs – Terminating resistor	120 Ω
Sine/Cosine inputs – Resolution	12-bit
Quantity	1

Encoder power supply

Protective measures – Overload-proof	Yes
Protective measures – Short-circuit proof	Yes
Output voltage	Typ. 10 V
Load capacity	130 mA (note: An additional reserve of 40 mA is available for terminating resistors.)
Sense lines	- (note: No sense lines are present since the supply voltage for the HIPERFACE encoder is permitted to be between 7 and 12 V.)

Position

Resolution @ 1 V SS

Number of encoder lines * 5700 (note: This value does not correspond to the encoder resolution that must be configured in Automation Studio (16384 * number of encoder lines).)

Asynchronous serial interface

Signal transmission	RS485
Data transfer rate	9600 bit/s

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C
