B&R 8BAC0120.001-2

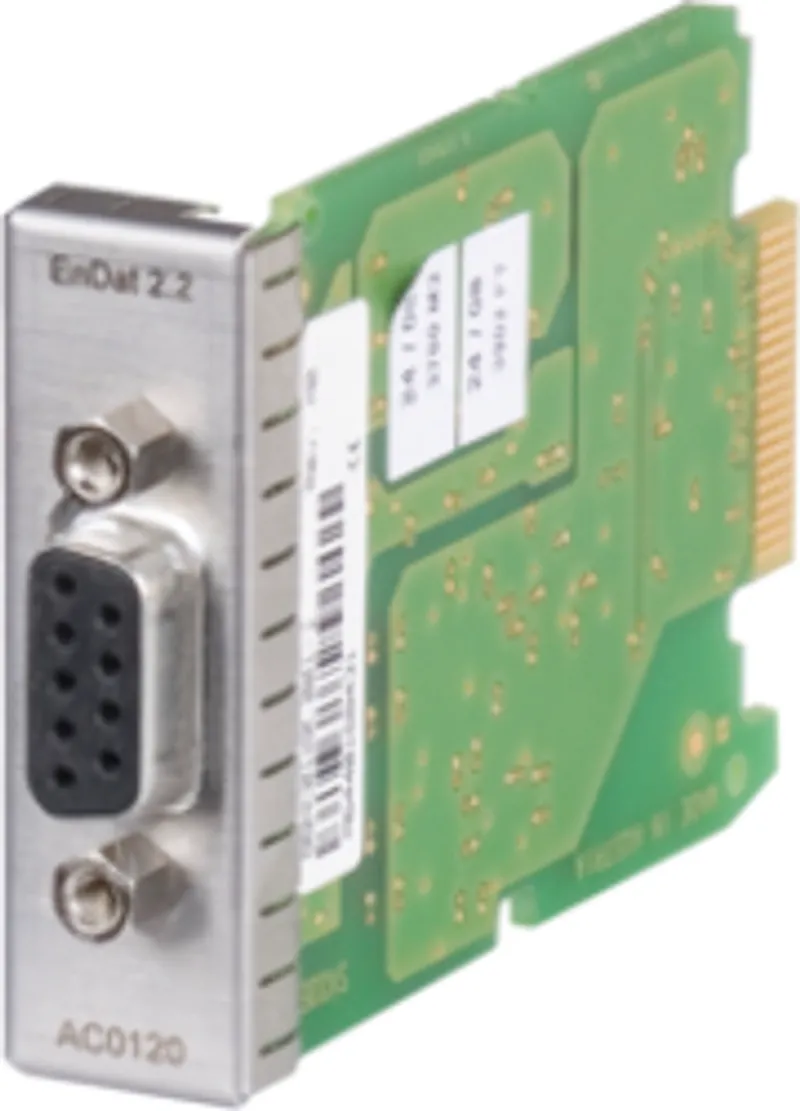

EnDat 2.2 encoder interface for installation in ACOPOSmulti…

MPN: 8BAC0120.001-2
Category: Plug-in modules

€232.14excl. VAT & shipping

In stock — 8 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8BAC0120.001-2?

EnDat 2.2 encoder interface for installation in ACOPOSmulti modules

Encoder monitoring

Embedded parameter chip when used with B&R motors

ACOPOSmulti plug-in module, EnDat 2.2 interface

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOSmulti plug-in module
B&R ID code	0xB0BF
Slot	Slots 1 and 2
Max. power consumption	P Module [mW] = 500 mW + 19 V * I Encoder [mA] (note: I Encoder ... Current consumption of the EnDat 2.2 encoder. The current consumption of the terminating resistors is already taken into account in the formula.)

Encoder connection

Electrical isolation – Encoder - ACOPOSmulti	No
Module-side connection	9-pin male DSUB connector
Status indicators	UP/DN LEDs
Encoder monitoring	Yes
Max. encoder cable length	100 m; Depends on the cross section of the power supply wires in the encoder cable

Encoder power supply

Protective measures – Overload-proof	Yes
Protective measures – Short-circuit proof	Yes
Output voltage	Typ. 12.5 V
Load capacity	350 mA

Synchronous serial interface

Signal transmission	RS485
Baud rate	6.25 Mbit/s

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Accessories

Required accessories (order separately)

8BCF0025.1221B-0	EnDat 2.2 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with series 615 built-…
8BCF0020.1221B-0	EnDat 2.2 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with series 615 built-…
8BCF0015.1221B-0	EnDat 2.2 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with series 615 built-…
8BCF0010.1221B-0	EnDat 2.2 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with series 615 built-…
8BCF0007.1221B-0	EnDat 2.2 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with series 615 built-…
8BCF0005.1221B-0	EnDat 2.2 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with series 615 built-…
