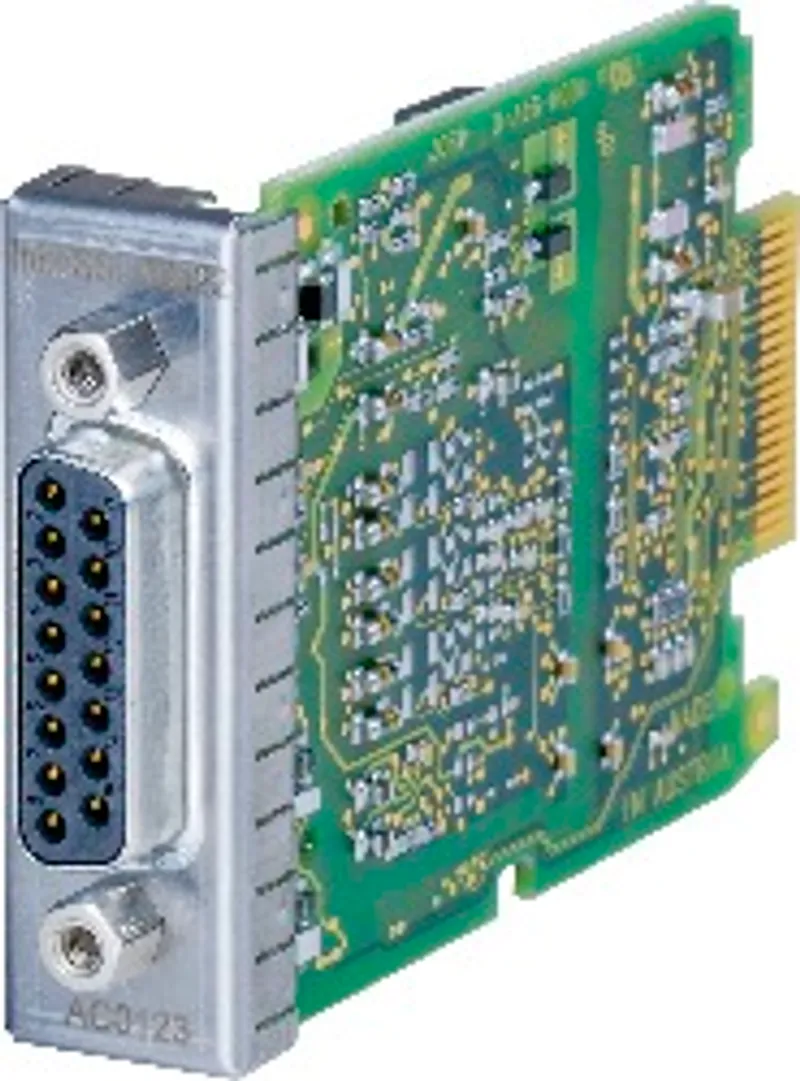

B&R 8BAC0123.000-1

Incremental encoder and SSI absolute encoder interface for…

MPN: 8BAC0123.000-1
Category: Plug-in modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8BAC0123.000-1?

Incremental encoder and SSI absolute encoder interface for installation in ACOPOSmulti modules

Evaluation of incremental/SSI encoders with output signals in accordance to RS422

Encoder monitoring

Encoder supply +5V and +24V

Connection for temperature sensor

Evaluation of tracer pins possible

ACOPOSmulti plug-in module, incremental encoder and SSI absolute encoder interface for RS422 signals

Specifications

General information

Max. power consumption – Encoder power supply 5 V	P Module [mW] = 25 V * ((I Encoder [mA] * 0.42) + 0.45) (note: I Encoder ... Current consumption of the incremental encoder. The current consumption of the terminating resistors is already taken into account in the formula. A voltage drop on the encoder cable of max. 2x 1.5 V is also taken into account.)
Max. power consumption – Encoder power supply 24 V	P Module [mW] = 25 V * (I Encoder [mA] + 0.45) (note: I Encoder ... Current consumption of the incremental encoder. The current consumption of the terminating resistors is already taken into account in the formula.)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOSmulti plug-in module
B&R ID code	0xA37D
Slot	Slots 1 and 2

Encoder connection

Electrical isolation – Encoder - ACOPOSmulti	Yes
Module-side connection	15-pin male DSUB connector
Status indicators	UP/DN LEDs
Encoder monitoring	Yes
Max. encoder cable length	100 m

Encoder power supply 5 V

Sense lines – Quantity	2
Sense lines – Max. compensation	2x 1.5 V
Protective measures – Overload-proof	Yes
Protective measures – Short-circuit proof	Yes
Output voltage	5 V ±5%
Load capacity	350 mA (note: An additional reserve of 60 mA is available for terminating resistors.)

Encoder power supply 24 V

Protective measures – Overload-proof	Yes
Protective measures – Short-circuit proof	Yes
Output voltage	24 V ±10%
Load capacity	300 mA (note: An additional reserve of 25 mA is available for terminating resistors.)
Sense lines	No

Inputs A, B, R, D

Signal transmission	RS422
Differential voltage	±0.5 V to ±7 V (note: With open-circuit monitoring disabled, ±0.2 V is sufficient.)
Common-mode voltage	-10 to +13 V
Terminating resistor	120 Ω (difference)

Incremental encoder operation

Signal form	Square wave pulse
Evaluation	4x
Input frequency	Max. 50 / 100 / 200 / 400 kHz (note: Input filter configurable using software.)
Counter frequency	Max. 200 / 400 / 800 / 1600 kHz
Reference frequency	Max. 50 / 100 / 200 / 400 kHz
Distance between edges	Min. 1.3 / 0.7 / 0.4 / 0.2 µs (note: Automatically adjusted to the selected input filter.)

SSI absolute encoder operation

Coding	Gray, binary
Baud rate	390 kbaud
Word size	Max. 31-bit
Differential voltage	Typ. 2.5 V

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C
