B&R 8BAC0120.000-1
EnDat 2.1 encoder interface for installation in ACOPOSmulti…
- MPN
- 8BAC0120.000-1
- Category
- Plug-in modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 8BAC0120.000-1?

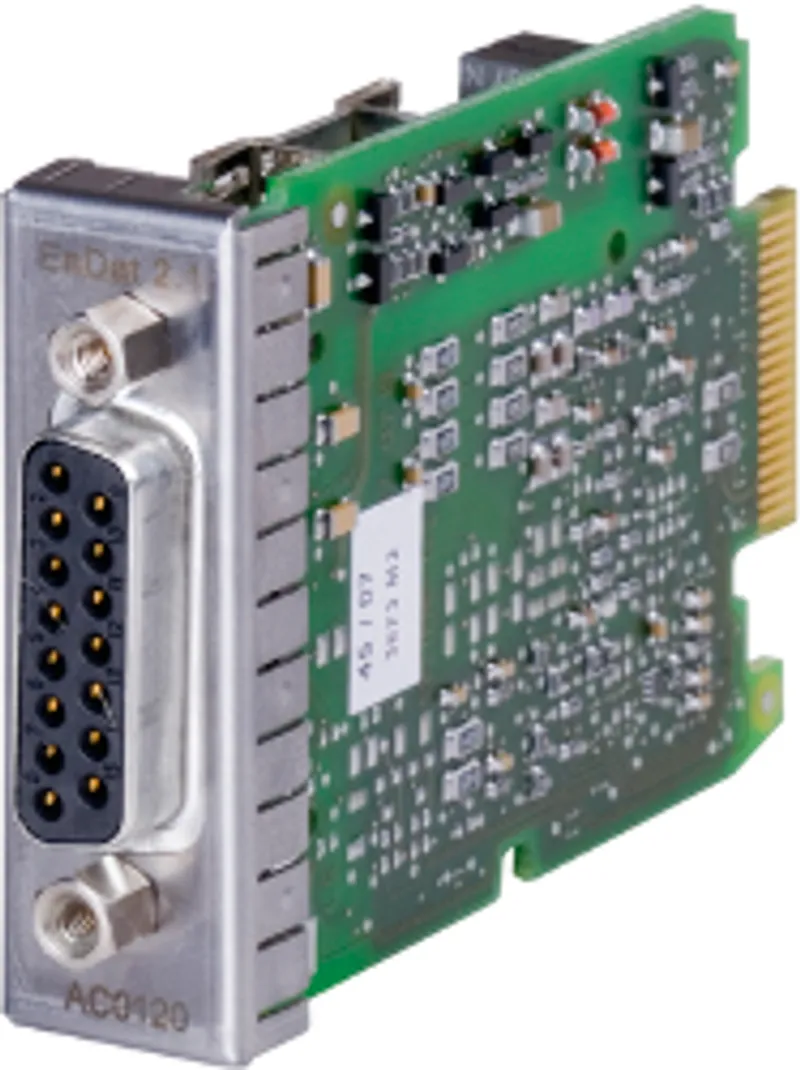

EnDat 2.1 encoder interface for installation in ACOPOSmulti modules
Encoder monitoring
High-precision analog signal processing
Embedded parameter chip when used with B&R motors
ACOPOSmulti plug-in module, EnDat 2.1 interface
Specifications
General information
| Power consumption – Depends on connected encoder | Yes |
| Power consumption – E0 ... EnDat single-turn, 512 lines | Max. 4 W |
| Power consumption – E1 ... EnDat multi-turn, 512 lines | Max. 4 W |
| Power consumption – E2 ... EnDat single-turn, 32 lines (inductive) | Max. 4 W |
| Power consumption – E3 ... EnDat multi-turn, 32 lines (inductive) | Max. 4 W |
| Power consumption – E4 ... EnDat single-turn, 512 lines | Max. 4 W |
| Power consumption – E5 ... EnDat multi-turn, 512 lines | Max. 4 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Module type | ACOPOSmulti plug-in module |
| B&R ID code | 0x22EF |
| Slot | Slots 1 and 2 |
Encoder inputs
| Electrical isolation – Encoder - ACOPOSmulti | No |
| Sine/Cosine inputs – Signal transmission | Differential signals, symmetrical |
| Sine/Cosine inputs – Signal frequency (-3 dB) | DC up to 300 kHz |
| Sine/Cosine inputs – Signal frequency (-5 dB) | DC up to 400 kHz |
| Sine/Cosine inputs – Common-mode voltage | Max. ±7 V |
| Sine/Cosine inputs – Terminating resistor | 120 Ω |
| Sine/Cosine inputs – Resolution | 12-bit |
| Quantity | 1 |
| Module-side connection | 15-pin male DSUB connector |
| Status indicators | UP/DN LEDs |
| Encoder monitoring | Yes |
| Max. encoder cable length | 75 m |
Encoder power supply
| Output voltage | 5 V ±5% |
| Load capacity | 250 mA (note: An additional reserve of 57 mA is available for terminating resistors.) |
| Sense lines | 2, compensation of max. 2x 0.7 V |
Position
| Resolution @ 1 V SS | Number of encoder lines * 5700 (note: This value does not correspond to the encoder resolution that must be configured in Automation Studio (16384 * number of encoder lines).) |
Synchronous serial interface
| Signal transmission | RS485 |
| Data transfer rate | 781.25 kbit/s |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
No matching specifications
Accessories
Optional accessories (6)
| 8BCE0025.1111A-0 | EnDat 2.1 cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with Y-… |
| 8BCE0020.1111A-0 | EnDat 2.1 cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with Y-… |
| 8BCE0015.1111A-0 | EnDat 2.1 cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with Y-… |
| 8BCE0010.1111A-0 | EnDat 2.1 cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with Y-… |
| 8BCE0007.1111A-0 | EnDat 2.1 cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with Y-… |
| 8BCE0005.1111A-0 | EnDat 2.1 cables — UL/CSA listed; Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with Y-… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
8BAC0120.000-1: frequently asked questions
When can 8BAC0120.000-1 be shipped?
8BAC0120.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BAC0120.000-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BAC0120.000-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BAC0120.000-1, subject to availability and destination.
