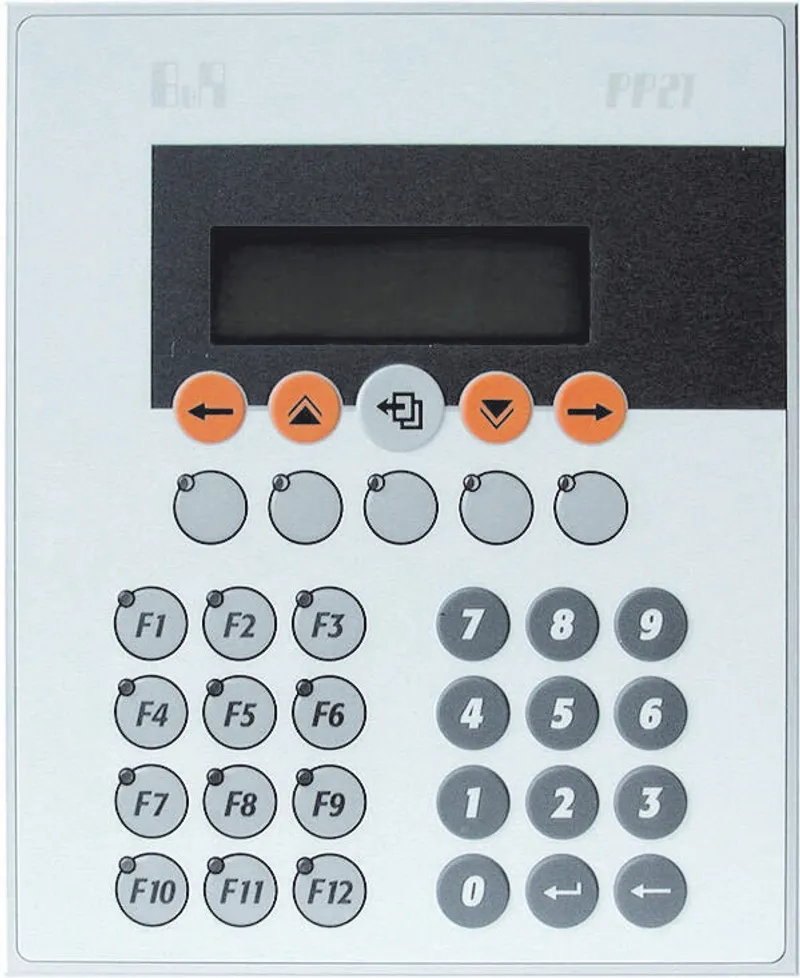

B&R 4P0420.00-490
Power Panel PP21 LCD display 4x 20 characters, backlight
- MPN
- 4P0420.00-490
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 4P0420.00-490?
Power Panel PP21 LCD display 4x 20 characters, backlight, 34 function keys, compatible with 2003 CPU, 700 kB SRAM, 1.4 MB FlashPROM, 1 PCMCIA slot, 1 RS232 interface, 1 CAN interface: electrically isolated, network-capable, 6 slots for screw-in modules, 10 digital inputs 24 VDC, 8 digital outputs 24 VDC, 0.4 A, IP65 protection (front), 155 x 190 mm (W x H), 24 VDC. Order TB712 terminal blocks separately!
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
Controller
| Real-time clock – Accuracy | Resolution 1 s |
| Standard memory – System PROM | 600 kB FlashPROM |
| Standard memory – User PROM | 1.4 MB FlashPROM |
| Standard memory – User RAM | 700 kB SRAM |
| Voltage monitoring | The internal power supply is monitored for overvoltage and undervoltage. |
| Typical instruction cycle time | 0.5 µs (average value with 70% bit processing and 30% analog processing) |
| Additional I/O processor | Takes over operation of the I/O data points |
Display
| Backlight – Type | LED |
| Type | Monochrome LCD |
| Resolution | 4 x 20 characters |
Interfaces
| Interface IF1 – Type | RS232 |
| Interface IF1 – Variant | 9-pin male DSUB connector |
| Interface IF1 – Electrical isolation | No |
| Interface IF1 – Max. baud rate | 115.2 kbit/s |
| Interface IF2 – Type | CAN |
| Interface IF2 – Variant | 9-pin male DSUB connector |
| Interface IF2 – Electrical isolation | Yes |
| Interface IF2 – Max. transfer rate | 500 kbit/s |
Digital inputs
| Electrical isolation – Group isolation | Input group - Output group |
| Electrical isolation – Channel - Bus | Yes |
| Electrical isolation – Channel - Channel | No |
| Quantity | 10 |
| Nominal voltage | 24 VDC |
| Input circuit | Sink |
| Input filter | <1 ms |
| Additional functions | 4x TPU |
| Input current at nominal voltage | Approx. 4 mA |
Digital outputs
| Electrical isolation – Group isolation | Input group - Output group |
| Electrical isolation – Channel - Bus | Yes |
| Electrical isolation – Channel - Channel | No |
| Quantity | 8 + 1 dry relay contacts |
| Nominal voltage | 24 VDC |
| Nominal output current | 0.4 A |
| Total nominal current | 3.2 A |
| Output circuit | Source |
| Output protection | Overload protection |
| Internal protective circuit | Yes |
Keys
| Function keys | 10 with LED (yellow) |
| Soft keys | 12 with LED (yellow) |
| Number block | 12 |
Power supply unit
| Nominal voltage | 24 VDC |
| Power consumption | Max. 20 W |
| Output power for screw-in modules and PC card interface | 10 W |
Peripherals
| PC card slot – FlashPROM | Max. 4 MB |
| PC card slot – SRAM | Max. 4 MB |
| PC card slot – Quantity | 1 |
| Slots – For B&R 2003 screw-in modules | 6 |
| Slots – For CAN bus communication | 1 |
| Slots – For TPU | 3 |
| Slots – For serial asynchronous communication | 3 |
| System bus for expansions | No |
Operating conditions
| Degree of protection per EN 60529 | IP65 (front) |
Ambient conditions
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -20 to 60°C |
| Relative humidity – Operation | 10 to 90% |
| Relative humidity – Storage | 5 to 95% |
Mechanical properties
| Dimensions – Width | 155 mm |
| Dimensions – Height | 190 mm |
| Dimensions – Depth | 84.4 mm |
| Weight | 1.25 kg |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 4A0035.00-000 | Legend strips — Panel A4 slide in legends for PP21 (4P0420.00-490); 2 sheets (for 10 devices), with CorelDraw file. |
| 7TB712.91 | Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
| 7TB712.9 | Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
Optional accessories (24)
| 4A0006.00-000 | Batteries — Lithium battery, 3 V / 950 mAh, button cell |
| 0AC201.91 | Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell |
| 0MC211.9 | PCMCIA cards — PC card memory card, 2 MB SRAM |
| 0MC111.9-1 | PCMCIA cards — PC card memory card, 2 MB FlashPROM |
| 7NC161.7 | Undefined — 2003 encoder module, input frequency 100 kHz, incremental or absolute, 32-bit, encoder power supply 5 VDC or 24 VDC, screw-in module |
| 7IF361.70-1 | Undefined — 2003 interface module, 1 RS485 interface, electrically isolated and network-capable, transfer protocol: PROFIBUS DP, screw-in module |
| 7IF321.7 | Undefined — 2003 interface module, 1 RS485/RS422 interface, electrically isolated, network-capable, screw-in module |
| 7IF311.7 | Undefined — 2003 interface module, 1 RS232 interface, screw-in module |
| 7DO138.70 | Undefined — 2003 digital output module, 8 outputs 24 VDC, 0.5 A, short-circuit proof, thermal overload protection, screw-in module, order 1x terminal b… |
| 7DO135.70 | Undefined — 2003 digital output module, 4 FET outputs 12 to 24 VDC, 0.1 A, screw-in module, order 1x terminal block TB712 separately! |
| 7DI140.70 | Undefined — 2003 digital input module, 10 inputs 24 VDC, sink, 2 inputs usable for event counter operation or direction-dependent position detection, i… |
| 7DI138.70 | Undefined — 2003 digital input module, 10 inputs 24 VDC, sink, 2 inputs usable for event counter operation, input frequency 20 kHz, screw-in module, or… |
| 7DI135.70 | Undefined — 2003 digital input module, 4 inputs 24 VDC, sink, incremental encoder operation: 50 kHz, event counter operation: 100 kHz, 1 comparator out… |
| 7AT664.70 | Undefined — 2003 analog input module, 4 inputs, thermocouples, -270 to +1372°C, screw-in module, order 1x terminal block TB712 separately! |
| 7AT352.70 | Undefined — 2003 analog input module, 2 inputs, PT100 (3-wire connections), -200 to +850°C, screw-in module, order 1x terminal block TB712 separately! |
| 7AT324.70 | Undefined — 2003 analog input module, 4 temperature inputs (2-wire connections), KTY10 -50 to +150°C, KTY84 -40 to +300°C, Pt100 -200 to +850°C, Pt1000… |
| 7AO352.70 | Undefined — 2003 analog output module 2 outputs, ±10 V or 0 to 20 mA, 12-bit, screw-in module, order 1x terminal block TB712 separately! |
| 7AM351.70 | Undefined — 2003 analog mixed module, 1 input, ±10 V, 16-bit, 1 output, ±10 V, 16-bit, screw-in module, order 1x terminal block TB712 separately! |
| 7AI774.70 | Undefined — 2003 analog input module, 4 inputs, 0 to 20 mA, 12-bit, screw-in module, order 1x terminal block TB712 separately! |
| 7AI354.70 | Undefined — 2003 analog input module, 4 inputs , ±10 V, 12-bit + sign, screw-in module, order 1x terminal block TB712 separately! |
| 7AI351.70 | Undefined — 2003 analog input module, 1 input, ±10 V or 0 to 20 mA 12-bit + sign, screw-in module, order 1x terminal block TB712 separately! |
| 7AI294.7 | Undefined — 2003 analog input module, 4 inputs, potentiometer displacement gauge, 13-bit, screw-in module |
| 7AI261.7 | Undefined — 2003 analog input module, 1 strain gauge input, 24-bit converter resolution, screw-in module |
| 4IF370.7 | Undefined — Power Panel interface module 1 CAN interface Electrically isolated, network-capable Screw-in module |
