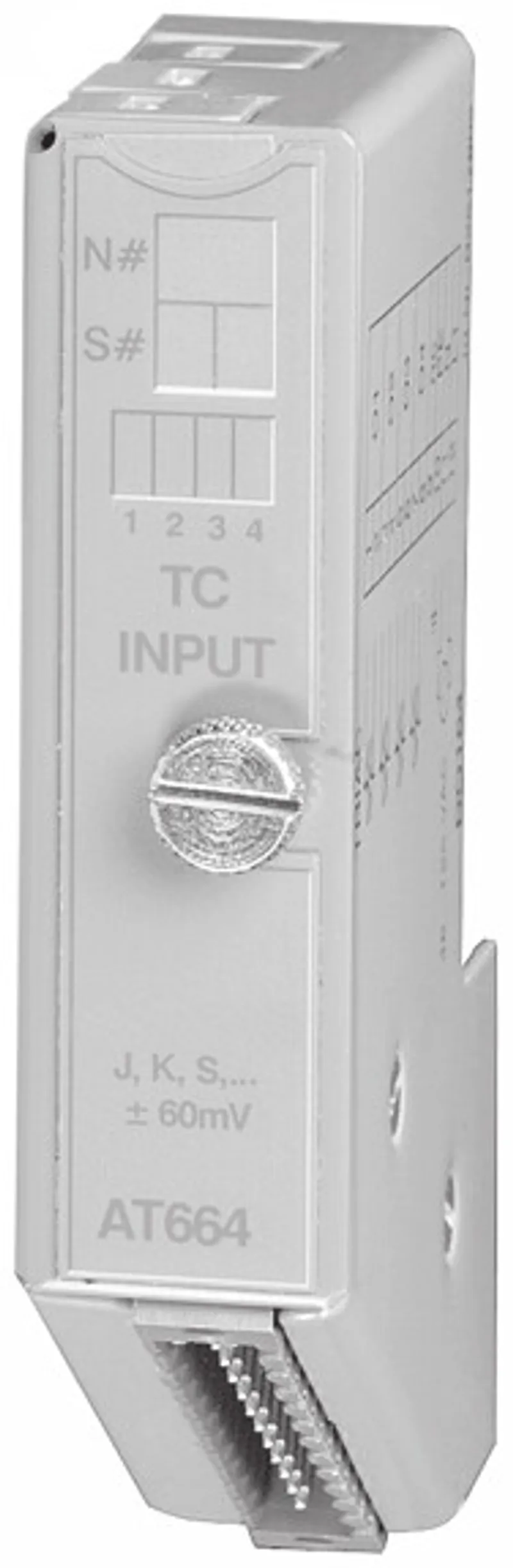

B&R 7AT664.70
2003 analog input module, 4 inputs, thermocouples
- MPN
- 7AT664.70
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 7AT664.70?
2003 analog input module, 4 inputs, thermocouples, -270 to +1372°C, screw-in module, order 1x terminal block TB712 separately!
Specifications
General Information
| Short Description | 2003 Analog Input Module, 4 inputs, thermocouples, -270 to +1372 °C, screw-in module, Order TB712 terminal block separately! |
| C-UL-US Listed | Yes |
| B&R ID Code | $0C |
| Slot | AF101 adapter module, CP interface |
Static Characteristics
| Module Type | B&R 2003 screw-in module |
| Sensor | Thermocouples |
| Digital Converter Resolution | 16 Bit |
| Measurement Range – Sensor Temperature | Depending on sensor type |
| Measurement Range – FeCuNi: Type J | -210 to +1200 °C |
| Measurement Range – NiCrNi: Type K | -270 to +1372 °C |
| Measurement Range – PtRhPt: Type S | -50 to +1768 °C |
| Measurement Range – Terminal Temperature | -55 to +125 °C |
| Measurement Range – Raw Value | ±65534 µV |
| Resolution – Sensor Temperature Output | 0.1 °C / LSB |
| Resolution – Sensor Temperature Output | 0.1 °C / LSB |
| Resolution – Raw Value Output | 2 µV / LSB |
| Terminal Temperature Compensation | Yes |
| Maximum Error at 25 °C | ±(50 µV + 0.001 * UTH) [µV] UTH ... Thermal Voltage in µV |
| Maximum Temperature Drift per °C | ±(1.7 µV +0.0001 * UTH) [µV] UTH ... Thermal Voltage in µV |
| Terminal Temperature Error | ±1 °C after 10 min |
| Conversion of Measurement Values to | Automatic in the module |
| Power Consumption | Max. 0.4 W |
Operating Characteristics
| Electrical Isolation – Input - PCC | No |
| Electrical Isolation – Input - Input | No |
Mechanical Properties
| Dimensions | B&R 2003 screw-in module |
Accessories
Required accessories (order separately)
| 7TB712.91 | Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
| 7TB712.9 | Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
