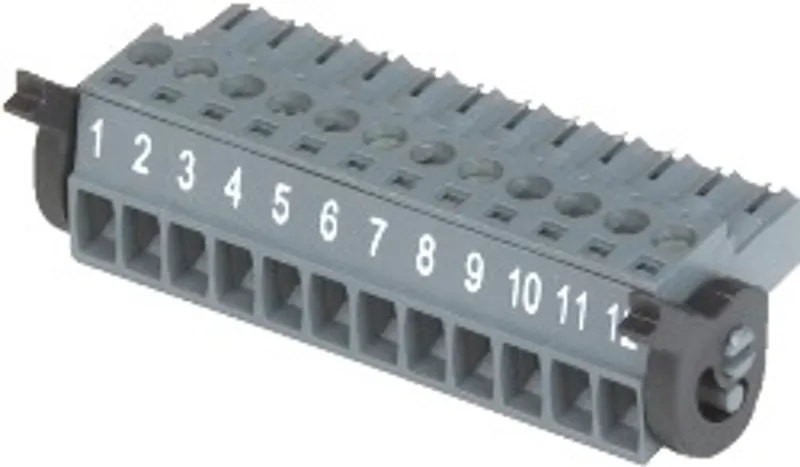

B&R 7TB712.9
The single-row, 12-pin 7TB712 terminal block is to…
- MPN
- 7TB712.9
- Category
- Terminal blocks
€6.36excl. VAT & shipping
In stock — 56 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 7TB712.9?
The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the terminal block.
Specifications
Terminal block
| Connection cross section – AWG wire | 28 to 14 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.20 to 1.50 mm² |
| Connection cross section – Single-wire | 0.20 to 1.50 mm² |
| Connection cross section – Fine-stranded wires | 0.20 to 1.50 mm² |
| Connection cross section – With wire end sleeve | 0.20 to 1.50 mm² |
| Note | Mechanical removal aid ; Nominal data per UL |
| Number of pins | 12 |
| Type of terminal block | Screw clamp terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Pitch | 3.5 mm |
Electrical properties
| Nominal voltage | 300 V |
| Nominal current | 10 A / contact (note: The respective limit data of the I/O modules must be taken into account!) |
| Contact resistance | ≤4.2 mΩ |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
7TB712.9: frequently asked questions
When can 7TB712.9 be shipped?
7TB712.9 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7TB712.9 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7TB712.9 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7TB712.9, subject to availability and destination.
