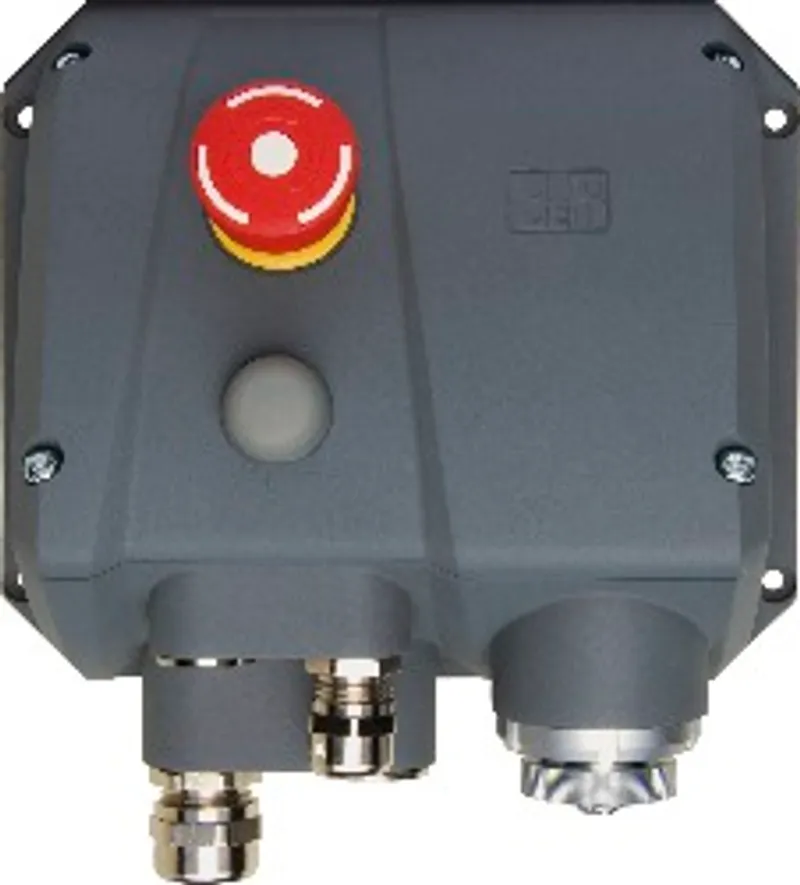

B&R 4MPCBX.0000-00
Compatible for connections with Mobile Panel 7x00
- MPN
- 4MPCBX.0000-00
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 4MPCBX.0000-00?
Compatible for connections with Mobile Panel 7x00
Emergency stop circuit not interrupted when disconnecting and connecting the Mobile Panel during operation (hot plugging function)
IP65 protection
Classification according to EN ISO 13849-1:2015 category 3, performance level (PL) d
Circular connector with push-pull locking mechanism
Emergency stop switch
Hot plug button
3x optional cable outlets
Compact dimensions
Robust construction
Connection box 4MPCBX.0000-00 makes it possible to set up a configuration where a Mobile Panel can be operated at various system connection points while still remaining integrated in the emergency stop circuit.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – Functional safety | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
Keys
| Hot plug button | Yes (2 normally closed contacts) |
| Emergency stop | Yes (2 normally closed contacts) |
Connector
| Internal connector | Key switch or pushbutton; Emergency stop; Enable switch; RS232; Power supply; CAN; Ethernet (note: For the box cable.) |
| Additional connectors | Slot ID (monitoring contacts); Enable switch; Key switch or pushbutton; Emergency stop contacts; Power supply |
| Push-pull connector | For connecting the Mobile Panel |
Electrical properties
| Nominal voltage | 18 to 30 VDC (note: IEC 61010-2-201 requirements must be observed.) |
| Nominal current | 150 mA |
| Power consumption | Approx. 2 W |
Operating conditions
| Degree of protection per EN 60529 | IP65 (only with installed screw plugs and protective cover or with connected Mobile Panel) |
Ambient conditions
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | 0 to 95%, non-condensing |
| Relative humidity – Storage | 0 to 95%, non-condensing |
| Relative humidity – Transport | 0 to 95%, non-condensing |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 30 g, 15 ms |
| Shock – Transport | 30 g, 15 ms |
Mechanical properties
| Housing – Material | GK-AISi11Mg (gravity die casting) |
| Housing – Coating | Powder-coated RAL 7012, fine structure |
| Cover plate – Material | GK-AlSi9Mg (gravity die casting) (note: The protective cover must be connected if no Mobile Panel is connected.) |
| Dimensions – Width | 172.5 mm |
| Dimensions – Height | 158.7 mm |
| Dimensions – Depth | 81.7 mm |
| Weight | Approx. 1600 g (without attachment cable) |
Accessories
Required accessories (order separately)
| 5CAMPB.0100-10 | Accessories — A box cable establishes the electrical connection between the control cabinet and connection box 4MPCBX.0000-00. It includes lines for the… |
| 5CAMPB.0050-10 | Accessories — Mobile Panel box cable - With wire end sleeves - With connector contacts - 5 m |
