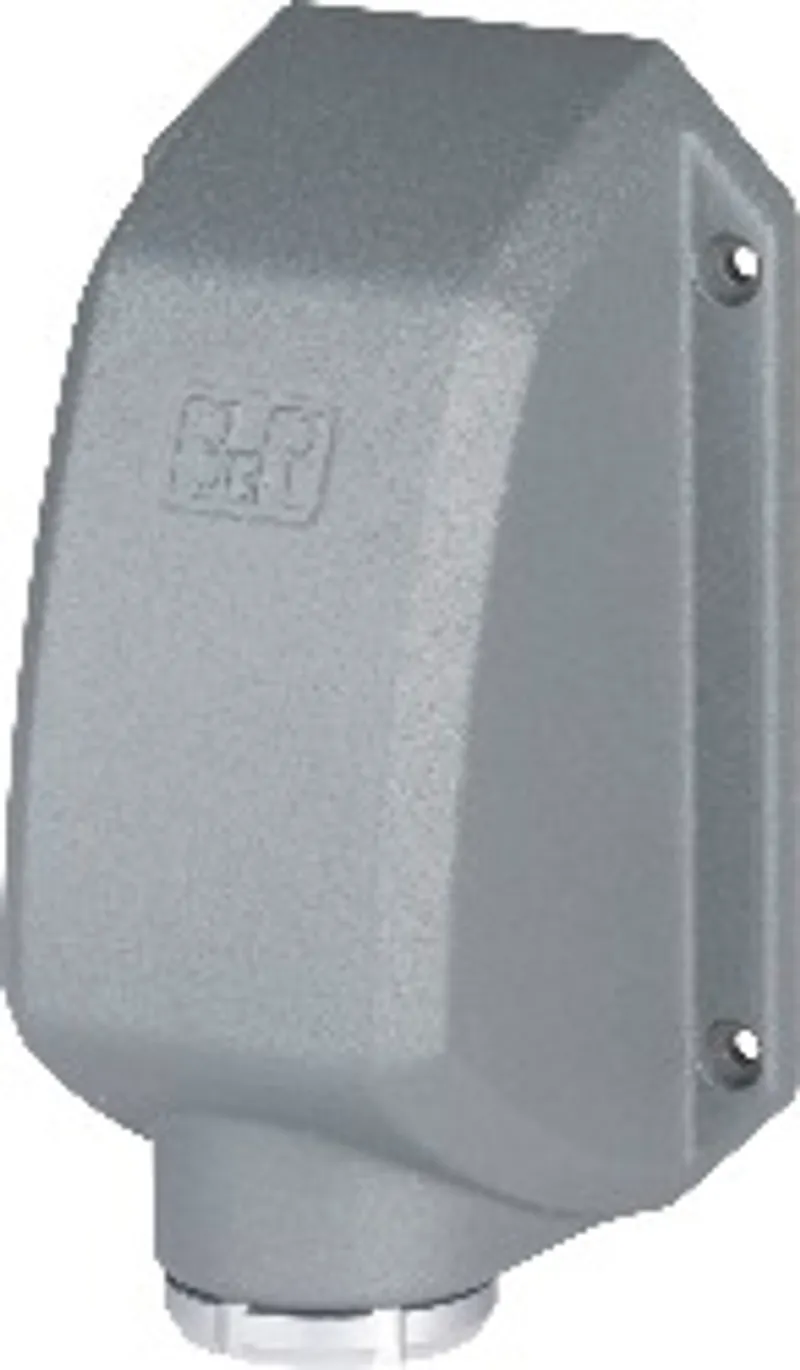

B&R 4MPCBX.0001-00
Vertical connection of the Mobile Panel attachment cable to…
- MPN
- 4MPCBX.0001-00
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 4MPCBX.0001-00?
Vertical connection of the Mobile Panel attachment cable to the control cabinet
IP65 protection
Compact dimensions
Robust construction
Connection box 4MPCBX.0001-00 is a mounting adapter and provides a connection point with a vertical outlet of the control cabinet cable but does not have emergency stop hot plugging functionality.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
Keys
| Hot plug button | No |
| Emergency stop | No |
Operating conditions
| Degree of protection per EN 60529 | IP65 (only with protective cover or with connected Mobile Panel) |
Mechanical properties
| Housing – Material | GK-AISi11Mg (gravity die casting) |
| Housing – Coating | Powder-coated RAL 7012, fine structure |
| Cover plate – Material | GK-AlSi9Mg (gravity die casting) |
| Dimensions – Width | 90 mm |
| Dimensions – Height | 74.2 mm |
| Dimensions – Depth | 150 mm |
| Weight | Approx. 500 g |
Accessories
Optional accessories (3)
| 5CAMPP.0001-10 | Accessories — This protective cover protects Mobile Panel control cabinet cable connectors and connection box connectors, with each cover secured to the… |
| 5CAMPC.0020-11 | Control cabinet cables — A straight-through control cabinet cable is required for the wiring inside the control cabinet.The pinout of the Ethernet connector makes i… |
| 5CAMPC.0020-10 | Control cabinet cables — A crossover control cabinet cable is required for the wiring inside the control cabinet.The pinout of the Ethernet connector (crossover) ma… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
4MPCBX.0001-00: frequently asked questions
When can 4MPCBX.0001-00 be shipped?
4MPCBX.0001-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4MPCBX.0001-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4MPCBX.0001-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4MPCBX.0001-00, subject to availability and destination.
