B&R 7NC161.7

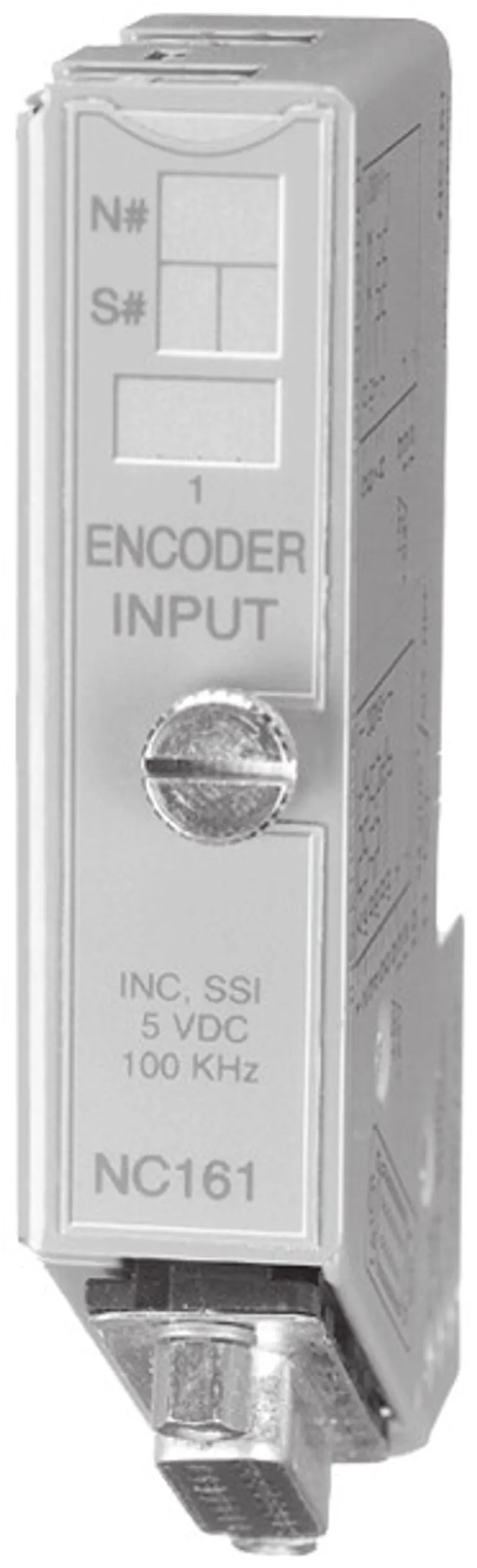

2003 encoder module, input frequency 100 kHz

MPN: 7NC161.7

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 7NC161.7?

2003 encoder module, input frequency 100 kHz, incremental or absolute, 32-bit, encoder power supply 5 VDC or 24 VDC, screw-in module

Specifications

General Information

Short Description	2003 encoder module, input frequency 100 kHz, incremental or absolute, 32 bit, encoder supply 5 VDC or 24 VDC, screw-in module
C-UL-US Listed	Yes
B&R ID Code	$10
Module Type	B&R 2003 screw-in module
Slot	AF101 adapter module, CP interface
Power Consumption	0.3 W + I encoder * 5.4 V
General Information	Connection using 15 pin D-type socket incremental or SSI absolute encoder
Incremental Encoder – Signal Form	Square wave pulses
Incremental Encoder – Evaluation	4-fold
Incremental Encoder – Input Frequency	Max. 100 kHz
Incremental Encoder – Counter Frequency	Max. 400 kHz
Incremental Encoder – Phase Shift between	90° ±15°
Counter Size	32 Bit
Inputs	A, A\, B, B\, R, R\
Input Level	5 V (differential input)
SSI Absolute Encoder – Coding	Gray, Binary
SSI Absolute Encoder – Word Size	Max. 31 Bit
SSI Absolute Encoder – Baudrate	100 kBaud
SSI Absolute Encoder – Data Input Level	5 V (differential signal)
SSI Absolute Encoder – Clock Output Level	5 V (differential signal)
SSI Absolute Encoder – Max. Signal Delay	≤2.5 µs
Additional Inputs +24 VDC – Reference Enable Switch	Connected using terminal block
Additional Inputs +24 VDC – Electrical Isolation	Yes
Additional Inputs +24 VDC – Reference Pulse	Connected using 15 pin D-type socket (pin 10 and 11)
Additional Inputs +24 VDC – Electrical Isolation	Yes
Output Voltage	+5 VDC / max. 500 mA without external feed
Protection	Short Circuit and Overload Protection
External Supply Voltage	+24 VDC / max. 300 mA
Protection	Short circuit protection

Mechanical Characteristics

Dimensions

B&R 2003 screw-in module
